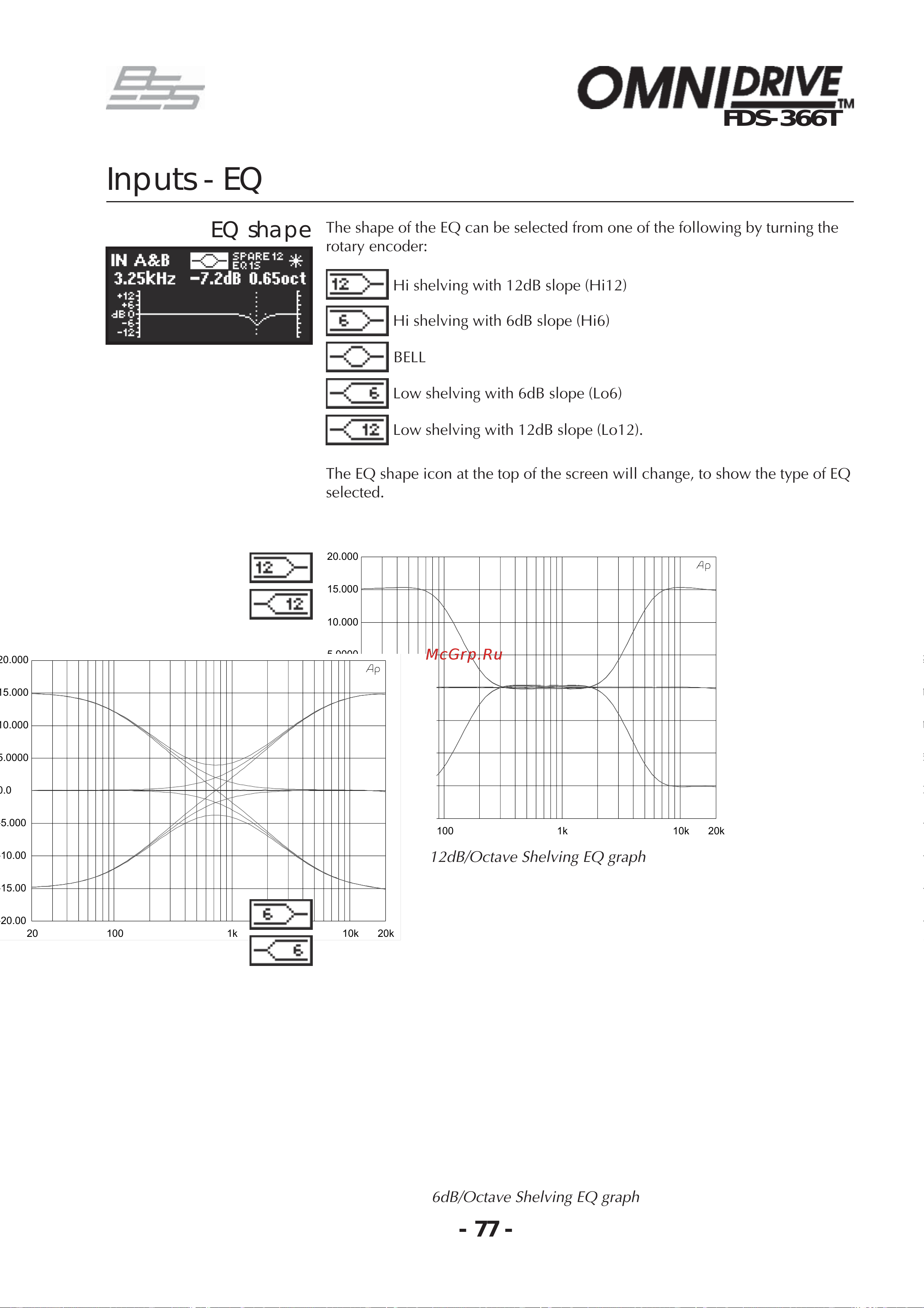

FDS-366T
Inputs - EQ
The shape of the EQ can be selected from one of the following by turning the
rotary encoder:
Hi shelving with 12dB slope (Hi12)
Hi shelving with 6dB slope (Hi6)
BELL
Low shelving with 6dB slope (Lo6)
Low shelving with 12dB slope (Lo12).
The EQ shape icon at the top of the screen will change, to show the type of EQ
selected.
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
10.000
15.000
20.000
20 100 1k 10k 20k
-20.00
-15.00
-10.00
-5.000
0.0
5.0000
10.000
15.000
20.000
20 100 1k 10k 20k
12dB/Octave Shelving EQ graph
6dB/Octave Shelving EQ graph
EQ shape
