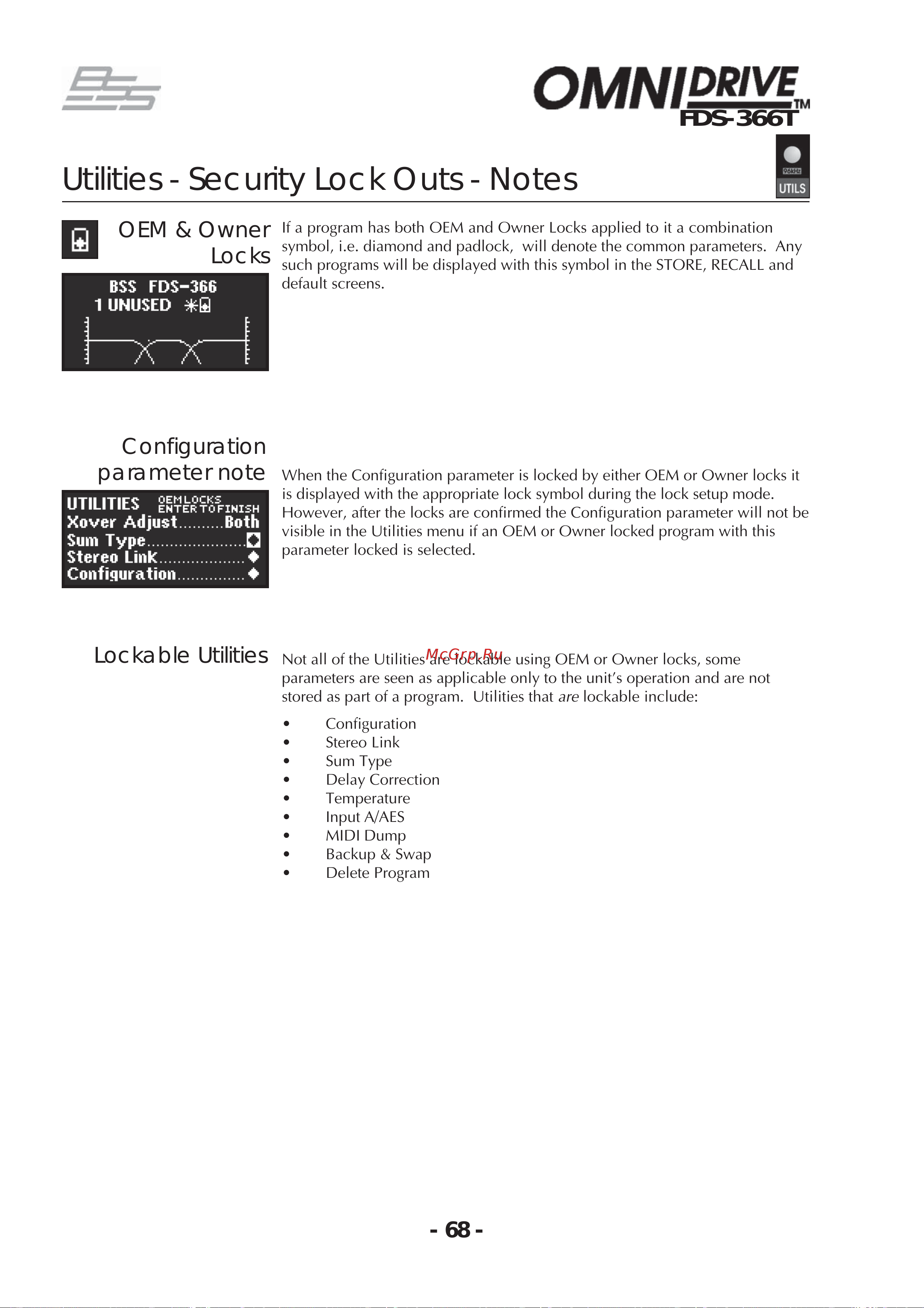

- 68 -
FDS-366T
If a program has both OEM and Owner Locks applied to it a combination
symbol, i.e. diamond and padlock, will denote the common parameters. Any
such programs will be displayed with this symbol in the STORE, RECALL and
default screens.
When the Configuration parameter is locked by either OEM or Owner locks it
is displayed with the appropriate lock symbol during the lock setup mode.
However, after the locks are confirmed the Configuration parameter will not be
visible in the Utilities menu if an OEM or Owner locked program with this
parameter locked is selected.
Not all of the Utilities are lockable using OEM or Owner locks, some
parameters are seen as applicable only to the unit's operation and are not
stored as part of a program. Utilities that are lockable include:
• Configuration
• Stereo Link
• Sum Type
• Delay Correction
• Temperature
• Input A/AES
• MIDI Dump
• Backup & Swap
• Delete Program
Utilities - Security Lock Outs - Notes
OEM & Owner
Locks
Configuration
parameter note
Lockable Utilities
