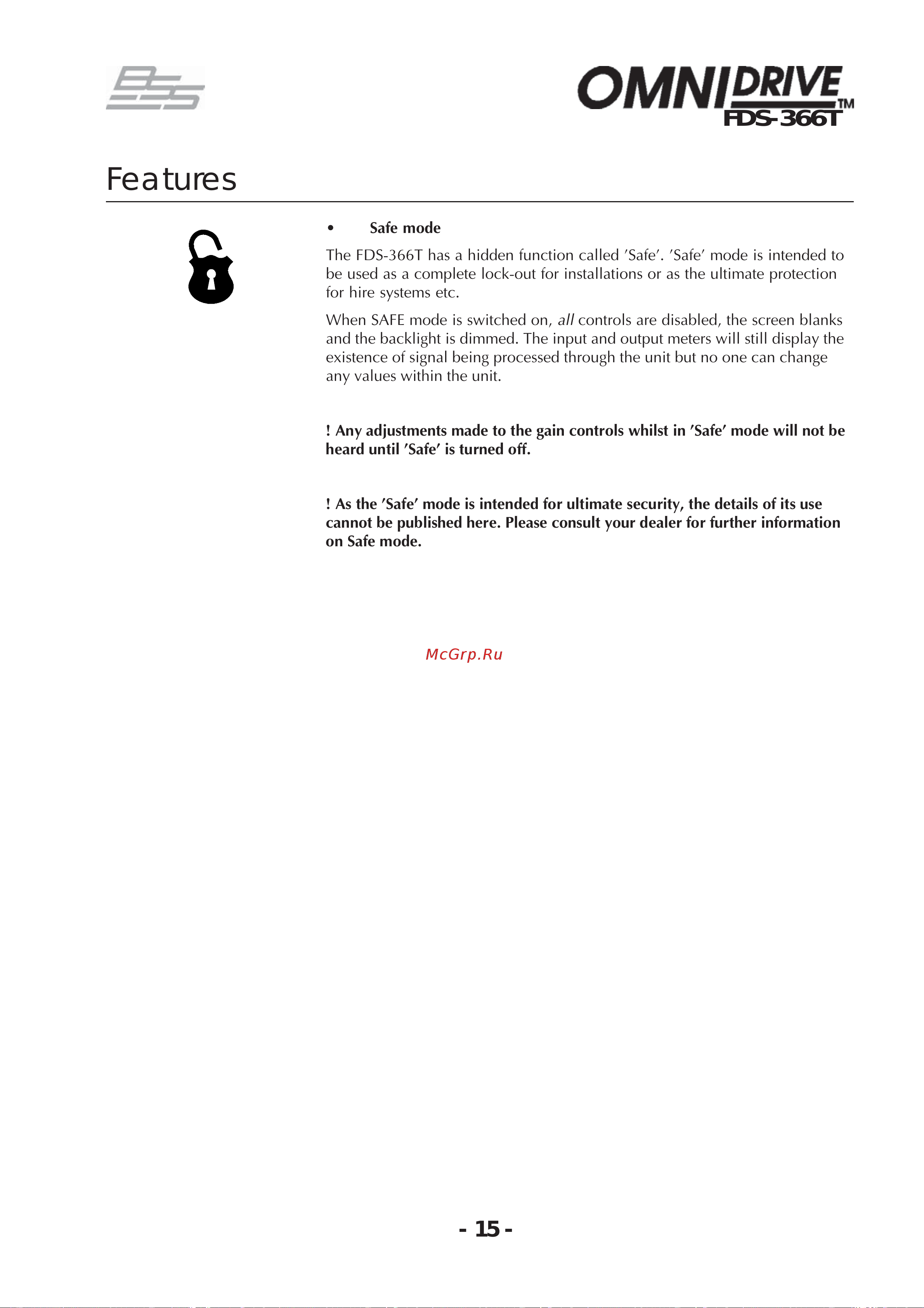

- 15 -
FDS-366T
• Safe mode
The FDS-366T has a hidden function called 'Safe'. 'Safe' mode is intended to
be used as a complete lock-out for installations or as the ultimate protection
for hire systems etc.
When SAFE mode is switched on, all controls are disabled, the screen blanks
and the backlight is dimmed. The input and output meters will still display the
existence of signal being processed through the unit but no one can change
any values within the unit.
! Any adjustments made to the gain controls whilst in 'Safe' mode will not be
heard until 'Safe' is turned off.
! As the 'Safe' mode is intended for ultimate security, the details of its use
cannot be published here. Please consult your dealer for further information
on Safe mode.
Features
