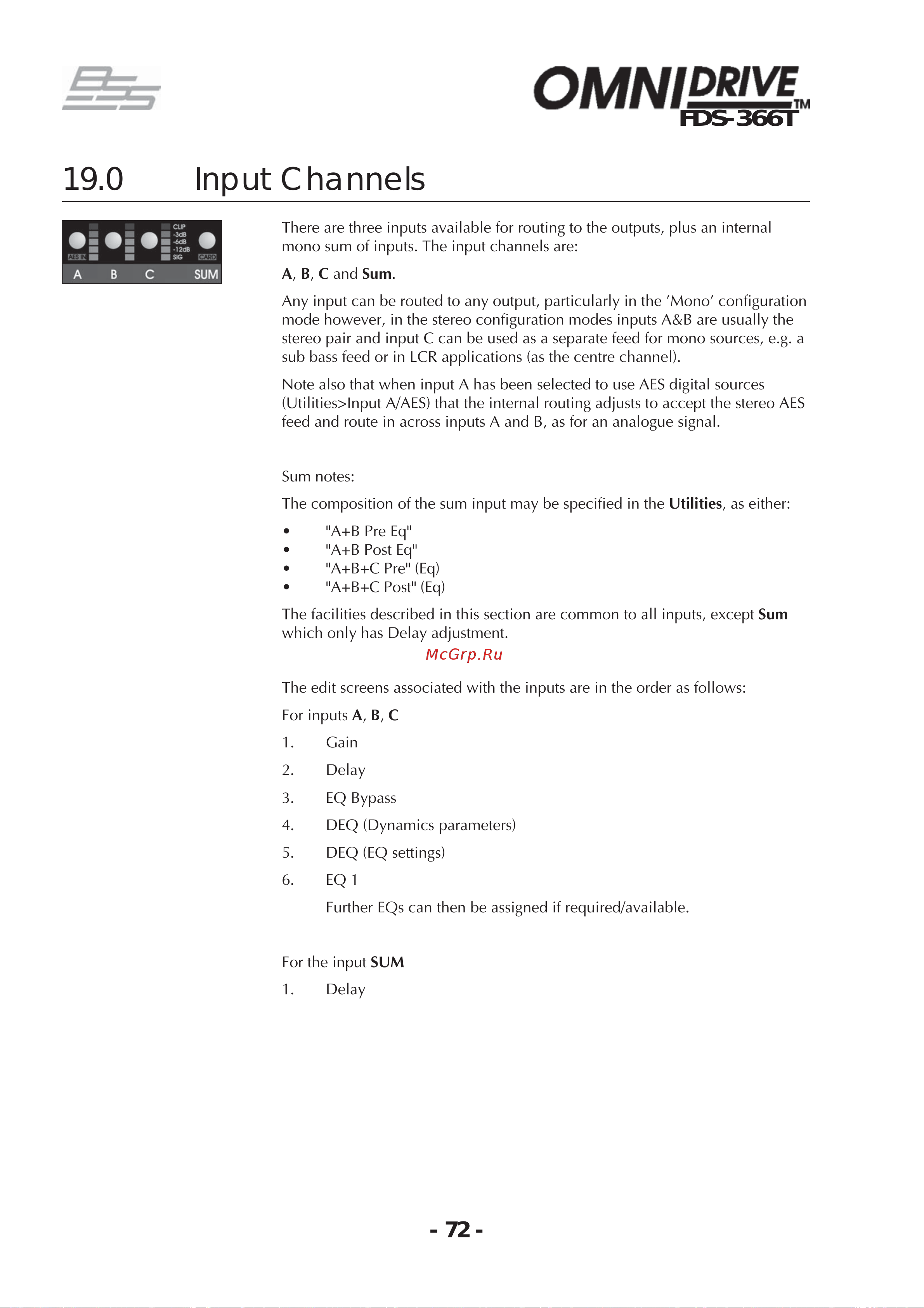

19.0 Input Channels

There are three inputs available for routing to the outputs, plus an internal

mono sum of inputs. The input channels are:

A, B, C and Sum.

Any input can be routed to any output, particularly in the 'Mono' configuration

mode however, in the stereo configuration modes inputs A&B are usually the

stereo pair and input C can be used as a separate feed for mono sources, e.g. a

sub bass feed or in LCR applications (as the centre channel).

Note also that when input A has been selected to use AES digital sources

(Utilities>Input A/AES) that the internal routing adjusts to accept the stereo AES

feed and route in across inputs A and B, as for an analogue signal.

Sum notes:

The composition of the sum input may be specified in the Utilities, as either:

• "A+B Pre Eq"

• "A+B Post Eq"

• "A+B+C Pre" (Eq)

• "A+B+C Post" (Eq)

The facilities described in this section are common to all inputs, except Sum

which only has Delay adjustment.

The edit screens associated with the inputs are in the order as follows:

For inputs A, B, C

1. Gain

2. Delay

3. EQ Bypass

4. DEQ (Dynamics parameters)

5. DEQ (EQ settings)

6. EQ 1

Further EQs can then be assigned if required/available.

For the input SUM

1. Delay
