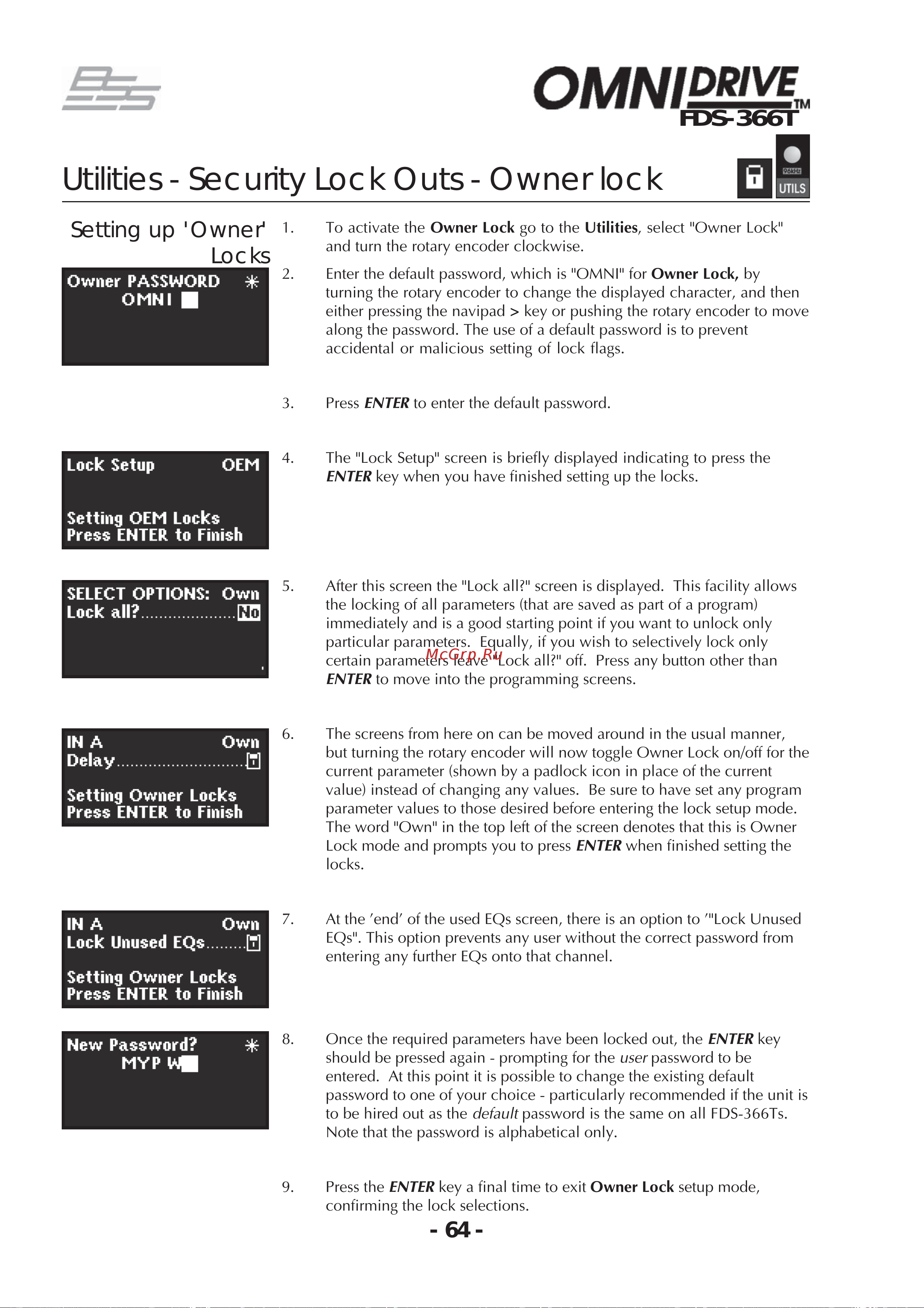

- 64 -
FDS-366T
1. To activate the Owner Lock go to the Utilities, select "Owner Lock"
and turn the rotary encoder clockwise.
2. Enter the default password, which is "OMNI" for Owner Lock, by
turning the rotary encoder to change the displayed character, and then
either pressing the navipad > key or pushing the rotary encoder to move
along the password. The use of a default password is to prevent
accidental or malicious setting of lock flags.
3. Press ENTER to enter the default password.
4. The "Lock Setup" screen is briefly displayed indicating to press the
ENTER key when you have finished setting up the locks.
5. After this screen the "Lock all?" screen is displayed. This facility allows
the locking of all parameters (that are saved as part of a program)
immediately and is a good starting point if you want to unlock only
particular parameters. Equally, if you wish to selectively lock only
certain parameters leave "Lock all?" off. Press any button other than
ENTER to move into the programming screens.
6. The screens from here on can be moved around in the usual manner,
but turning the rotary encoder will now toggle Owner Lock on/off for the
current parameter (shown by a padlock icon in place of the current
value) instead of changing any values. Be sure to have set any program
parameter values to those desired before entering the lock setup mode.
The word "Own" in the top left of the screen denotes that this is Owner
Lock mode and prompts you to press ENTER when finished setting the
locks.
7. At the 'end' of the used EQs screen, there is an option to '"Lock Unused
EQs". This option prevents any user without the correct password from
entering any further EQs onto that channel.
8. Once the required parameters have been locked out, the ENTER key
should be pressed again - prompting for the user password to be
entered. At this point it is possible to change the existing default
password to one of your choice - particularly recommended if the unit is
to be hired out as the default password is the same on all FDS-366Ts.
Note that the password is alphabetical only.
9. Press the ENTER key a final time to exit Owner Lock setup mode,
confirming the lock selections.
Utilities - Security Lock Outs - Owner lock
Setting up 'Owner'
Locks
