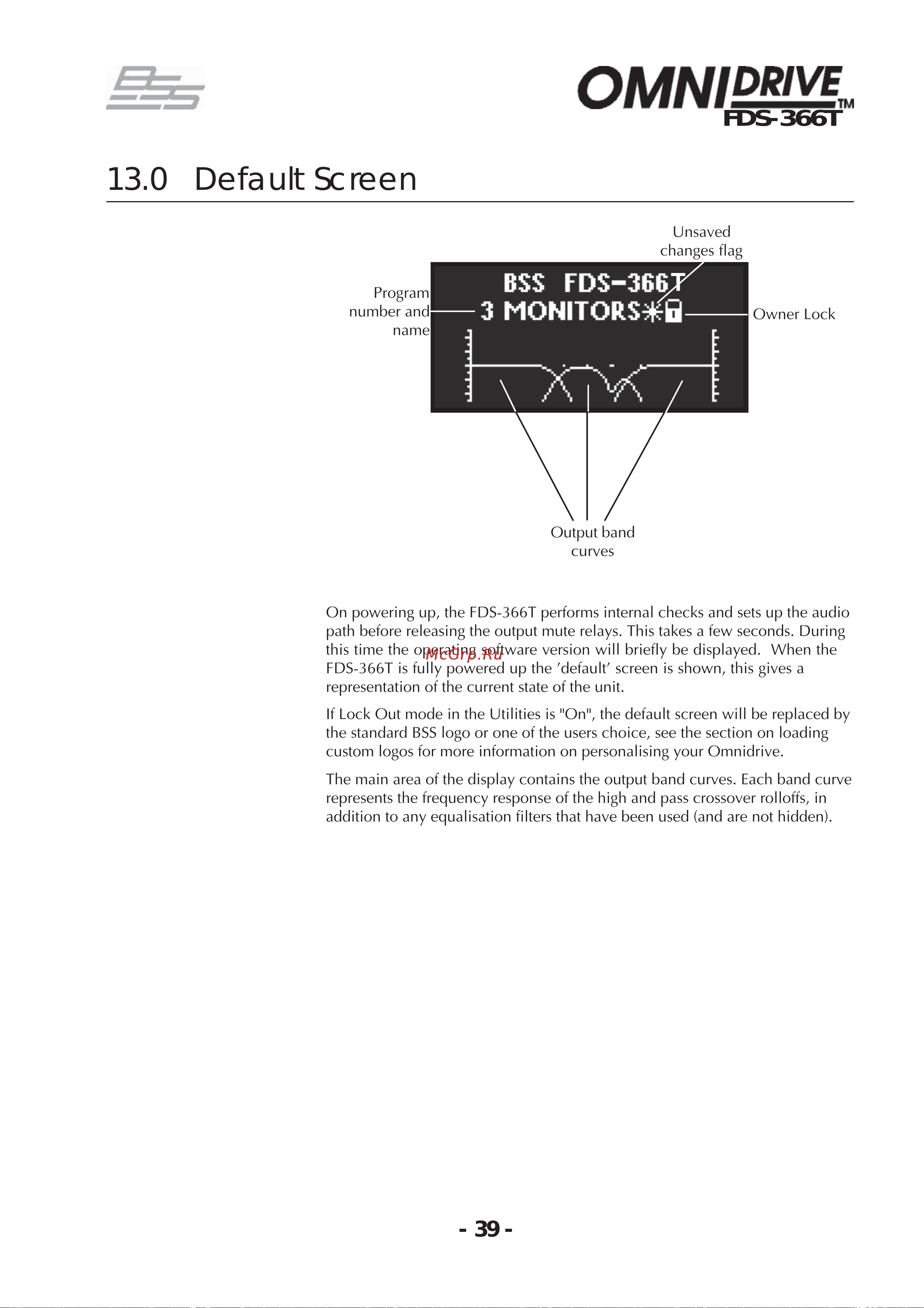

BSS 366T OmniDrive [39/112] Default screen
![BSS 366T OmniDrive [39/112] Default screen](/views2/2008120/page39/bg27.png)
- 39 -
FDS-366T
13.0 Default Screen
On powering up, the FDS-366T performs internal checks and sets up the audio
path before releasing the output mute relays. This takes a few seconds. During
this time the operating software version will briefly be displayed. When the
FDS-366T is fully powered up the 'default' screen is shown, this gives a
representation of the current state of the unit.
If Lock Out mode in the Utilities is "On", the default screen will be replaced by
the standard BSS logo or one of the users choice, see the section on loading
custom logos for more information on personalising your Omnidrive.
The main area of the display contains the output band curves. Each band curve
represents the frequency response of the high and pass crossover rolloffs, in
addition to any equalisation filters that have been used (and are not hidden).
Output band
curves
Unsaved
changes flag
Program
number and
name
Owner Lock
T
