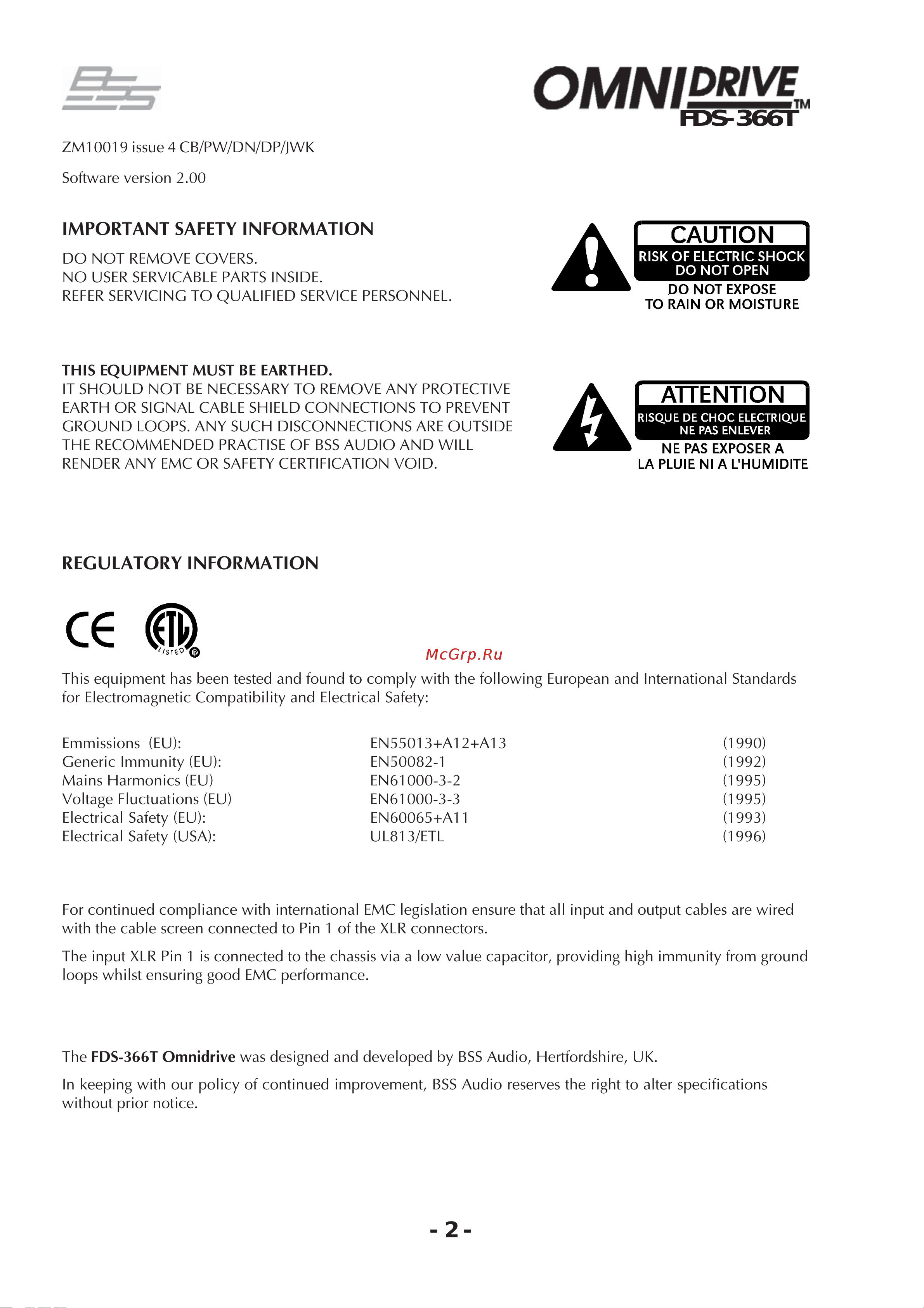

- 2 -
FDS-366T
IMPORTANT SAFETY INFORMATION
DO NOT REMOVE COVERS.
NO USER SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS EQUIPMENT MUST BE EARTHED.
IT SHOULD NOT BE NECESSARY TO REMOVE ANY PROTECTIVE
EARTH OR SIGNAL CABLE SHIELD CONNECTIONS TO PREVENT
GROUND LOOPS. ANY SUCH DISCONNECTIONS ARE OUTSIDE
THE RECOMMENDED PRACTISE OF BSS AUDIO AND WILL
RENDER ANY EMC OR SAFETY CERTIFICATION VOID.
This equipment has been tested and found to comply with the following European and International Standards
for Electromagnetic Compatibility and Electrical Safety:
Emmissions (EU): EN55013+A12+A13 (1990)
Generic Immunity (EU): EN50082-1 (1992)
Mains Harmonics (EU) EN61000-3-2 (1995)
Voltage Fluctuations (EU) EN61000-3-3 (1995)
Electrical Safety (EU): EN60065+A11 (1993)
Electrical Safety (USA): UL813/ETL (1996)
For continued compliance with international EMC legislation ensure that all input and output cables are wired
with the cable screen connected to Pin 1 of the XLR connectors.
The input XLR Pin 1 is connected to the chassis via a low value capacitor, providing high immunity from ground
loops whilst ensuring good EMC performance.
The FDS-366T Omnidrive was designed and developed by BSS Audio, Hertfordshire, UK.
In keeping with our policy of continued improvement, BSS Audio reserves the right to alter specifications
without prior notice.
REGULATORY INFORMATION
Software version 2.00
ZM10019 issue 4 CB/PW/DN/DP/JWK
