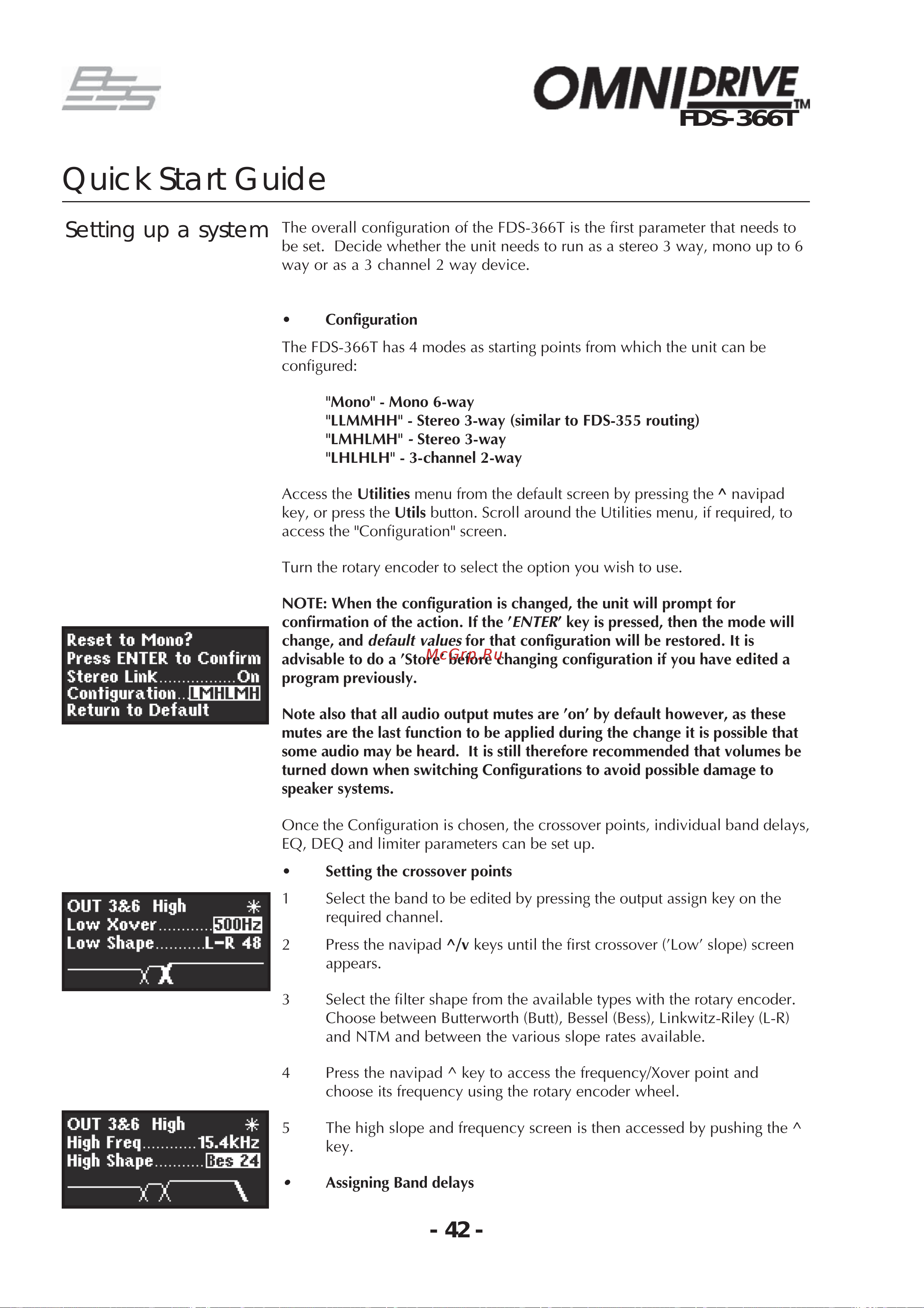

- 42 -
FDS-366T
The overall configuration of the FDS-366T is the first parameter that needs to
be set. Decide whether the unit needs to run as a stereo 3 way, mono up to 6
way or as a 3 channel 2 way device.
• Configuration
The FDS-366T has 4 modes as starting points from which the unit can be
configured:
"Mono" - Mono 6-way
"LLMMHH" - Stereo 3-way (similar to FDS-355 routing)
"LMHLMH" - Stereo 3-way
"LHLHLH" - 3-channel 2-way
Access the Utilities menu from the default screen by pressing the ^ navipad
key, or press the Utils button. Scroll around the Utilities menu, if required, to
access the "Configuration" screen.
Turn the rotary encoder to select the option you wish to use.
NOTE: When the configuration is changed, the unit will prompt for
confirmation of the action. If the 'ENTER' key is pressed, then the mode will
change, and default values for that configuration will be restored. It is
advisable to do a 'Store' before changing configuration if you have edited a
program previously.
Note also that all audio output mutes are 'on' by default however, as these
mutes are the last function to be applied during the change it is possible that
some audio may be heard. It is still therefore recommended that volumes be
turned down when switching Configurations to avoid possible damage to
speaker systems.
Once the Configuration is chosen, the crossover points, individual band delays,
EQ, DEQ and limiter parameters can be set up.
• Setting the crossover points
1 Select the band to be edited by pressing the output assign key on the
required channel.
2 Press the navipad ^/v keys until the first crossover ('Low' slope) screen
appears.
3 Select the filter shape from the available types with the rotary encoder.
Choose between Butterworth (Butt), Bessel (Bess), Linkwitz-Riley (L-R)
and NTM and between the various slope rates available.
4 Press the navipad ^ key to access the frequency/Xover point and
choose its frequency using the rotary encoder wheel.
5 The high slope and frequency screen is then accessed by pushing the ^
key.
• Assigning Band delays
Quick Start Guide
Setting up a system
