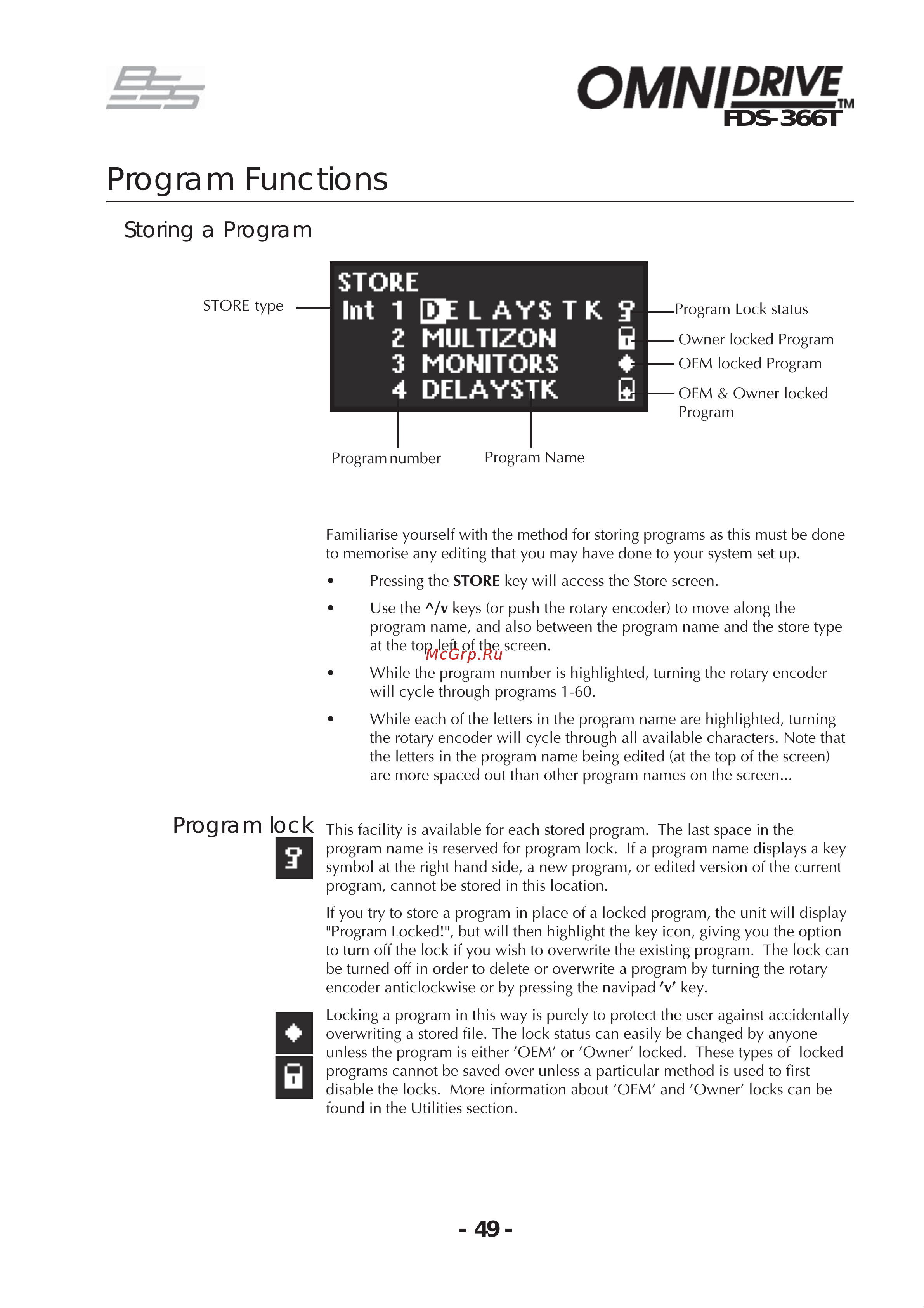

BSS 366T OmniDrive [49/112] Program functions
![BSS 366T OmniDrive [49/112] Program functions](/views2/2008120/page49/bg31.png)
- 49 -
FDS-366T
Storing a Program
Program Functions
Owner locked Program
OEM locked Program
Program Name
STORE type
Program Lock status
Program number
OEM & Owner locked
Program
Familiarise yourself with the method for storing programs as this must be done
to memorise any editing that you may have done to your system set up.
• Pressing the STORE key will access the Store screen.
• Use the ^/v keys (or push the rotary encoder) to move along the
program name, and also between the program name and the store type
at the top left of the screen.
• While the program number is highlighted, turning the rotary encoder
will cycle through programs 1-60.
• While each of the letters in the program name are highlighted, turning
the rotary encoder will cycle through all available characters. Note that
the letters in the program name being edited (at the top of the screen)
are more spaced out than other program names on the screen...
This facility is available for each stored program. The last space in the
program name is reserved for program lock. If a program name displays a key
symbol at the right hand side, a new program, or edited version of the current
program, cannot be stored in this location.
If you try to store a program in place of a locked program, the unit will display
"Program Locked!", but will then highlight the key icon, giving you the option
to turn off the lock if you wish to overwrite the existing program. The lock can
be turned off in order to delete or overwrite a program by turning the rotary
encoder anticlockwise or by pressing the navipad 'v' key.
Locking a program in this way is purely to protect the user against accidentally
overwriting a stored file. The lock status can easily be changed by anyone
unless the program is either 'OEM' or 'Owner' locked. These types of locked
programs cannot be saved over unless a particular method is used to first
disable the locks. More information about 'OEM' and 'Owner' locks can be
found in the Utilities section.
Program lock
