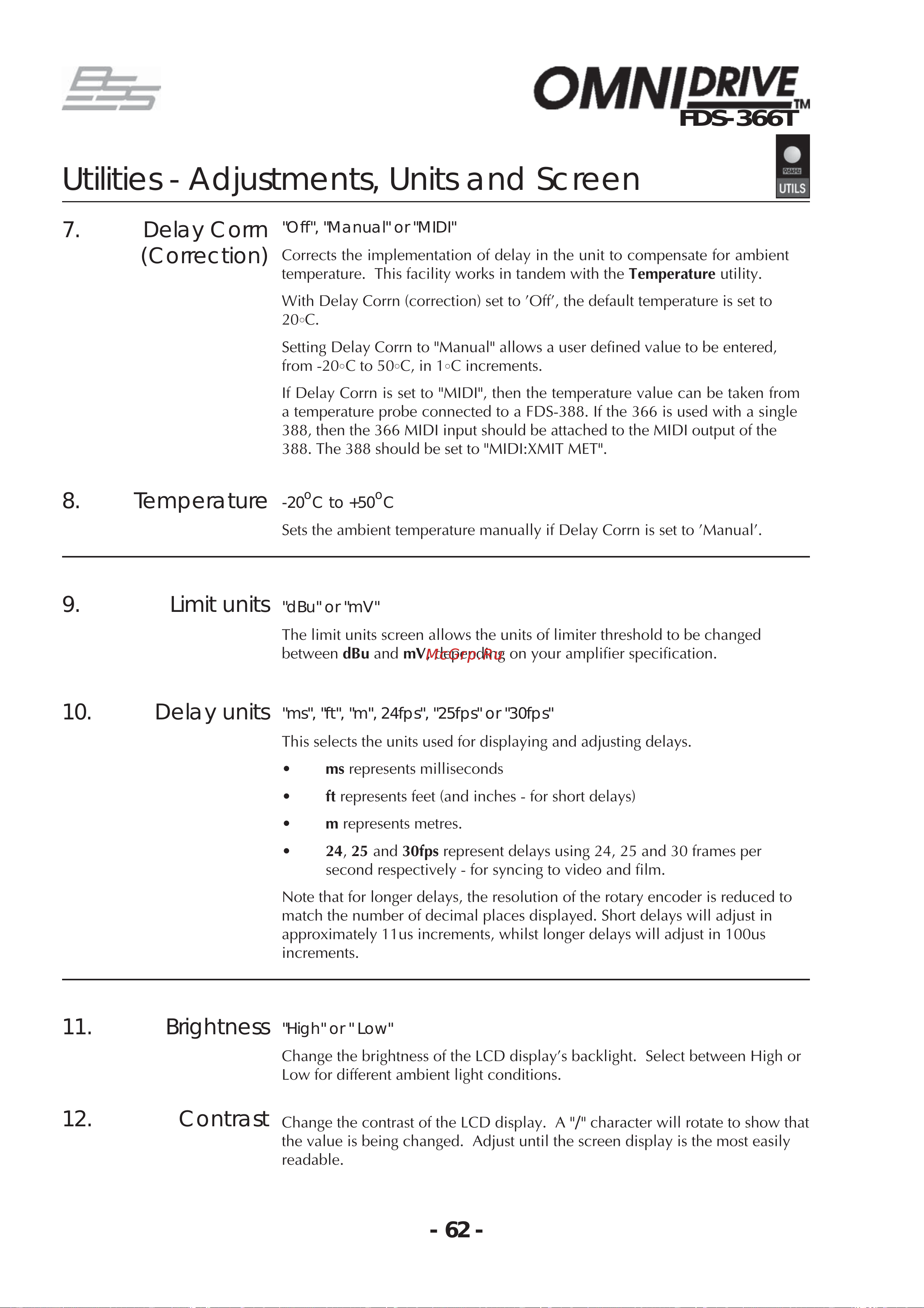

BSS 366T OmniDrive [62/112] Utilities adjustments units and screen
![BSS 366T OmniDrive [62/112] Utilities adjustments units and screen](/views2/2008120/page62/bg3e.png)
- 62 -
FDS-366T
9. Limit units
"dBu" or "mV"
The limit units screen allows the units of limiter threshold to be changed
between dBu and mV, depending on your amplifier specification.
"ms", "ft", "m", 24fps", "25fps" or "30fps"
This selects the units used for displaying and adjusting delays.
• ms represents milliseconds
•ft represents feet (and inches - for short delays)
•m represents metres.
•24, 25 and 30fps represent delays using 24, 25 and 30 frames per
second respectively - for syncing to video and film.
Note that for longer delays, the resolution of the rotary encoder is reduced to
match the number of decimal places displayed. Short delays will adjust in
approximately 11us increments, whilst longer delays will adjust in 100us
increments.
10. Delay units
8. Temperature
-20
o
C to +50
o
C
Sets the ambient temperature manually if Delay Corrn is set to 'Manual'.
7. Delay Corrn
(Correction)
"Off", "Manual" or "MIDI"
Corrects the implementation of delay in the unit to compensate for ambient
temperature. This facility works in tandem with the Temperature utility.
With Delay Corrn (correction) set to 'Off', the default temperature is set to
20°C.
Setting Delay Corrn to "Manual" allows a user defined value to be entered,
from -20°C to 50°C, in 1°C increments.
If Delay Corrn is set to "MIDI", then the temperature value can be taken from
a temperature probe connected to a FDS-388. If the 366 is used with a single
388, then the 366 MIDI input should be attached to the MIDI output of the
388. The 388 should be set to "MIDI:XMIT MET".
Change the contrast of the LCD display. A "/" character will rotate to show that
the value is being changed. Adjust until the screen display is the most easily
readable.
12. Contrast
"High" or " Low"
Change the brightness of the LCD display's backlight. Select between High or
Low for different ambient light conditions.
11. Brightness
Utilities - Adjustments, Units and Screen
