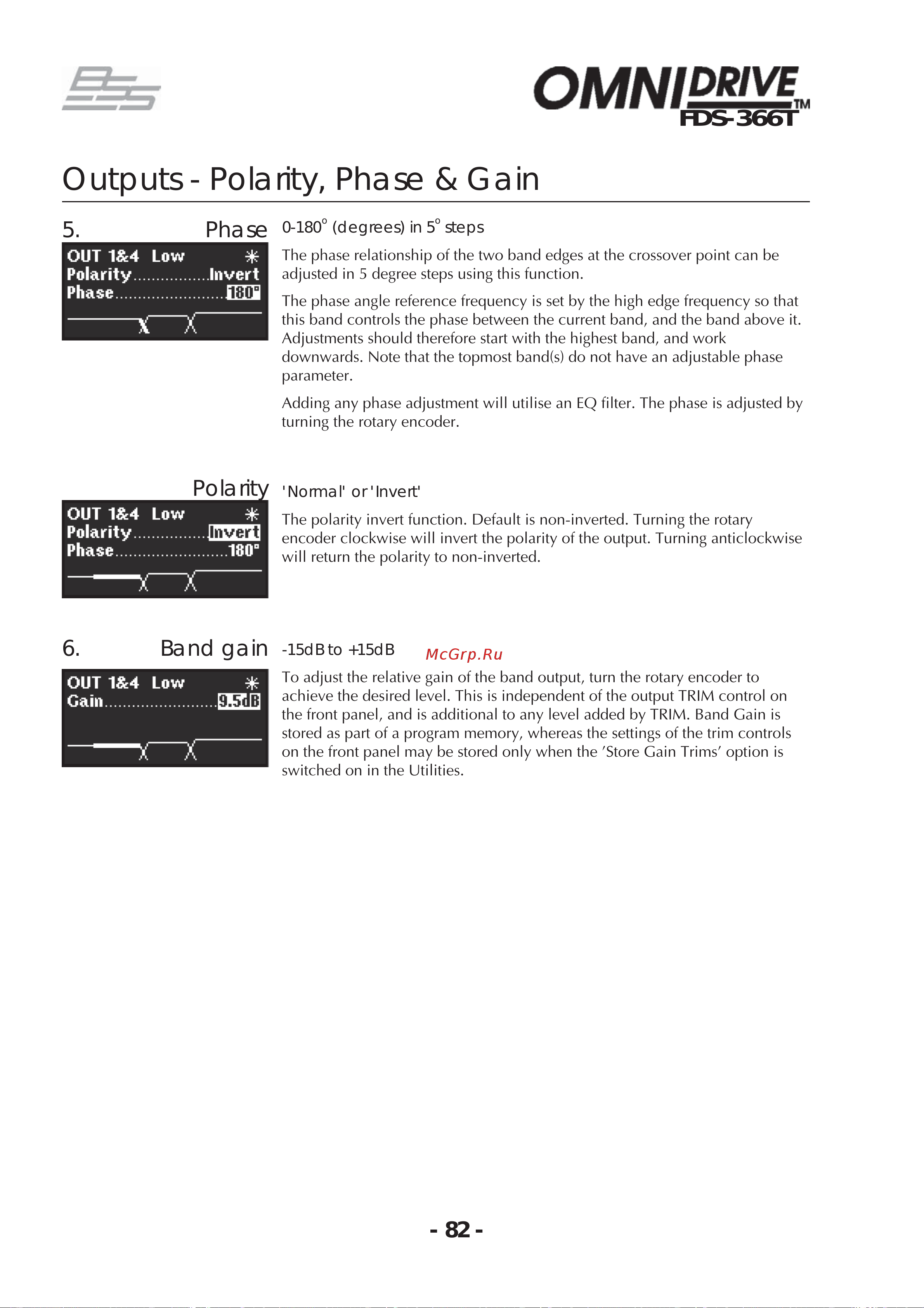

BSS 366T OmniDrive [82/112] Outputs polarity phase gain
![BSS 366T OmniDrive [82/112] Outputs polarity phase gain](/views2/2008120/page82/bg52.png)
- 82 -
FDS-366T
'Normal' or 'Invert'
The polarity invert function. Default is non-inverted. Turning the rotary
encoder clockwise will invert the polarity of the output. Turning anticlockwise
will return the polarity to non-inverted.
0-180
o
(degrees) in 5
o
steps
The phase relationship of the two band edges at the crossover point can be
adjusted in 5 degree steps using this function.
The phase angle reference frequency is set by the high edge frequency so that
this band controls the phase between the current band, and the band above it.
Adjustments should therefore start with the highest band, and work
downwards. Note that the topmost band(s) do not have an adjustable phase
parameter.
Adding any phase adjustment will utilise an EQ filter. The phase is adjusted by
turning the rotary encoder.
6. Band gain
-15dB to +15dB
To adjust the relative gain of the band output, turn the rotary encoder to
achieve the desired level. This is independent of the output TRIM control on
the front panel, and is additional to any level added by TRIM. Band Gain is
stored as part of a program memory, whereas the settings of the trim controls
on the front panel may be stored only when the 'Store Gain Trims' option is
switched on in the Utilities.
Outputs - Polarity, Phase & Gain
Polarity
5. Phase
