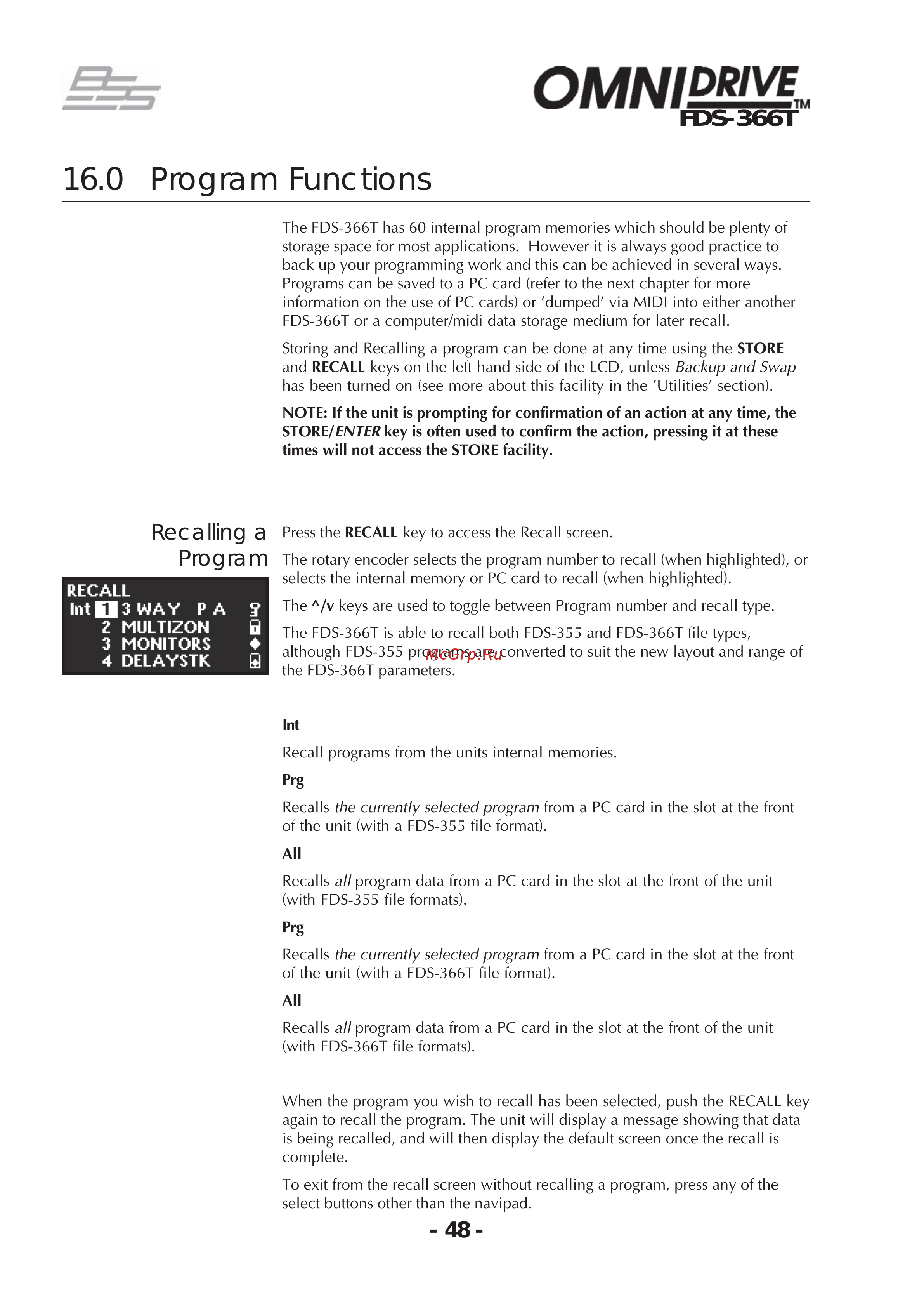

- 48 -
FDS-366T
16.0 Program Functions
The FDS-366T has 60 internal program memories which should be plenty of
storage space for most applications. However it is always good practice to
back up your programming work and this can be achieved in several ways.
Programs can be saved to a PC card (refer to the next chapter for more
information on the use of PC cards) or 'dumped' via MIDI into either another
FDS-366T or a computer/midi data storage medium for later recall.
Storing and Recalling a program can be done at any time using the STORE
and RECALL keys on the left hand side of the LCD, unless Backup and Swap
has been turned on (see more about this facility in the 'Utilities' section).
NOTE: If the unit is prompting for confirmation of an action at any time, the
STORE/ENTER key is often used to confirm the action, pressing it at these
times will not access the STORE facility.
Press the RECALL key to access the Recall screen.
The rotary encoder selects the program number to recall (when highlighted), or
selects the internal memory or PC card to recall (when highlighted).
The ^/v keys are used to toggle between Program number and recall type.
The FDS-366T is able to recall both FDS-355 and FDS-366T file types,
although FDS-355 programs are converted to suit the new layout and range of
the FDS-366T parameters.
Int
Recall programs from the units internal memories.
Prg
Recalls the currently selected program from a PC card in the slot at the front
of the unit (with a FDS-355 file format).
All
Recalls all program data from a PC card in the slot at the front of the unit
(with FDS-355 file formats).
Prg
Recalls the currently selected program from a PC card in the slot at the front
of the unit (with a FDS-366T file format).
All
Recalls all program data from a PC card in the slot at the front of the unit
(with FDS-366T file formats).
When the program you wish to recall has been selected, push the RECALL key
again to recall the program. The unit will display a message showing that data
is being recalled, and will then display the default screen once the recall is
complete.
To exit from the recall screen without recalling a program, press any of the
select buttons other than the navipad.
Recalling a
Program
