- 38 -
FDS-366T

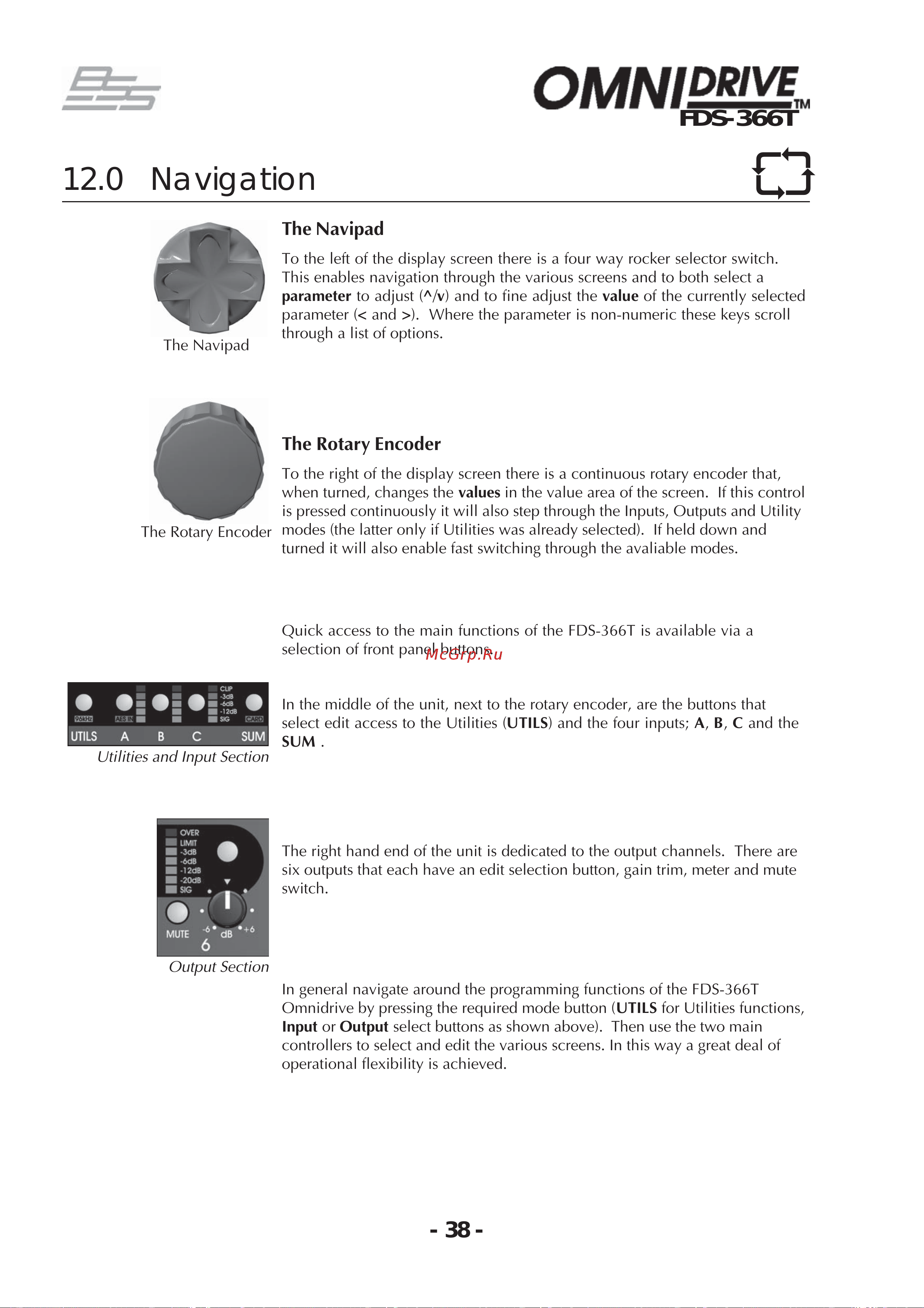

12.0 Navigation
The Navipad
To the left of the display screen there is a four way rocker selector switch.
This enables navigation through the various screens and to both select a
parameter to adjust (^/v) and to fine adjust the value of the currently selected
parameter (< and >). Where the parameter is non-numeric these keys scroll
through a list of options.
The Rotary Encoder
To the right of the display screen there is a continuous rotary encoder that,
when turned, changes the values in the value area of the screen. If this control
is pressed continuously it will also step through the Inputs, Outputs and Utility
modes (the latter only if Utilities was already selected). If held down and
turned it will also enable fast switching through the avaliable modes.
Quick access to the main functions of the FDS-366T is available via a
selection of front panel buttons.
In the middle of the unit, next to the rotary encoder, are the buttons that
select edit access to the Utilities (UTILS) and the four inputs; A, B, C and the
SUM .
The right hand end of the unit is dedicated to the output channels. There are
six outputs that each have an edit selection button, gain trim, meter and mute
switch.
In general navigate around the programming functions of the FDS-366T
Omnidrive by pressing the required mode button (UTILS for Utilities functions,
Input or Output select buttons as shown above). Then use the two main
controllers to select and edit the various screens. In this way a great deal of
operational flexibility is achieved.
The Rotary Encoder
The Navipad
`
Output Section
Utilities and Input Section
