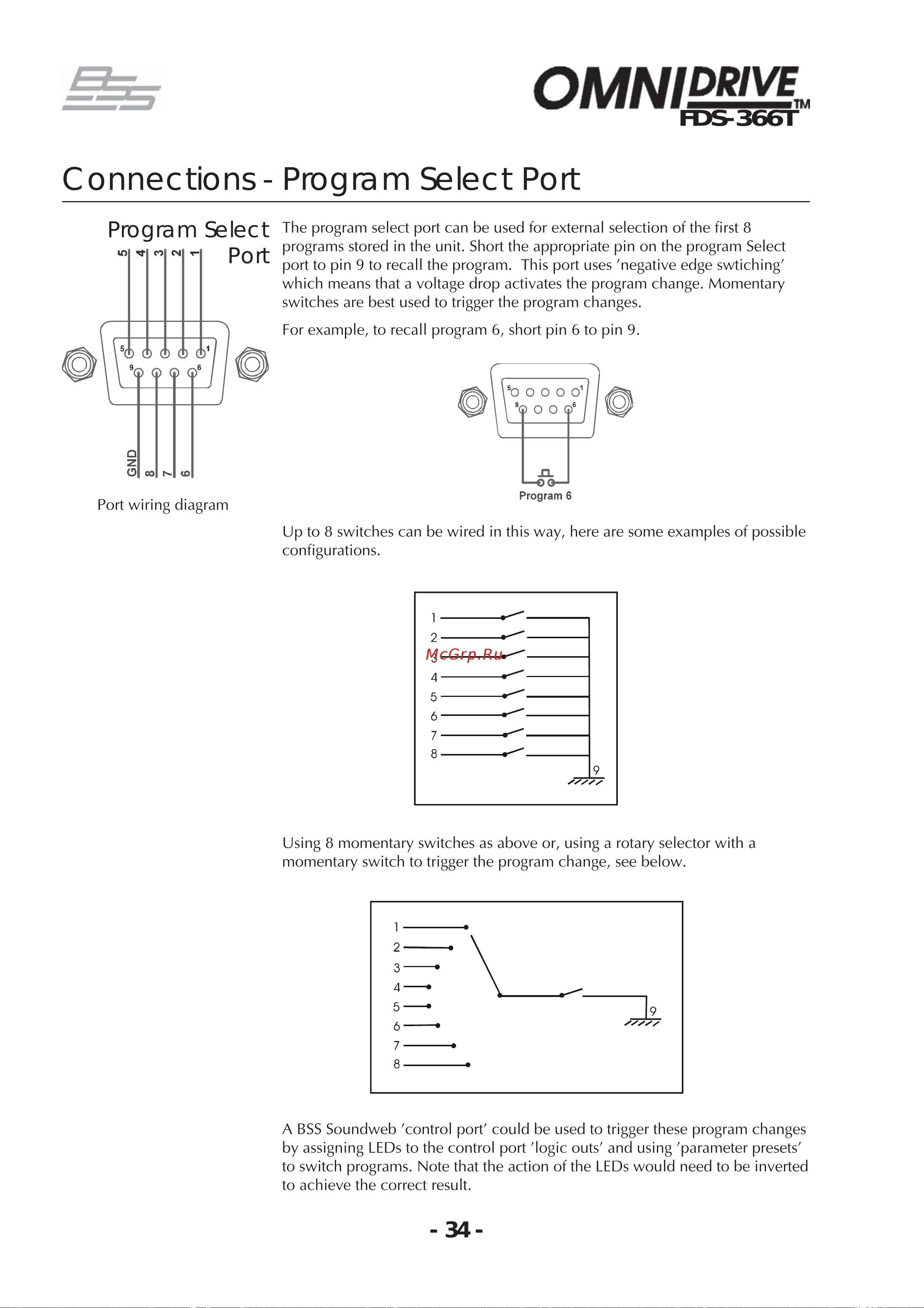

BSS 366T OmniDrive [34/112] Connections program select port
![BSS 366T OmniDrive [34/112] Connections program select port](/views2/2008120/page34/bg22.png)
- 34 -
FDS-366T
The program select port can be used for external selection of the first 8
programs stored in the unit. Short the appropriate pin on the program Select
port to pin 9 to recall the program. This port uses 'negative edge swtiching'
which means that a voltage drop activates the program change. Momentary
switches are best used to trigger the program changes.
For example, to recall program 6, short pin 6 to pin 9.
Up to 8 switches can be wired in this way, here are some examples of possible
configurations.
Using 8 momentary switches as above or, using a rotary selector with a
momentary switch to trigger the program change, see below.
A BSS Soundweb 'control port' could be used to trigger these program changes
by assigning LEDs to the control port 'logic outs' and using 'parameter presets'
to switch programs. Note that the action of the LEDs would need to be inverted
to achieve the correct result.
Program Select
Port
Port wiring diagram
Connections - Program Select Port
