BSS 366T OmniDrive [93/112] Serial communications rs232

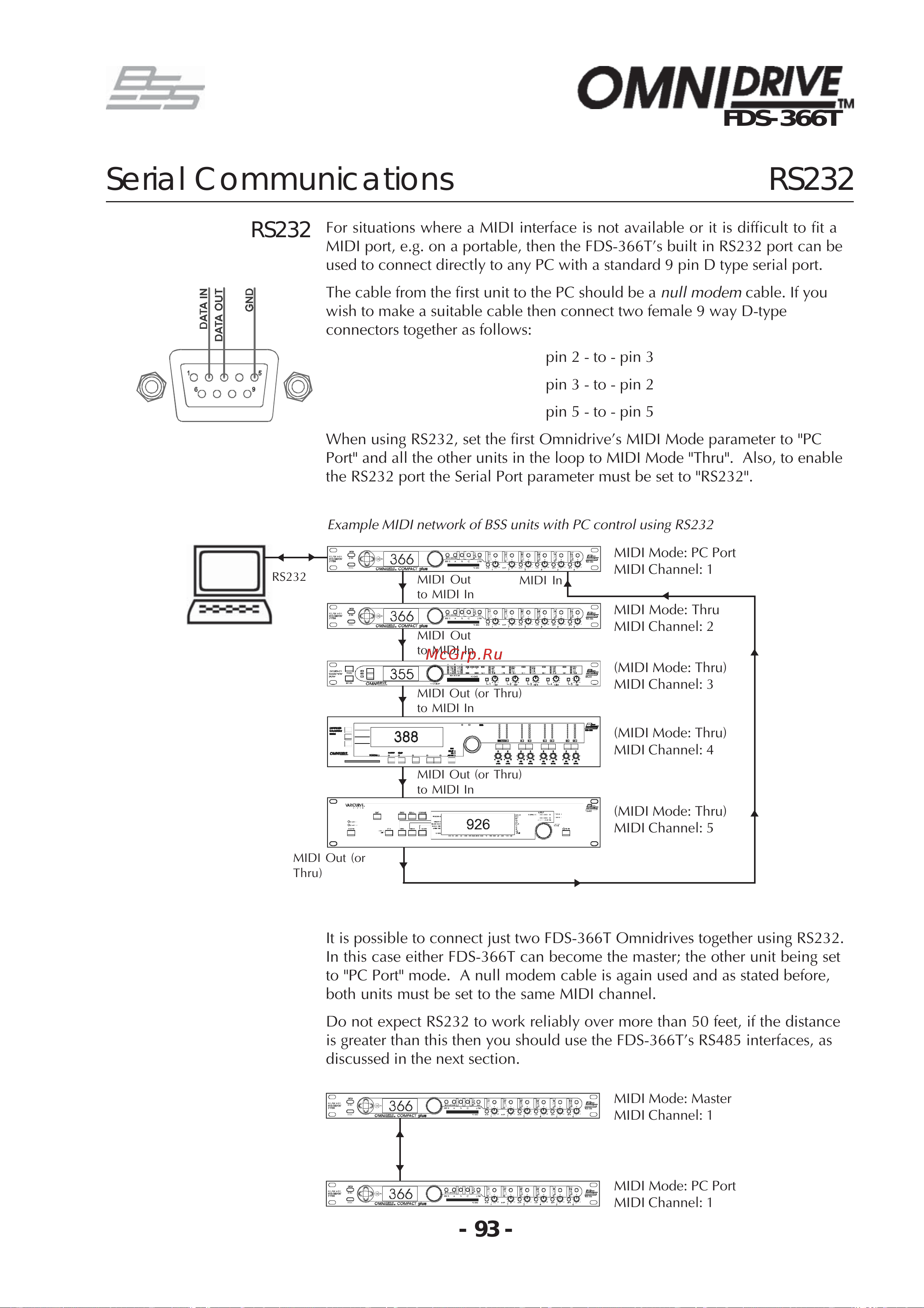

![BSS 366T OmniDrive [93/112] Serial communications rs232](/views2/2008120/page93/bg5d.png)
- 93 -
FDS-366T
Serial Communications RS232
For situations where a MIDI interface is not available or it is difficult to fit a
MIDI port, e.g. on a portable, then the FDS-366T's built in RS232 port can be
used to connect directly to any PC with a standard 9 pin D type serial port.
The cable from the first unit to the PC should be a null modem cable. If you
wish to make a suitable cable then connect two female 9 way D-type
connectors together as follows:
pin 2 - to - pin 3
pin 3 - to - pin 2
pin 5 - to - pin 5
When using RS232, set the first Omnidrive's MIDI Mode parameter to "PC
Port" and all the other units in the loop to MIDI Mode "Thru". Also, to enable
the RS232 port the Serial Port parameter must be set to "RS232".
RS232
It is possible to connect just two FDS-366T Omnidrives together using RS232.
In this case either FDS-366T can become the master; the other unit being set
to "PC Port" mode. A null modem cable is again used and as stated before,
both units must be set to the same MIDI channel.
Do not expect RS232 to work reliably over more than 50 feet, if the distance
is greater than this then you should use the FDS-366T's RS485 interfaces, as
discussed in the next section.
MIDI Out
to MIDI In
MIDI Out
to MIDI In
MIDI Out (or Thru)
to MIDI In
MIDI Out (or Thru)
to MIDI In
Example MIDI network of BSS units with PC control using RS232
MIDI Mode: PC Port
MIDI Channel: 1
MIDI Mode: Thru
MIDI Channel: 2
(MIDI Mode: Thru)
MIDI Channel: 3
(MIDI Mode: Thru)
MIDI Channel: 4
(MIDI Mode: Thru)
MIDI Channel: 5
RS232
MIDI In
MIDI Out (or
Thru)
MIDI Mode: Master
MIDI Channel: 1
MIDI Mode: PC Port
MIDI Channel: 1
