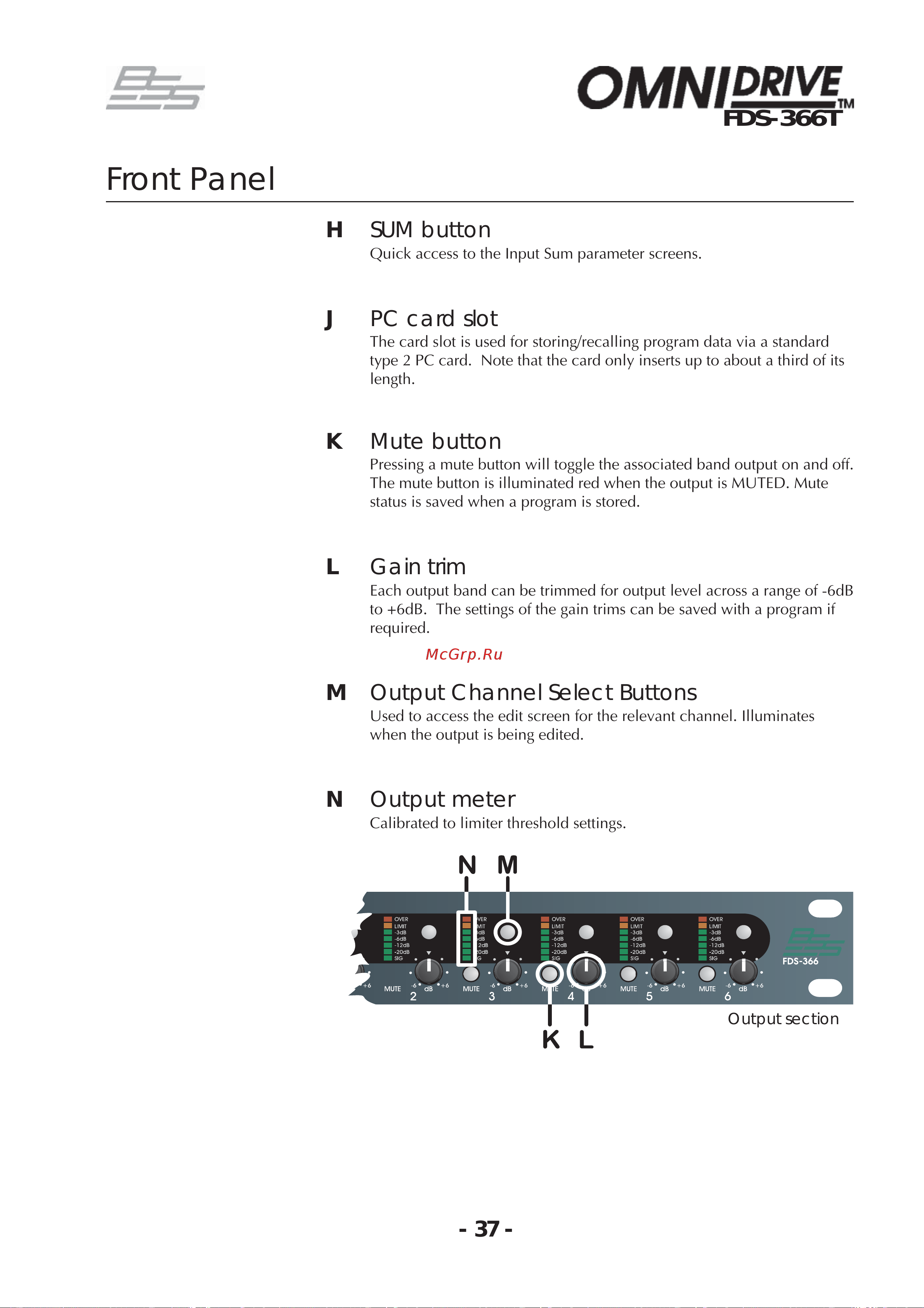

BSS 366T OmniDrive [37/112] Front panel
![BSS 366T OmniDrive [37/112] Front panel](/views2/2008120/page37/bg25.png)
- 37 -
FDS-366T
H SUM button
Quick access to the Input Sum parameter screens.
J PC card slot
The card slot is used for storing/recalling program data via a standard
type 2 PC card. Note that the card only inserts up to about a third of its
length.
K Mute button
Pressing a mute button will toggle the associated band output on and off.
The mute button is illuminated red when the output is MUTED. Mute
status is saved when a program is stored.
L Gain trim
Each output band can be trimmed for output level across a range of -6dB
to +6dB. The settings of the gain trims can be saved with a program if
required.
M Output Channel Select Buttons
Used to access the edit screen for the relevant channel. Illuminates
when the output is being edited.
N Output meter
Calibrated to limiter threshold settings.
Front Panel
Output section
