- 16 -
FDS-366T

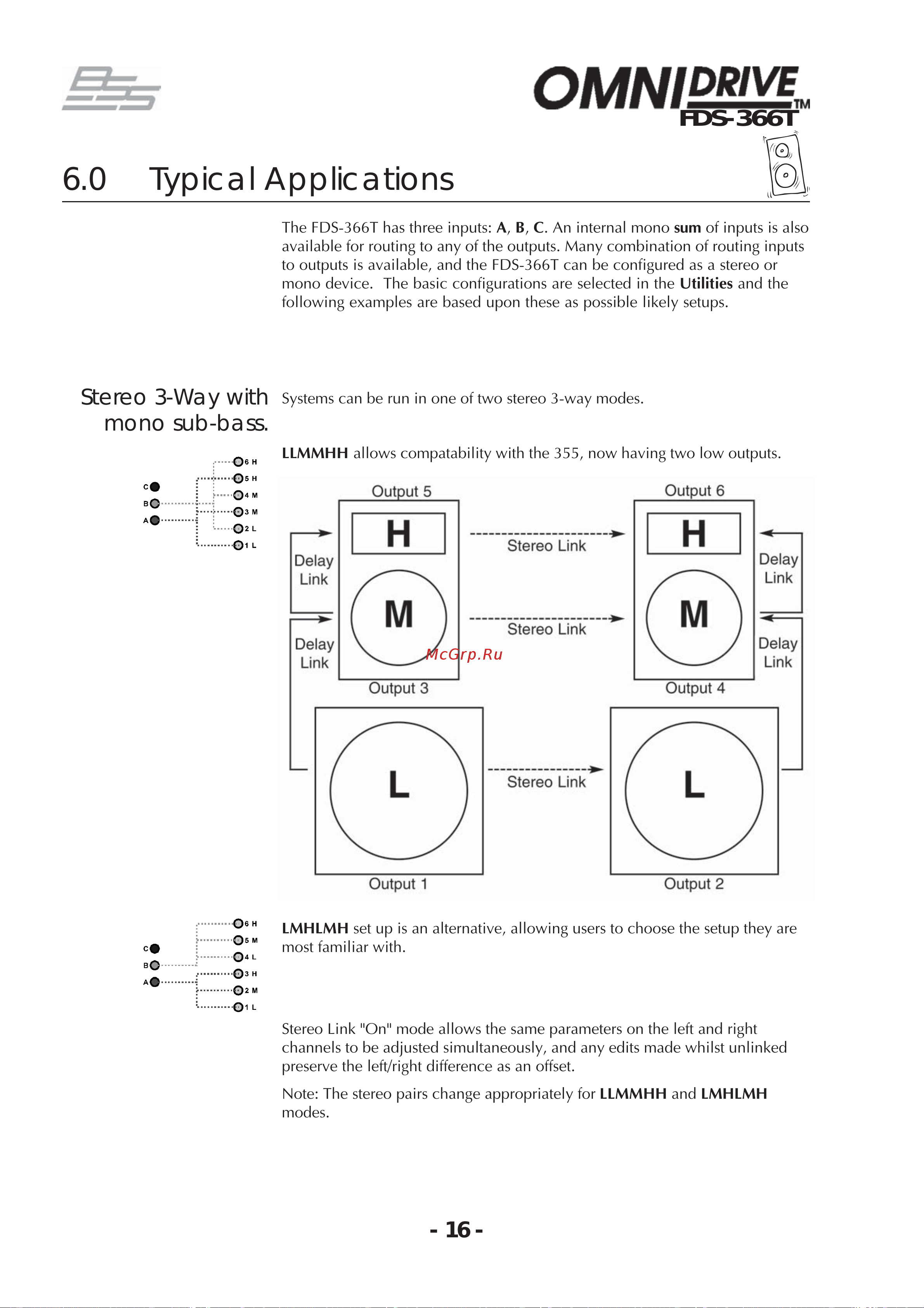

6.0 Typical Applications
The FDS-366T has three inputs: A, B, C. An internal mono sum of inputs is also
available for routing to any of the outputs. Many combination of routing inputs
to outputs is available, and the FDS-366T can be configured as a stereo or
mono device. The basic configurations are selected in the Utilities and the
following examples are based upon these as possible likely setups.
Systems can be run in one of two stereo 3-way modes.
LLMMHH allows compatability with the 355, now having two low outputs.
LMHLMH set up is an alternative, allowing users to choose the setup they are
most familiar with.
Stereo Link "On" mode allows the same parameters on the left and right
channels to be adjusted simultaneously, and any edits made whilst unlinked
preserve the left/right difference as an offset.
Note: The stereo pairs change appropriately for LLMMHH and LMHLMH
modes.
Stereo 3-Way with
mono sub-bass.
