- 33 -
FDS-366T
Standard 5 pin DIN MIDI In and Out jacks are located on the back
panel. These allow remote program recall, parallel control and MIDI
systems exclusive dump capability. Standard 5 pin din MIDI cables
should be used.
An RS-232 connector allows updating of the flash memory via a PC
(as system firmware updates become available - check our website,
www.bss.co.uk for updates) and also for other software packages such
as Smaart or Soundbench to control the FDS-366T.
The cable from the first unit to the PC should be a null modem cable. If you
wish to make a suitable cable then connect two female 9 way d-type
connectors together as follows:
pin 2 - to - pin 3
pin 3 - to - pin 2
pin 5 - to - pin 5

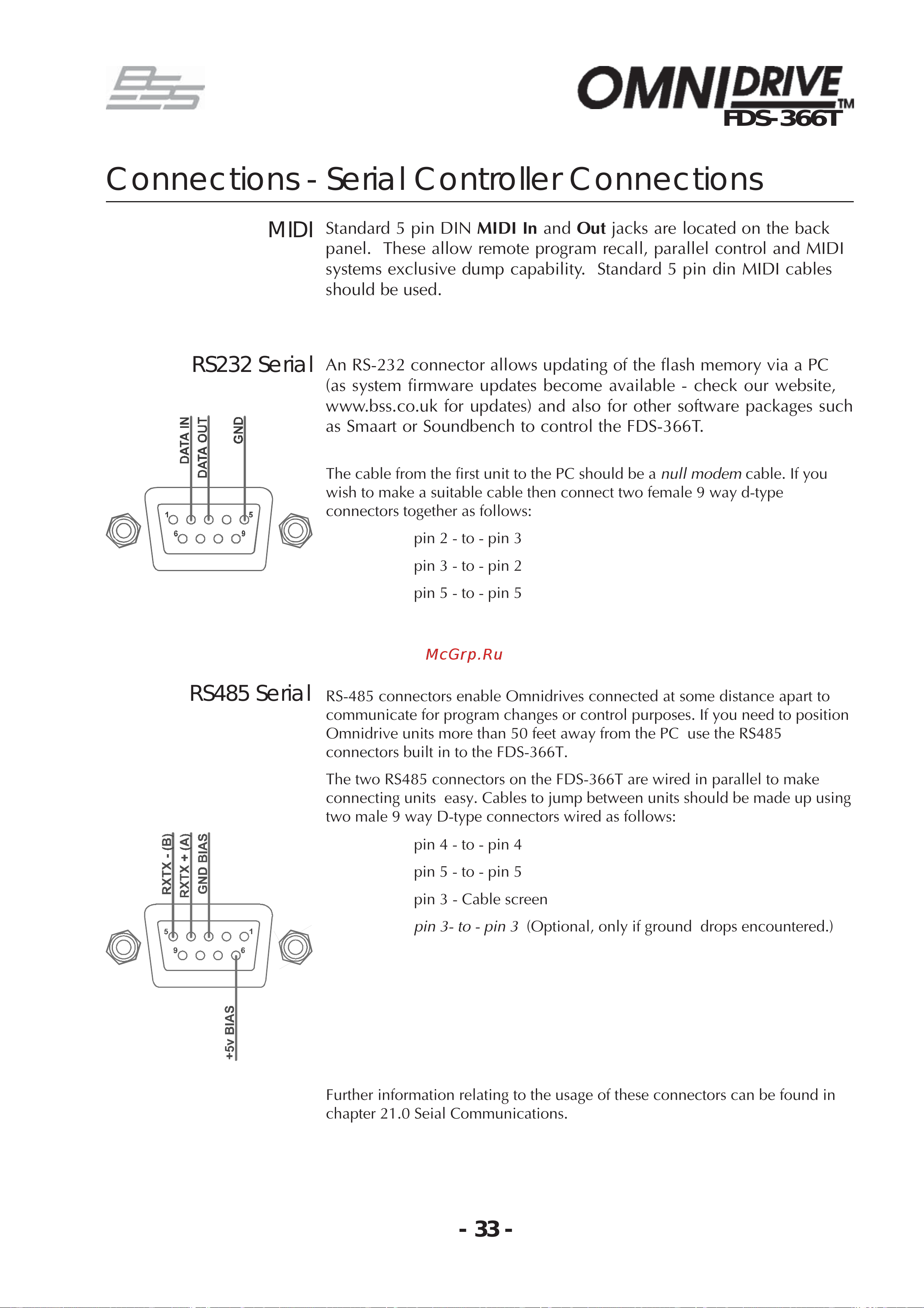

Connections - Serial Controller Connections
MIDI
RS232 Serial
RS485 Serial
RS-485 connectors enable Omnidrives connected at some distance apart to
communicate for program changes or control purposes. If you need to position
Omnidrive units more than 50 feet away from the PC use the RS485
connectors built in to the FDS-366T.
The two RS485 connectors on the FDS-366T are wired in parallel to make
connecting units easy. Cables to jump between units should be made up using
two male 9 way D-type connectors wired as follows:
pin 4 - to - pin 4
pin 5 - to - pin 5
pin 3 - Cable screen
pin 3- to - pin 3 (Optional, only if ground drops encountered.)
Further information relating to the usage of these connectors can be found in
chapter 21.0 Seial Communications.
