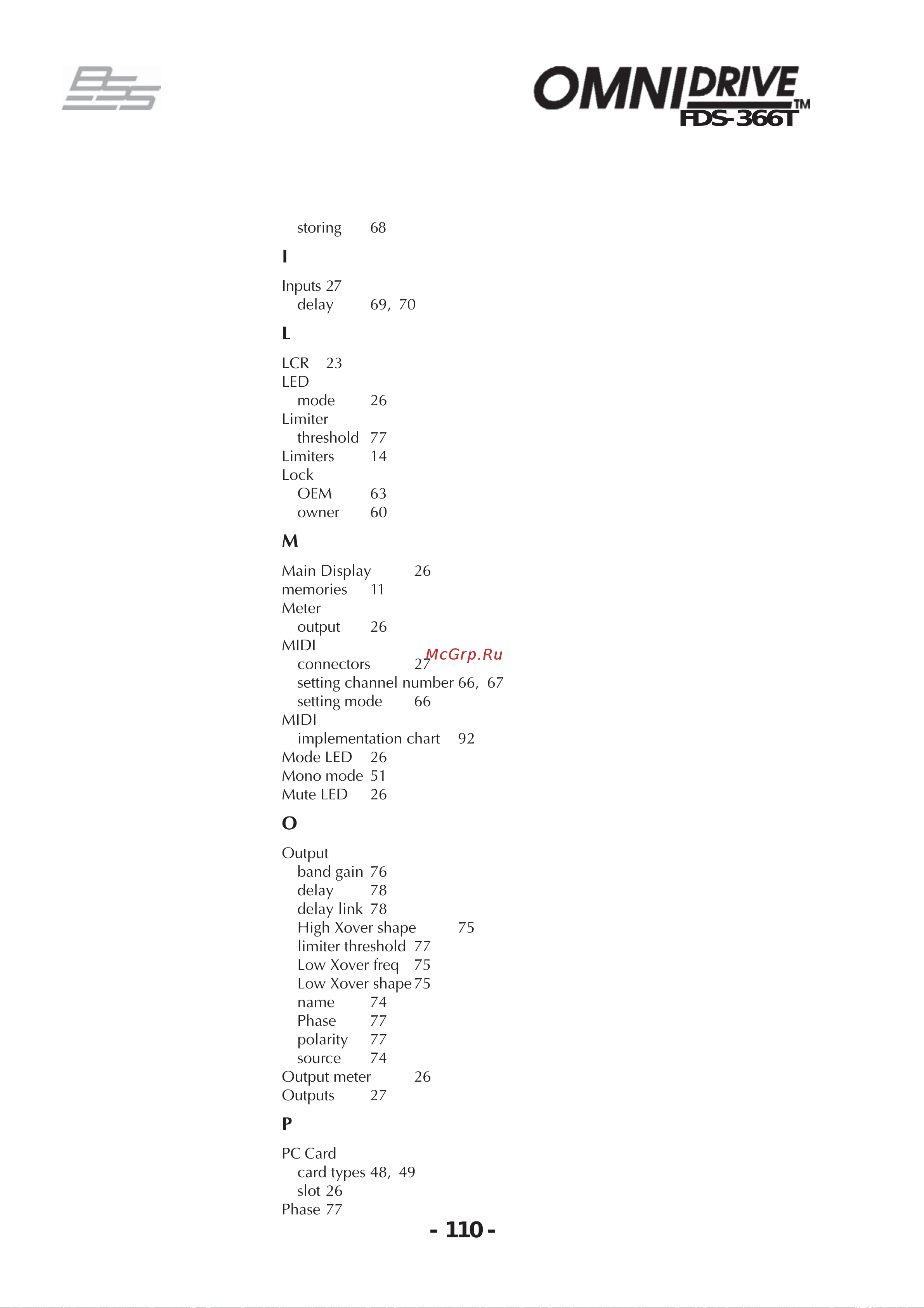

![BSS 366T OmniDrive [110/112] Fds 366t](/views2/2008120/page110/bg6e.png)
- 110 -
FDS-366T
storing 68
I
Inputs 27
delay 69, 70
L
LCR 23
LED
mode 26
Limiter
threshold 77
Limiters 14
Lock
OEM 63
owner 60
M
Main Display 26
memories 11
Meter
output 26
MIDI
connectors 27
setting channel number 66, 67
setting mode 66
MIDI
implementation chart 92
Mode LED 26
Mono mode 51
Mute LED 26
O
Output
band gain 76
delay 78
delay link 78
High Xover shape 75
limiter threshold 77
Low Xover freq 75
Low Xover shape 75
name 74
Phase 77
polarity 77
source 74
Output meter 26
Outputs 27
P
PC Card
card types 48, 49
slot 26
Phase 77
