- 99 -
FDS-366T

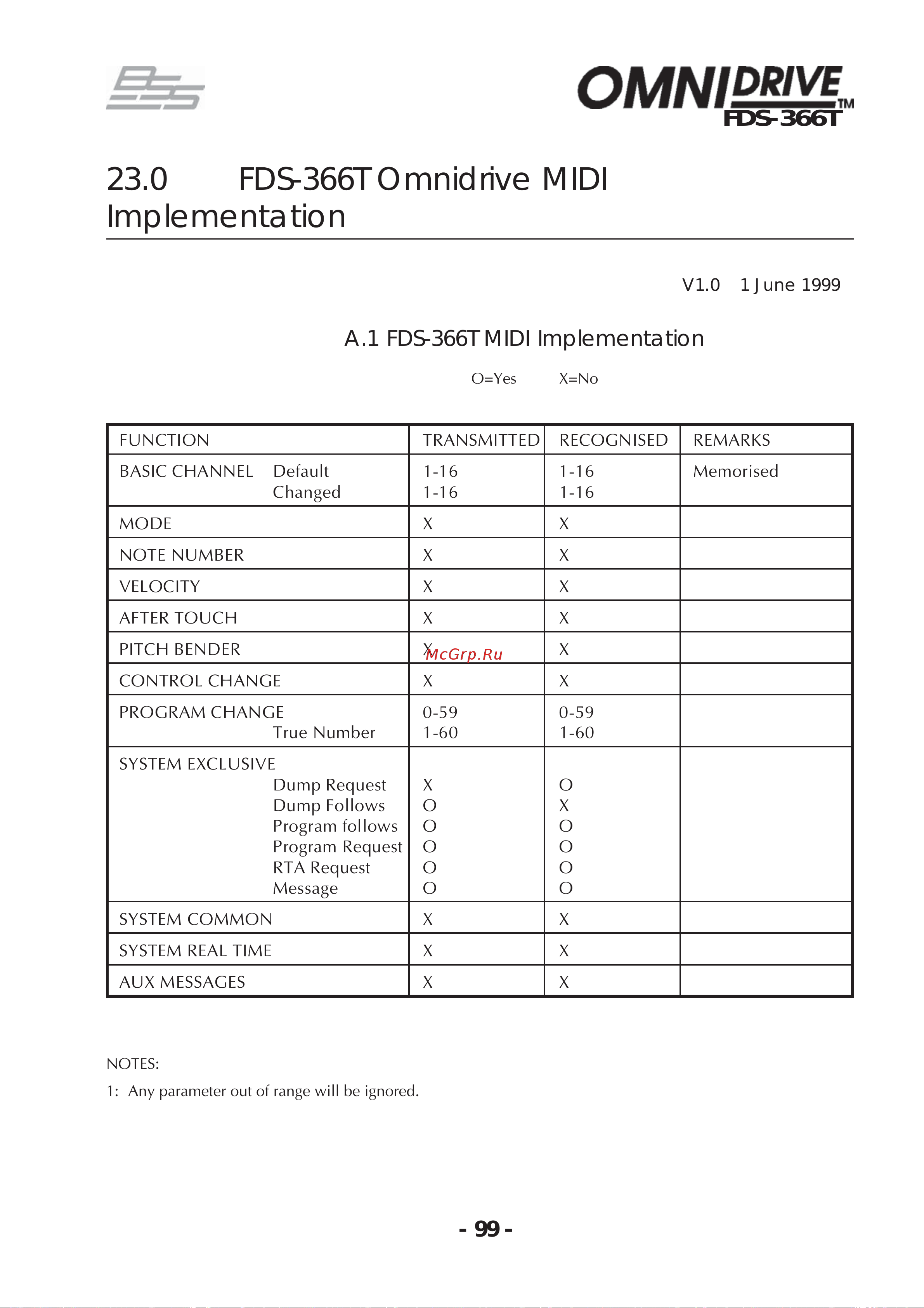

23.0 FDS-366T Omnidrive MIDI
Implementation
A.1 FDS-366T MIDI Implementation
V1.0 1 June 1999
NOTES:
1: Any parameter out of range will be ignored.
O=Yes X=No
FUNCTION TRANSMITTED RECOGNISED REMARKS
BASIC CHANNEL Default 1-16 1-16 Memorised
Changed 1-16 1-16
MODE X X
NOTE NUMBER X X
VELOCITY X X
AFTER TOUCH X X
PITCH BENDER X X
CONTROL CHANGE X X
PROGRAM CHANGE 0-59 0-59
True Number 1-60 1-60
SYSTEM EXCLUSIVE
Dump Request X O
Dump Follows O X
Program follows O O
Program Request O O
RTA Request O O
Message O O
SYSTEM COMMON X X
SYSTEM REAL TIME X X
AUX MESSAGES X X
