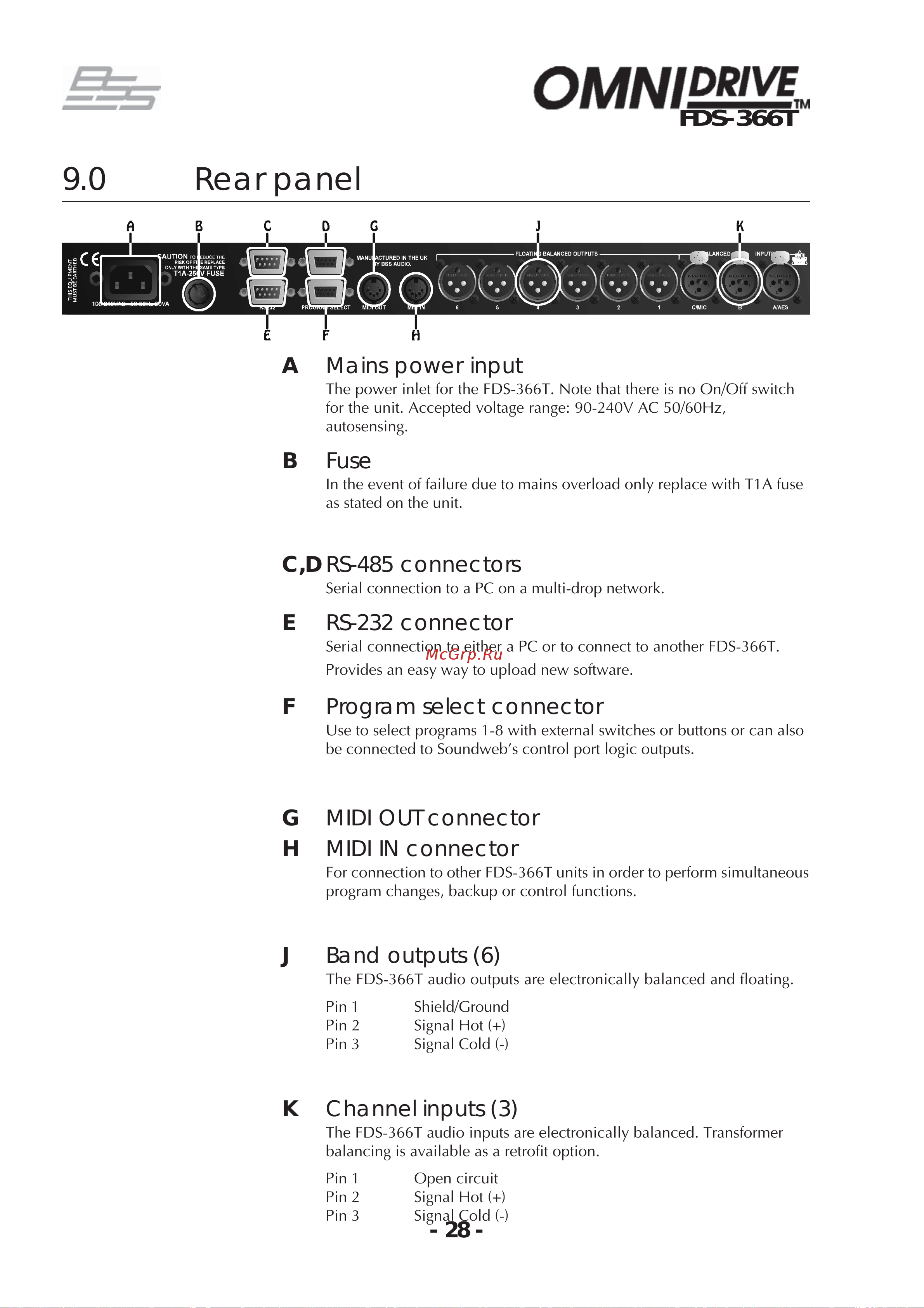

BSS 366T OmniDrive [28/112] Rear panel
![BSS 366T OmniDrive [28/112] Rear panel](/views2/2008120/page28/bg1c.png)
- 28 -
FDS-366T
A Mains power input
The power inlet for the FDS-366T. Note that there is no On/Off switch
for the unit. Accepted voltage range: 90-240V AC 50/60Hz,
autosensing.
B Fuse
In the event of failure due to mains overload only replace with T1A fuse
as stated on the unit.
C,D RS-485 connectors
Serial connection to a PC on a multi-drop network.
E RS-232 connector
Serial connection to either a PC or to connect to another FDS-366T.
Provides an easy way to upload new software.
F Program select connector
Use to select programs 1-8 with external switches or buttons or can also
be connected to Soundweb's control port logic outputs.
G MIDI OUT connector
H MIDI IN connector
For connection to other FDS-366T units in order to perform simultaneous
program changes, backup or control functions.
J Band outputs (6)
The FDS-366T audio outputs are electronically balanced and floating.
Pin 1 Shield/Ground
Pin 2 Signal Hot (+)
Pin 3 Signal Cold (-)
K Channel inputs (3)
The FDS-366T audio inputs are electronically balanced. Transformer
balancing is available as a retrofit option.
Pin 1 Open circuit
Pin 2 Signal Hot (+)
Pin 3 Signal Cold (-)
9.0 Rear panel
