- 18 -
FDS-366T

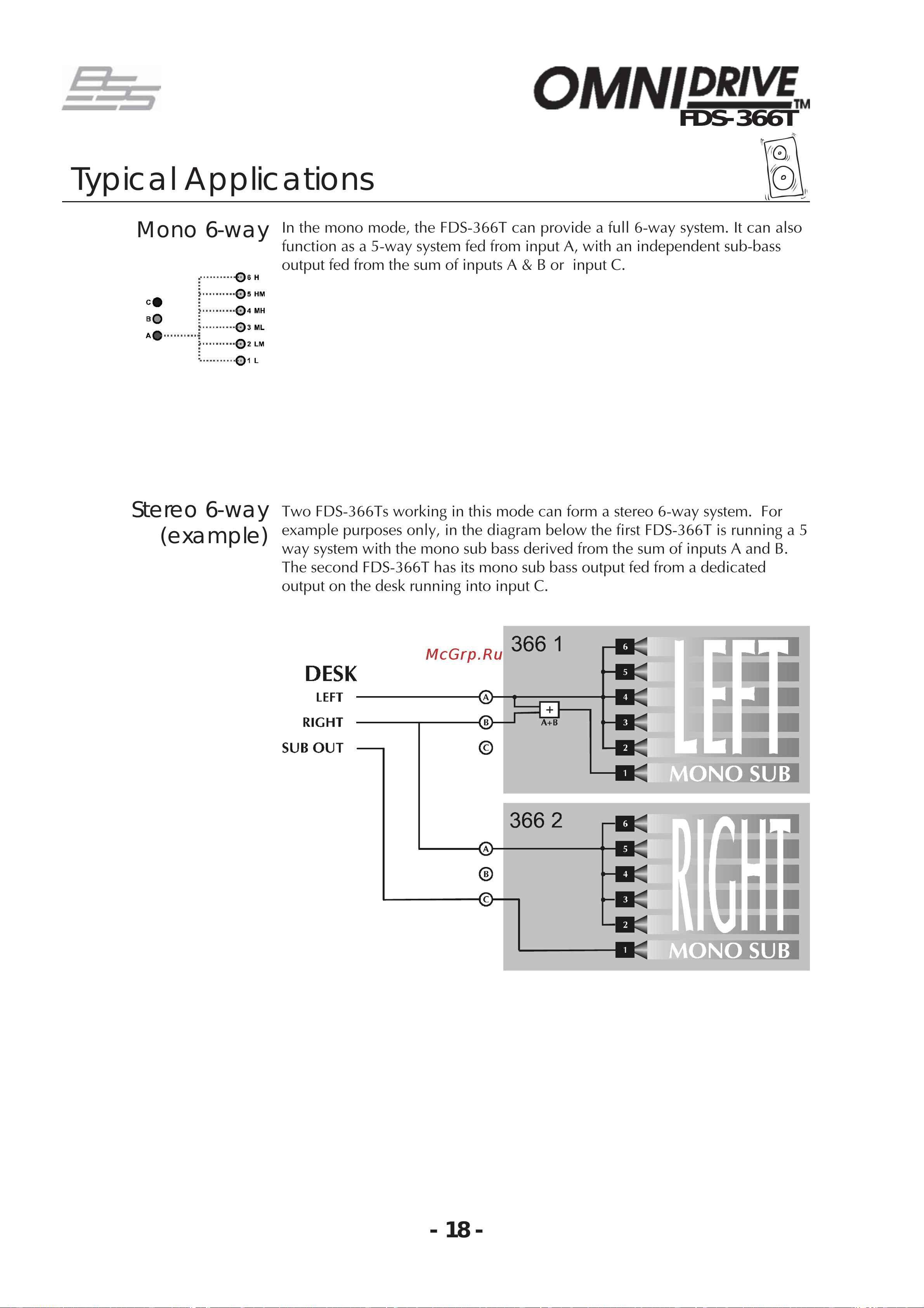

In the mono mode, the FDS-366T can provide a full 6-way system. It can also
function as a 5-way system fed from input A, with an independent sub-bass
output fed from the sum of inputs A & B or input C.
Two FDS-366Ts working in this mode can form a stereo 6-way system. For
example purposes only, in the diagram below the first FDS-366T is running a 5
way system with the mono sub bass derived from the sum of inputs A and B.
The second FDS-366T has its mono sub bass output fed from a dedicated
output on the desk running into input C.
Mono 6-way
Typical Applications
j
Stereo 6-way
(example)
