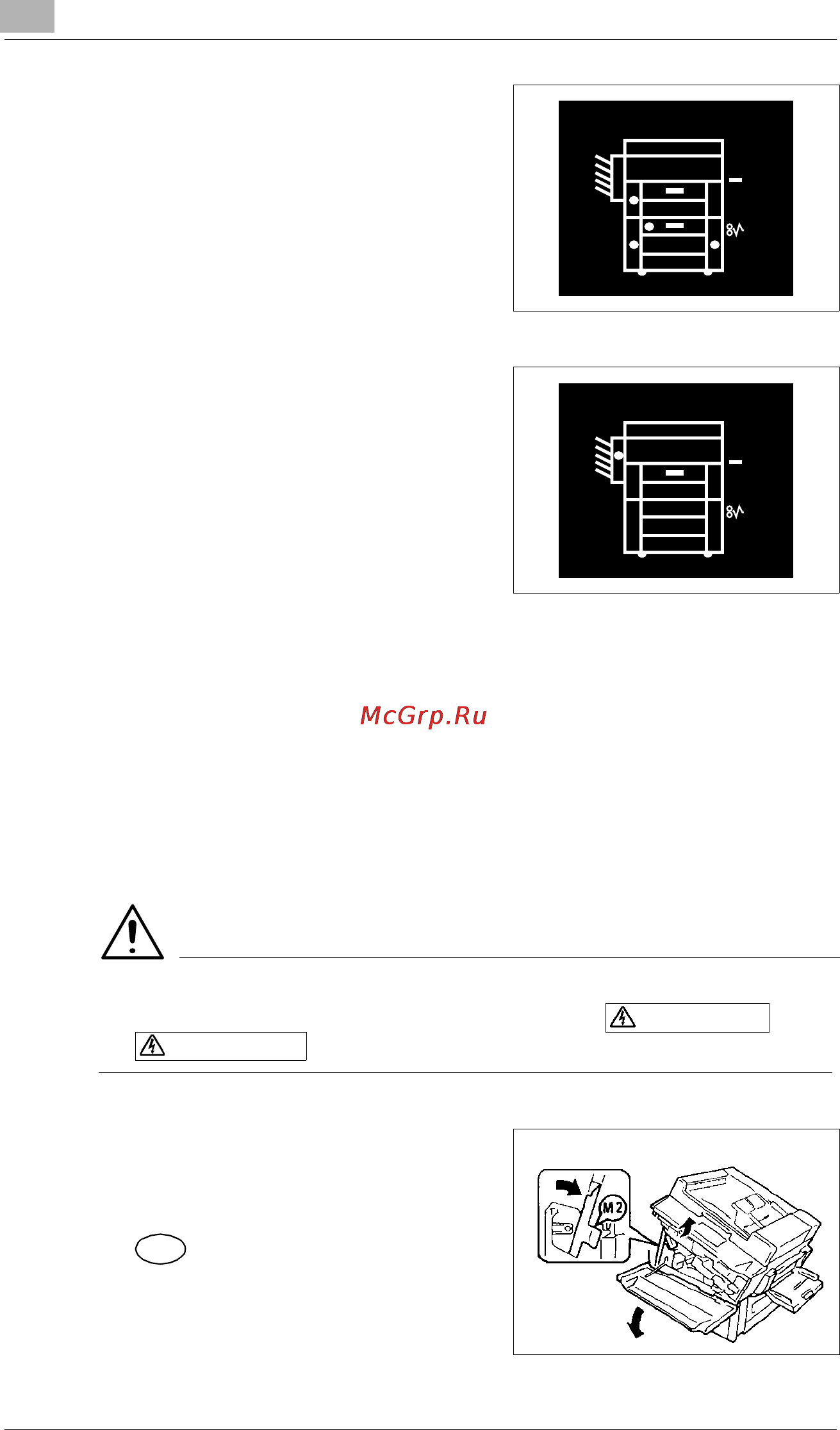

Konica Minolta EP2030 [104/151] Misfeed clearing procedures

When an Indicator Lights Up

5-16 EP2030

 Duplex Unit, see page 5-23.

 Sorter/Staple Sorter,

seepage5-28.

There is a misfeed at that location where the red indicator (•) is blinking.

There might be a sheet of paper stopped at that location where the red

indicator (•) lights up.

Misfeed Clearing Procedures

Copier (Fusing/Transport Section)

NOTE

è Be careful not to touch the areas marked with and

with bare hands

1 Open the Front Door. Turn the Lock

Release Lever clockwise counter to

unlock and swing up the Upper Half

of the copier. Then lock Stopper

High Voltage

Caution: HOT
