2
Allgemeine Informationen über das Kopiersystem
2-2 EP2030

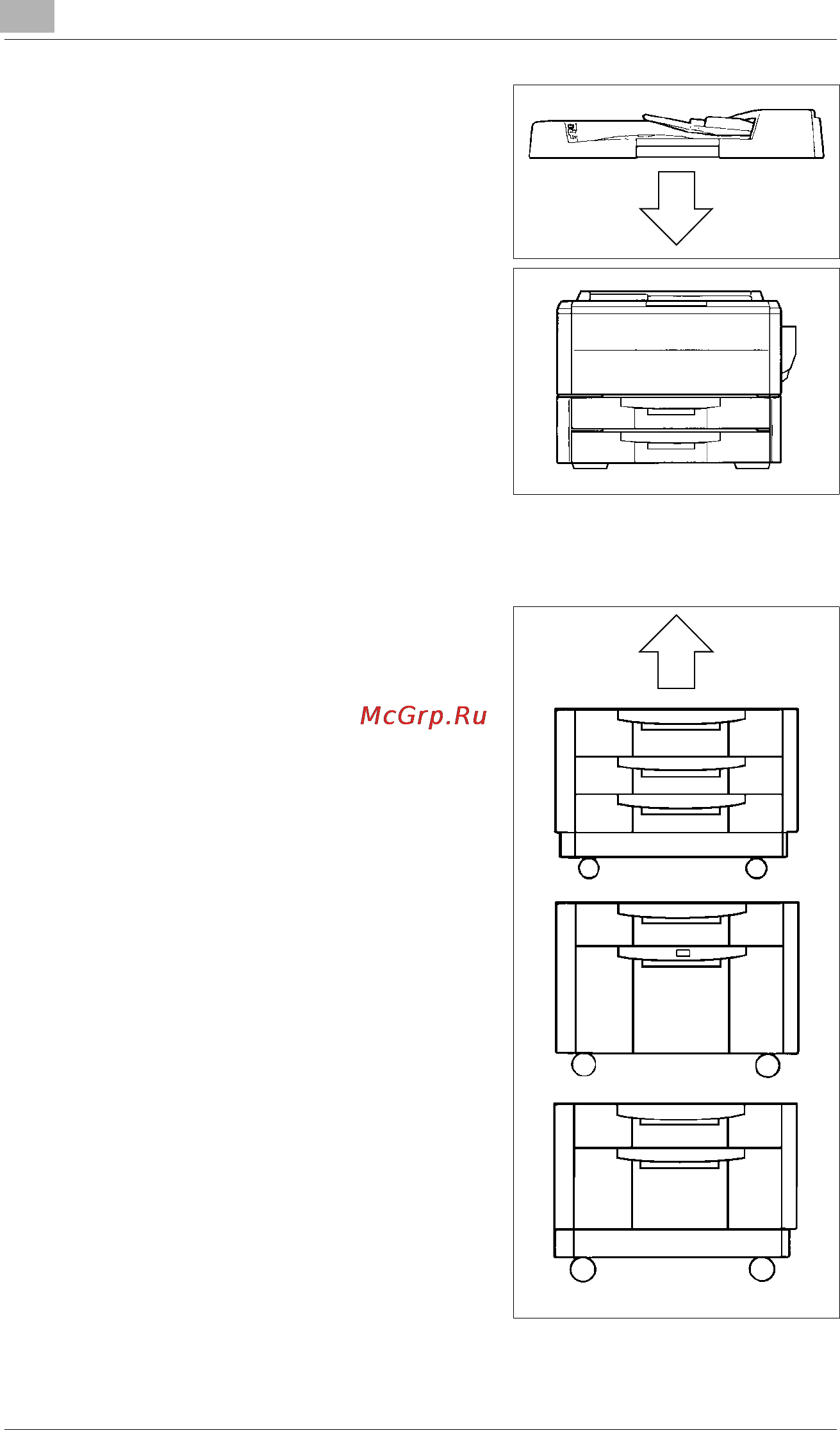

Duplex-Originaleinzug AFR-12
<Zubehör>
Zieht Originale automatisch ein und
kann zweiseitige Originale wenden.
EP2030
Der EP2030 ist mit zwei Papiermaga-
zinen und einer Einzelblattanlage aus-
gestattet, diemitbiszu550Blatt Papier
gefüllt werden können. Mit der Einzel-
blattanlage können Sie Kopien auf Pa-
piererstellen,das inkeinem der Papier-
magazine eingelegt ist, sondern ma-
nuell über dieseAnlageeingeführt wird.
Papiermagazinunterschrank PF-206
<Zubehör>
Jedes der beiden Papiermagazine
kann mit bis zu 1.000 Blatt Papier
(80 g/m
2
) gefüllt werden.
Papiermagazinunterschrank PF-112
<Zubehör>
Faßt bis zu 2.500 Blatt Kopierpapier
(80 g/m
2
).
Duplexunterschrank PF-6D
<Zubehör>
Mit einer Duplexeinheit können
zweiseitige Kopien erstellt werden.
Zusätzlich können Sie in dem
vorhandenen Unterschrank
Verbrauchsmaterialien lagern.
