2

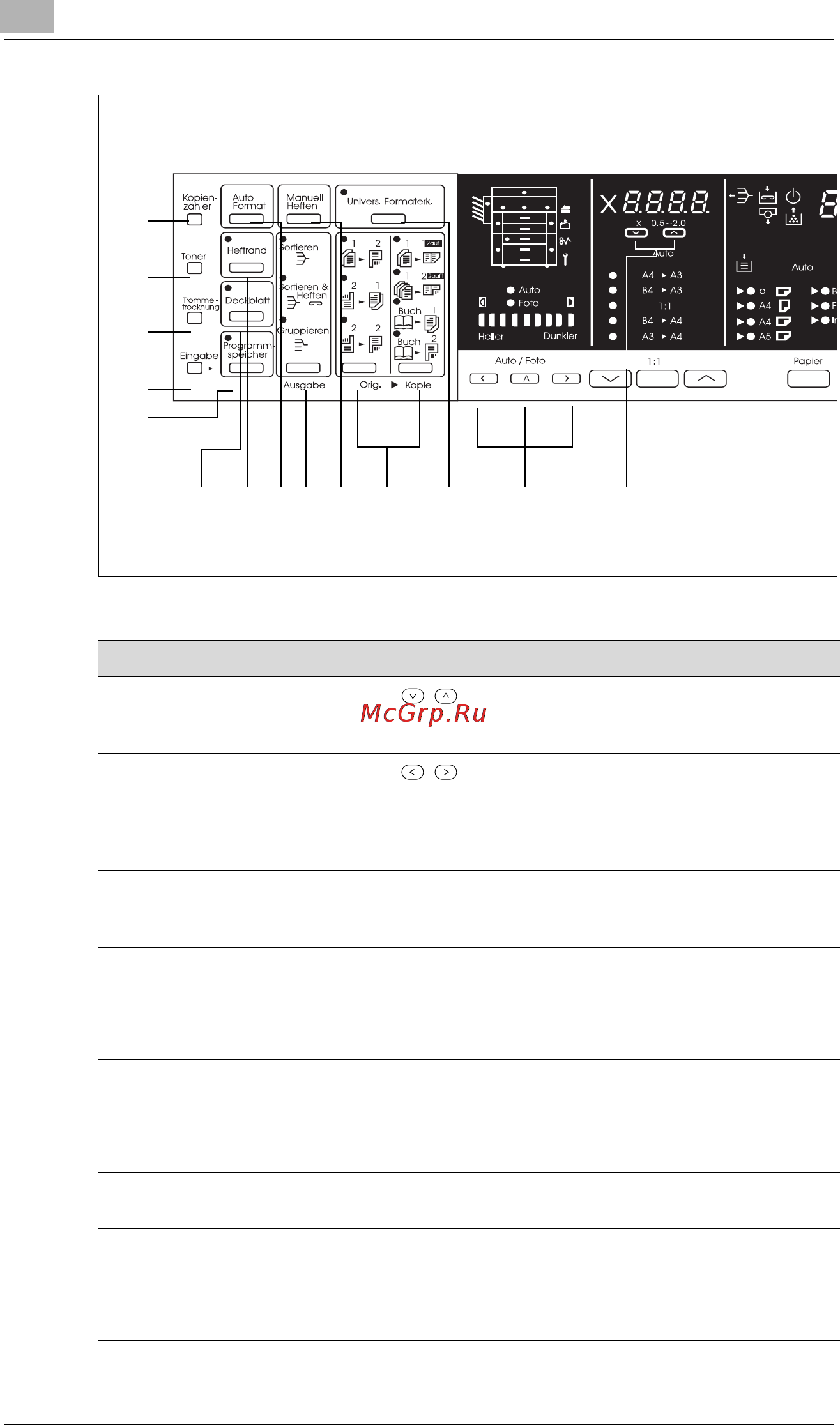

Allgemeine Informationen über das Kopiersystem
2-10 EP2030
Pos. Bezeichnung Erklärung
11 Vergrößerungs-/
Verkleinerungstasten
: Drücken Sie diese, um den Reprofaktor in
0,001-Schritten im Bereich von ×0,500 bis ×2,000 zu
ändern (siehe Seite 3-20).
12 Belichtungsregler : Drücken Sie diese, um die Belichtungseinstel-
lung bei der manuellen Belichtung zu ändern.
A: Drücken Sie diese, um zwischen automatischer,
manueller und Fotobelichtung zu wechseln
(siehe Seite 3-22).
13 Taste UNIVERSAL-
FORMATER-
KENNUNG
DrückenSie diese,umFormate mit dem automatischen
/ Duplex-Originaleinzugzu erstellen, wenn Originale un-
terschiedlichen Formats vorliegen (siehe Seite 3-10).
14 Taste ORIG.
Ö KOPIE Drücken Sie diese, um den gewünschten Kopiervor-
gang auszuwählen (siehe Seite 3-23).
15 Taste
MANUELL HEFTEN
Mit dieser Taste können bereits erstellte Kopien nach-
träglich geheftet werden (siehe Seite 3-31).
16 Taste AUSGABE Drücken Sie diese, um die gewünschte Ausgabefunk-
tion auszuwählen (siehe Seite 3-30).
17 Taste AUTO FORMAT Drücken Sie diese bei Bedarf, um die automatische For-
matwahl auszuwählen, (siehe Seite 3-19).
18 Taste HEFTRAND Drücken Sie diese, um die Heftrandfunktion zu
aktivieren (siehe Seite 3-35).
19 Taste DECKBLATT Drücken Sie diese, um die Deckblattfunktion zu
aktivieren (siehe Seite 3-37).
20 Taste PROGRAMM-
SPEICHER
Drücken Sie diese, um ein gespeichertes Kopierpro-
gramm wieder aufzurufen (siehe Seite 2-18).
111213141516171819
20
21
22
23
24
