Konica Minolta EP2030 [114/151] Automatic document feeder

When an Indicator Lights Up

5-26 EP2030

Automatic Document Feeder

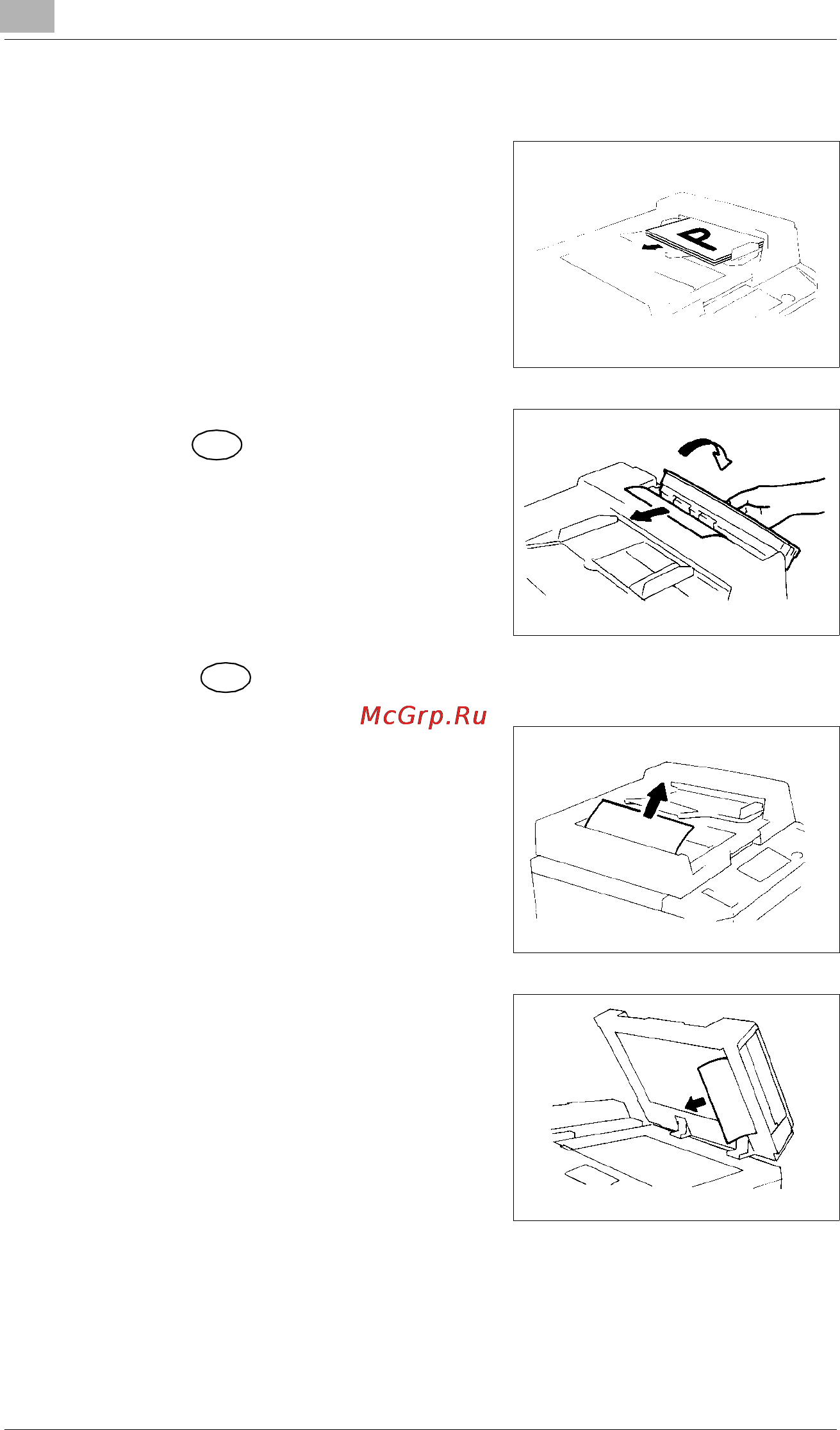

1 Remove the original stack from the

Document Feed Tray.

2 Swing open Document Feed Unit

Door and gently pull out the

original.

3 Close .

4 Carefully pull out the original from

the Document Exit Unit.

5 Raise the Automatic Document

Feeder. Opening the Document

Feed Unit Guide Plate, gently pull

out the original from the Unit.
