Making Copies
3
EP2030 3-1
3 Making Copies
3.1 Basic Copying Overview
Place the original in position (step 1), set the number of copies to be
made (step 9), and press the Start Key (step 10). This will allow you to
make a full-size copy or copies on paper of the same size as the
original.
Automaticallyselected inthe initialmode are AutoPaper, full size, and
Auto Exposure.
The selections will change the exposure level, zoom ratio, the type of
copy and so on.

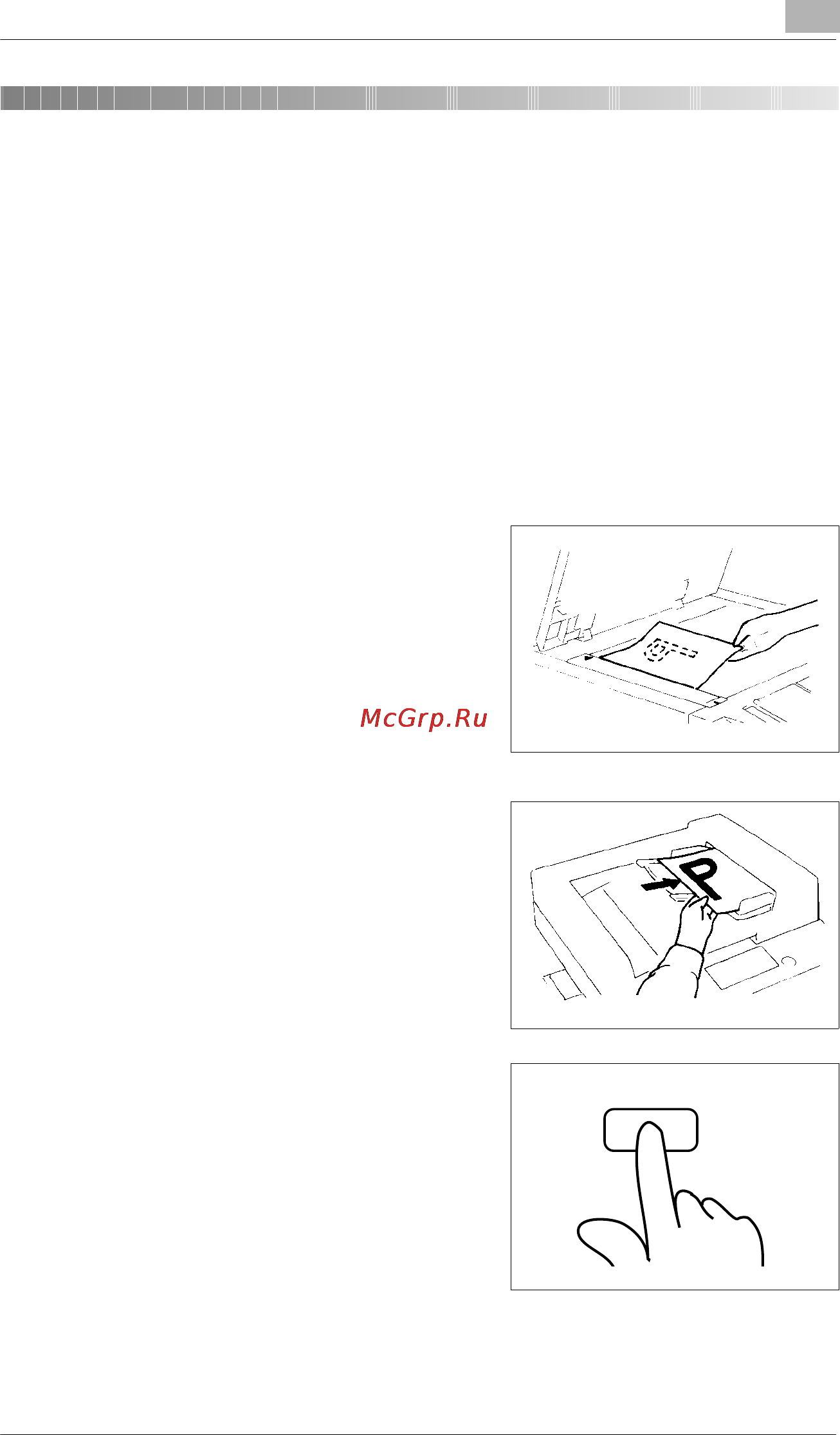

1 Placing the Original
è Raise the Original Cover and
place the original face down on
the Original Glass,
seepage3-4.
è Load the originals face up in the
Automatic/DuplexingDocument
Feeder, see page 3-9.
2 To change the copy paper size
è Press the Paper Select Key to
select the desired paper size,
seepage3-16.
Paper
