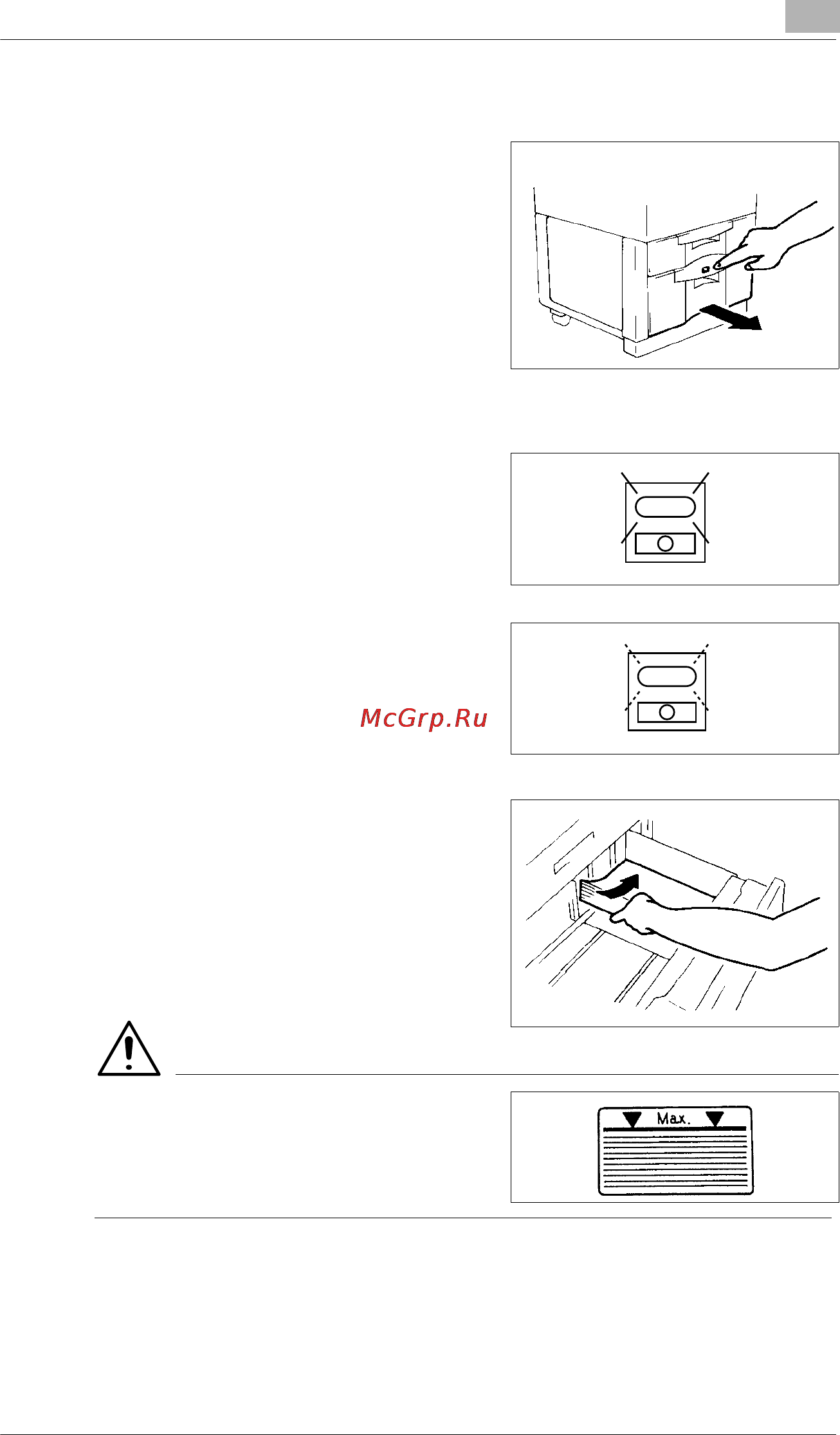

Konica Minolta EP2030 [93/151] Rd drawer

When an Indicator Lights Up

EP2030 5-5

3rd Drawer

1 Press the Paper Descent Key. This

releases the 3rd Drawer, allowing

youtoslideitoutofthecopier.v

 Indication of the Paper Descent Key

 Steady Light:

The 3rd Drawer has run out of

paper,whenadrawerotherthan

the 3rd is currently selected for

use.

 Blinking Light:

The 3rd Drawer has run out of

paper, when the 3rd Drawer is

currently selected for use.

2 Load the paper stack into the right

half of the Drawer, front side face

down.Pressthe leading edgeof the

paper stack tightly up against the

right side of the Drawer.

NOTE

è The paper should be loaded no

higher than the Ä (Max. Level

Indicator).
