Using the User Mode

EP2030 4-1

4 Using the User Mode

4.1 Meter Count

This function allows you to check the total count of each of the four

different counters.

Total

Shows the totalnumberofcopies madesince theinstallation of the copier.

Size

Shows the number of copies made on copy paper of a preset size.

(The size will be set by your Technical Representative.)

2-Sided Total

Shows the number of 2-sided copies made.

2-Sided Size

Shows the number of 2-sided copies made on the copy paper of a preset

size (the same size as set for “Size”).

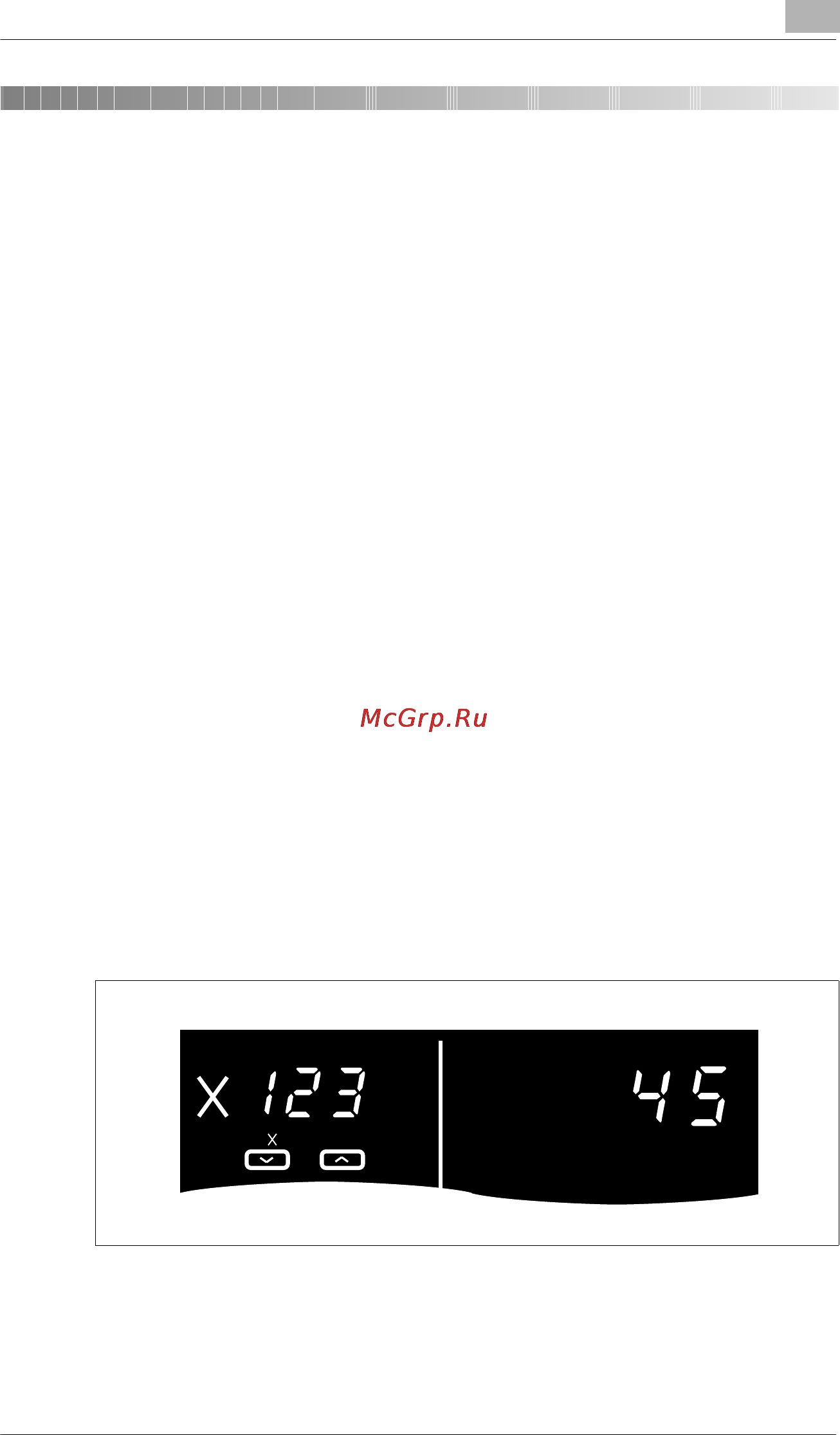

Counter Display

The Zoom Ratio Indicator shows the upper 3 digits of the count and the

Multi-Copy Display shows the lower 2 digits of the count.

Example : The count is 12,345 (copies).

0.5~2.0
