When an Indicator Lights Up

5-18 EP2030

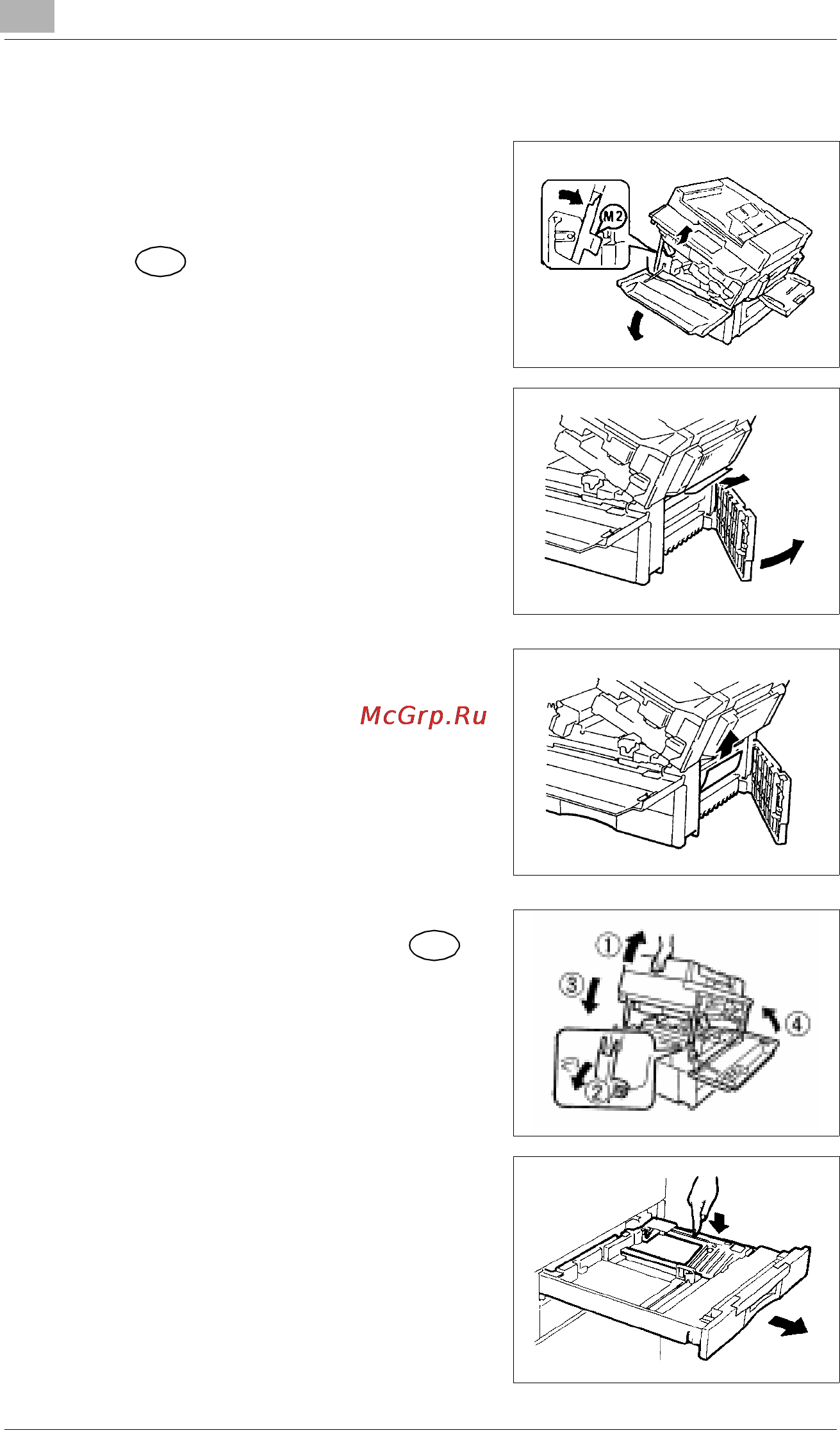

Copier (Paper Take-Up Section)

1 Open the Front Door. Turn the Lock

Release Lever clockwise counter to

unlock and swing up the Upper Half

of the copier. Then lock Stopper

2 Open the Right Door and pull out

the sheet of paper from the Multi

Bypass Port.

3 Pull out the sheet of paper from the

Paper Take-Up Section and close

the Right Door.

4 Slightly lift up the Upper Half of the

copier and unlock Stopper .

Gently swing down and lock the

Upper Half of the copier. Then,

close the Front Door.

5 Slideoutthe Drawerandunloadthe

paper from the Drawer. Next, push

down the Paper Lifting Plate.
