Konica Minolta EP2030 [45/151] Loading the originals

Making Copies

EP2030 3-9

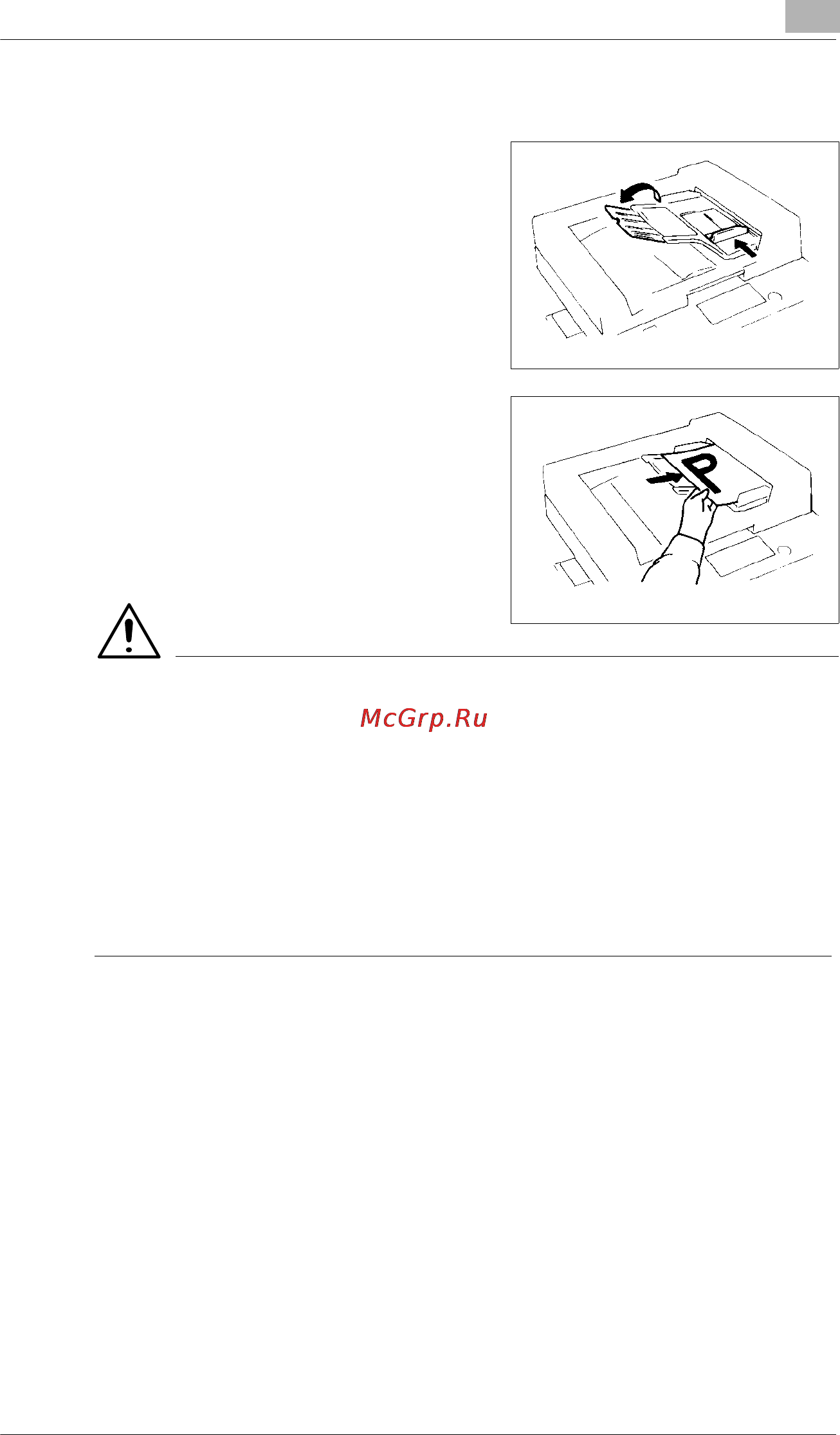

Loading the Originals

1 Slide the Document Guide Plate to

the size of the originals.

When using large size originals, flip

up the Document Feed Tray

Extender.

2 Load a neat stack of originals face

up on the Document Feed Tray.

NOTES

è The maximum number of originals that can be loaded:

A4 or smaller: Up to 50

A3 or B4: Up to 30

è Make sure that the top level of the original stack does not exceed the

Ä marking.

è Make sure that the Document Guide Plate is in touch with the edges

of the original stack. If it’s not pressed snugly against the original

stack, skewed feeding could result.
