Konica Minolta EP2030 [97/151] When the staples will soon run out the add staples indicator lights up

When an Indicator Lights Up

EP2030 5-9

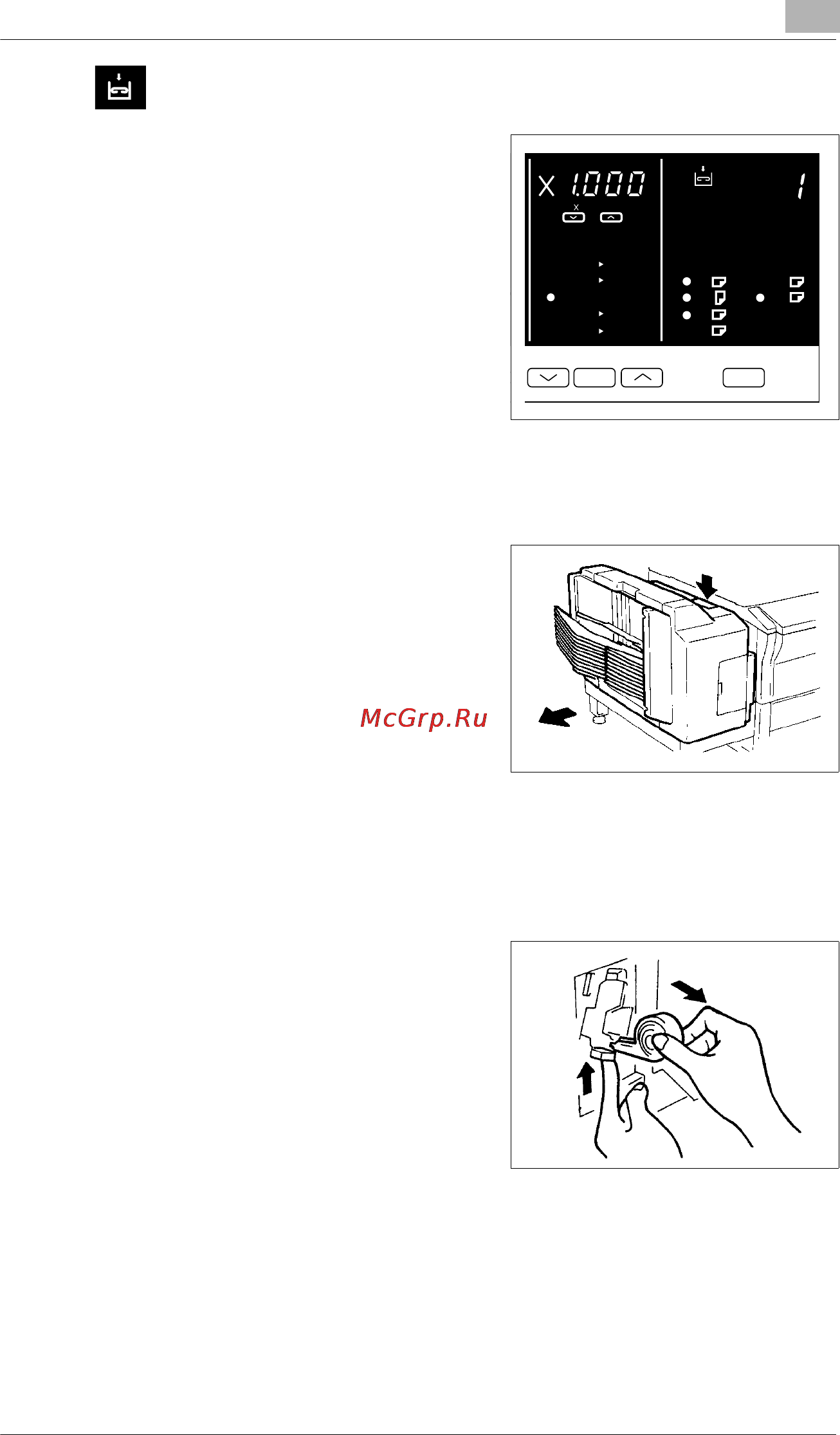

5.3 When the Add Staples Indicator Lights Up

When the staples will soon run out, the

Add Staples Indicator lights up.

Replace the Staple Cartridge with a

new one by following the procedure

given below.

Replacing the Staple Cartridge

1 Press the Lock Release Leverof the

Staple Sorter and slide it away from

the copier.

2 Open the Stapler Door.

3 While lifting the Lever upward, pull

the Staple Cartridge out of its port.

FLS.

Inch

Auto

0.5~2.0

Auto

Full Size

Full Size Paper

B4 A3

B4 A4

A3 A4
