When an Indicator Lights Up

5-10 EP2030

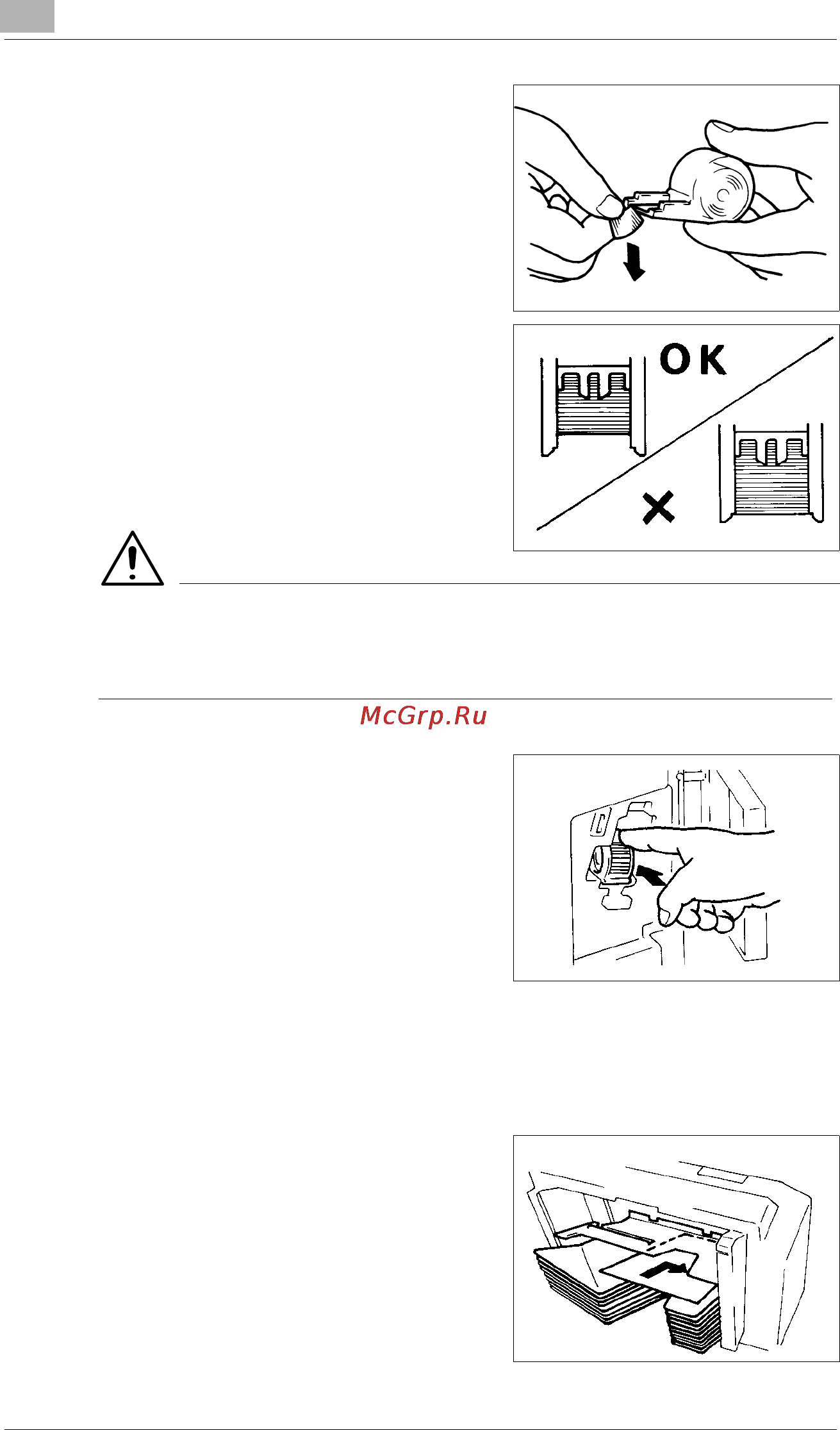

4 Pull thestaple beltabout 3 cmoutof

the new Staple Cartridge and break

off that portion.

NOTE

è Check that no portion of the staple belt hangs out of the Cartridge.

Break off any portion of the belt that hangs out of the Cartridge.

5 Insert thenewStapleCartridge until

it clicks into position.

6 ClosetheStaplerDoorandslidethe

Staple Sorter back against the

copier.

7 Place a sheet of paper into the 1st

Bin of the Staple Sorter.
