When an Indicator Lights Up
5
EP2030 5-29

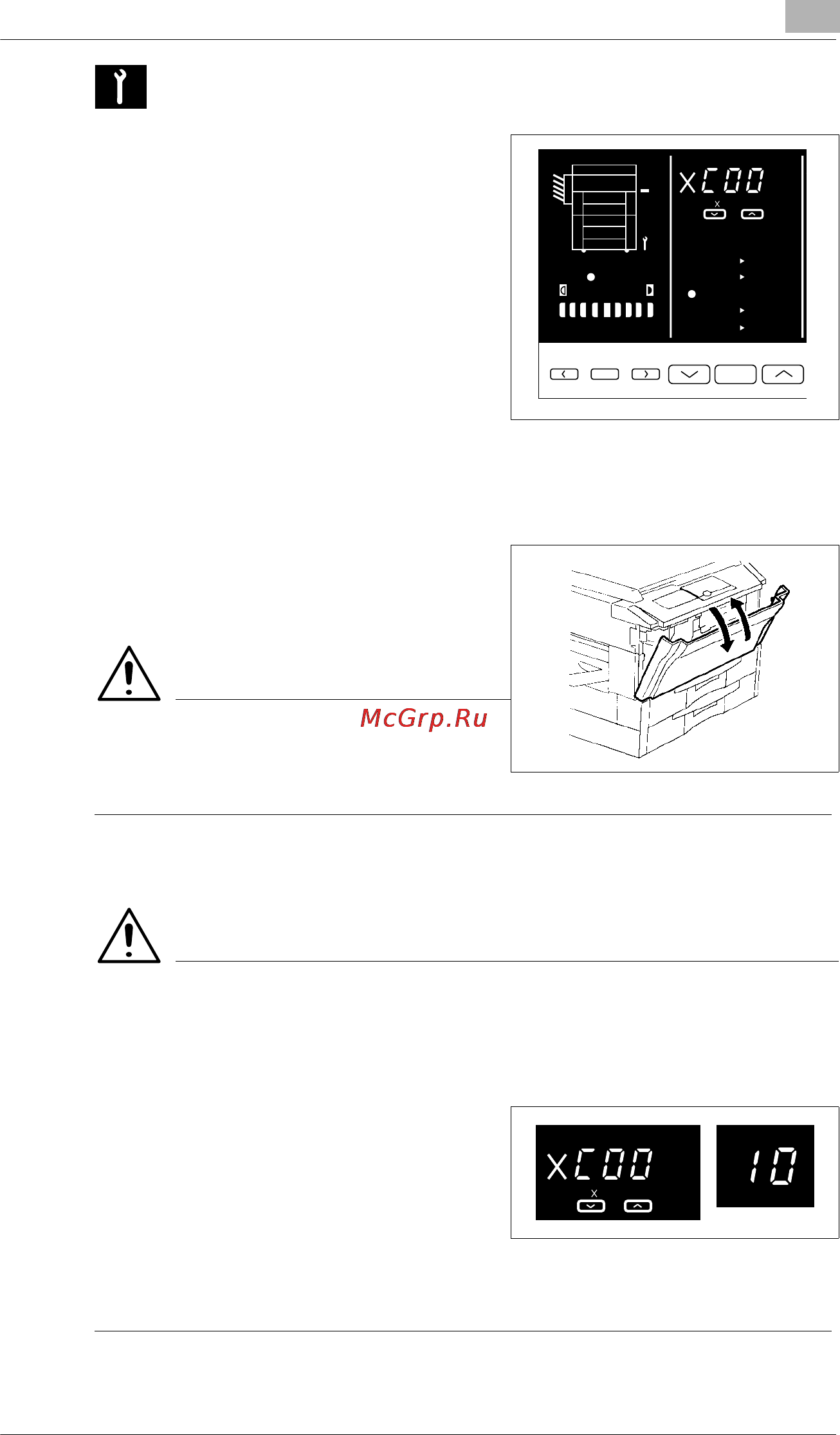

5.6 When the Call-Tech.-Rep. Indicator Lights Up
When a malfunction occurs in the
copier, the Call-Tech.-Rep. Indicator
lights up and the corresponding
malfunction code appears across the
Zoom Ratio Indicator and Multi-Copy
Display.Atthis time,the StartKeyturns
to orange and you cannot start a new
copy cycle.
Try to clear the Call-Tech.-Rep.
Indicator by following the instructions
below.
Resetting the Call-Tech.-Rep. Indicator
1 Open the Front Door, then close it.
This will reset the Call-Tech.-Rep.
Indicator.
NOTE
è Carry out this procedure with the
Power Switch turned ON.
If the Call-Tech.-Rep. Indicator lights up again, call your Technical
Representative immediately.
NOTES
è When calling your Technical Representative, give him or her the
malfunction code shown across the Zoom Ratio Indicator and Multi-
Copy Display.
<Example> Malfunction Code:
C0010
è After calling your Technical Representative, turn OFF the Power
Switch and unplug the power cord.
A
A
A
Lighter Darker
A
0.5~2.0
A4
Full Size
A3
Full Size
B4 A3
B4 A4
A3 A4
A
Auto
Auto / Photo
0.5~2.0
