Konica Minolta EP2030 [19/151] Übersicht

Allgemeine Informationen über das Kopiersystem

EP2030 2-1

2 Allgemeine Informationen über das

Kopiersystem

2.1 Übersicht

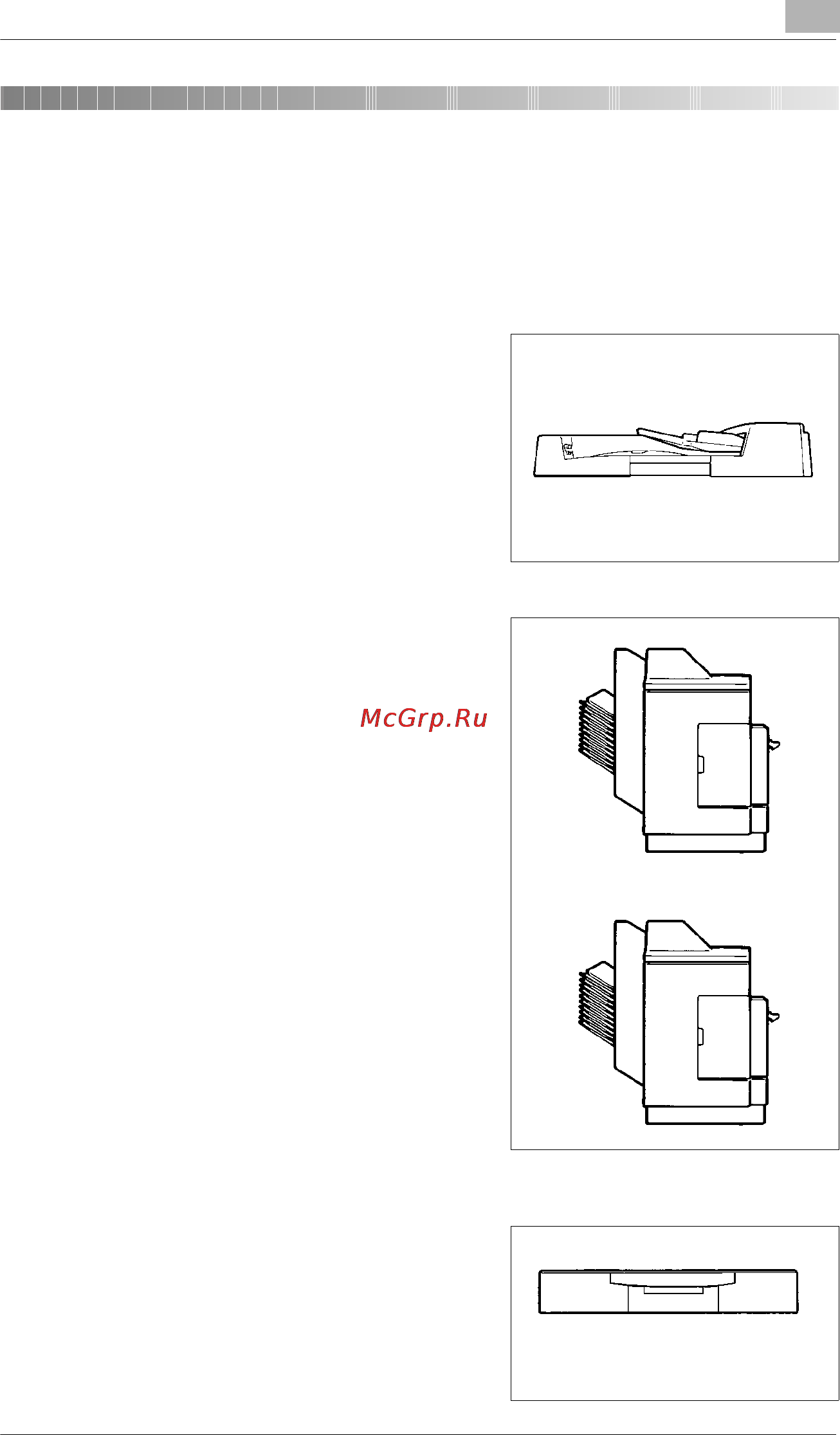

Automatischer Originaleinzug AF-5

<Zubehör>

Erlaubt den automatischen Einzug

mehrerer Originale.

Zehnfach-Sorter S-106 <Zubehör>

Sortiert oder gruppiert Kopien in bis zu

10 Kopiensätze.

Heftsorter ST-104 <Zubehör>

Sortiert oder gruppiert Kopien

automatisch in bis zu zehn

Kopiensätze, die auch geheftet werden

können.

Duplexeinheit AD-11<Zubehör>

Erstellt zweiseitige Kopien.
