3
Making Copies
3-28 EP2030

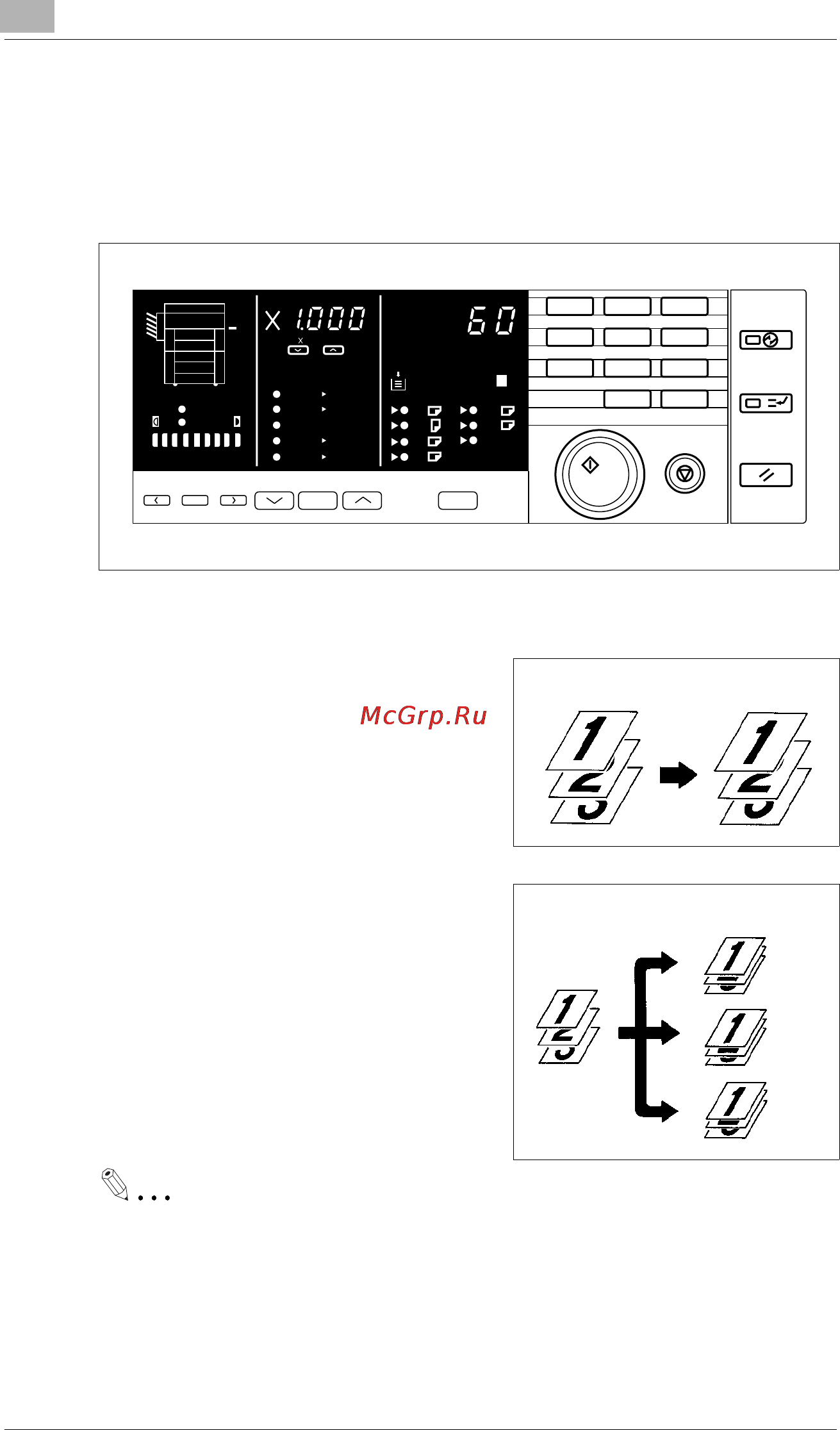

3.8 Finishing Mode
Pressing the Finishing Key can select the desired finishing mode.
There are five different finishing modes. Select the one according to your
needs.
Finishing Modes
Non-Sort
All copies are fed out onto the 1st Bin,
without being sorted, grouped, or
stapled.
Sort
This mode is effective when making
multiple copies from multiple originals.
Copies are sorted into complete sets of
the originals.
(Only when the Sorter or Staple Sorter
is mounted.)
Useful Tip
The copier has been factory-set to automatically select Non-Sort.
Also, the copier automatically switches between the Sort and Non-Sort
mode depending on the number of originals loaded in the Automatic
Document Feeder. User’s Choice can, however, be used to change
this default setting, see page 4-4.
A3
A4
A4
B4
FLS.
Inch
Auto
S
Lighter Darker
A
0.5~2.0
Auto
A4
Full Size
A3
Full Size Paper
123
456
789
0C
B4 A3
B4 A4
A3 A4
A5
Auto
Auto / Photo
CopiesOriginals
CopiesOriginals
1st Bin
2nd Bin
3rd Bin
