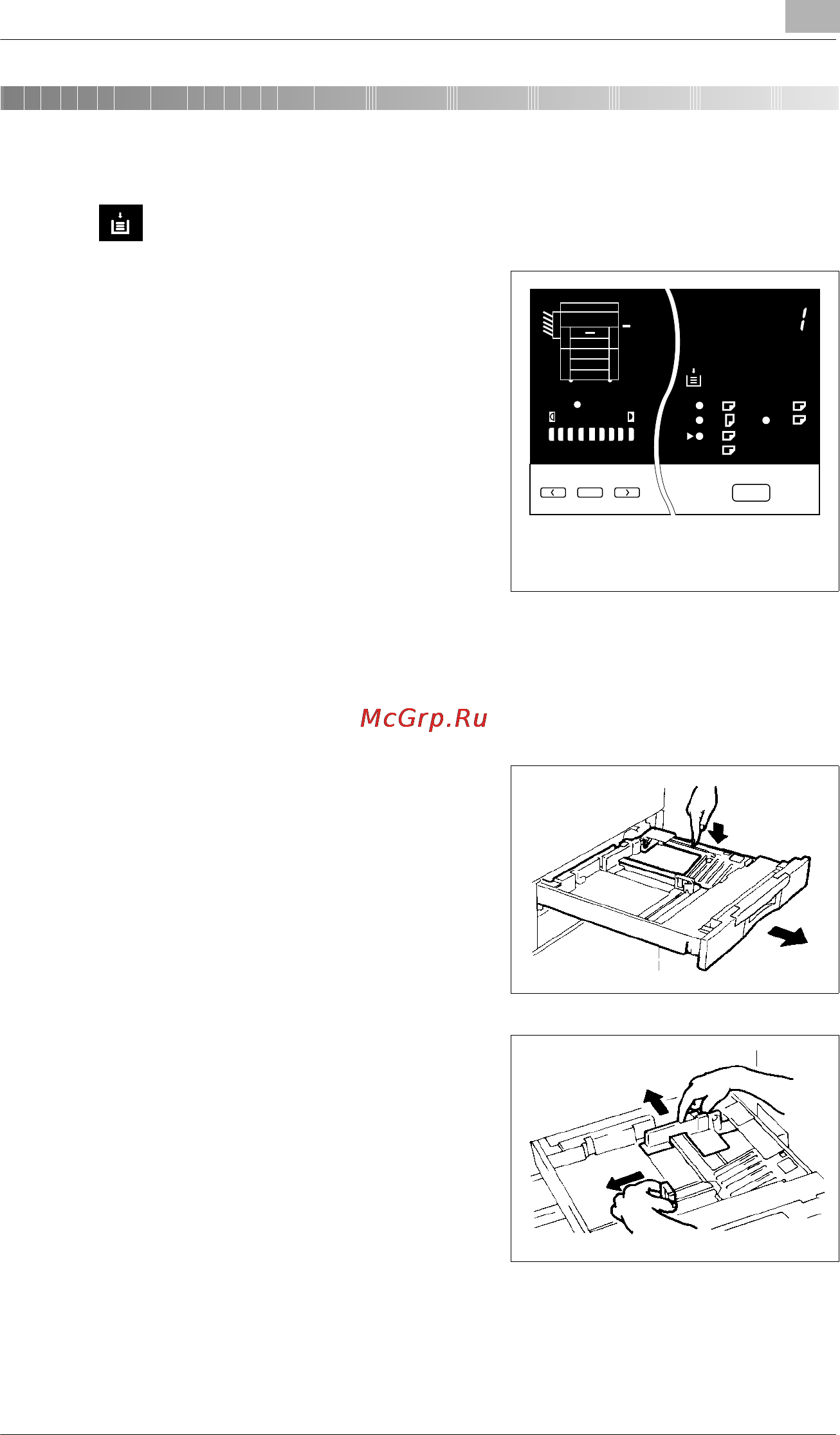

Konica Minolta EP2030 [89/151] When an indicator lights up

When an Indicator Lights Up

EP2030 5-1

5 When an Indicator Lights Up

5.1 When the Add Paper Indicator Lights Up

When the Drawer currently selected for

usehasrunoutofpaper,the AddPaper

Indicator lights up. At this time, you

cannot start a new copy cycle.

Use the following procedure to load

paper into the Drawer.

Adding Paper

1st Drawer

1 Slide out the 1st Drawer and press

down the Paper Lifting Plate.

2 Slide out the Edge Guides.

FLS.

Inch

Auto


Lighter Darker

Paper

Auto

Auto / Photo

Example: 1st Drawer has run

out of paper.
