Konica Minolta EP2030 [66/151] Selecting the finishing mode

Making Copies

3-30 EP2030

Selecting the Finishing Mode

Sort/Sort-and-Staple/Group Mode

(To sort or group copies.)

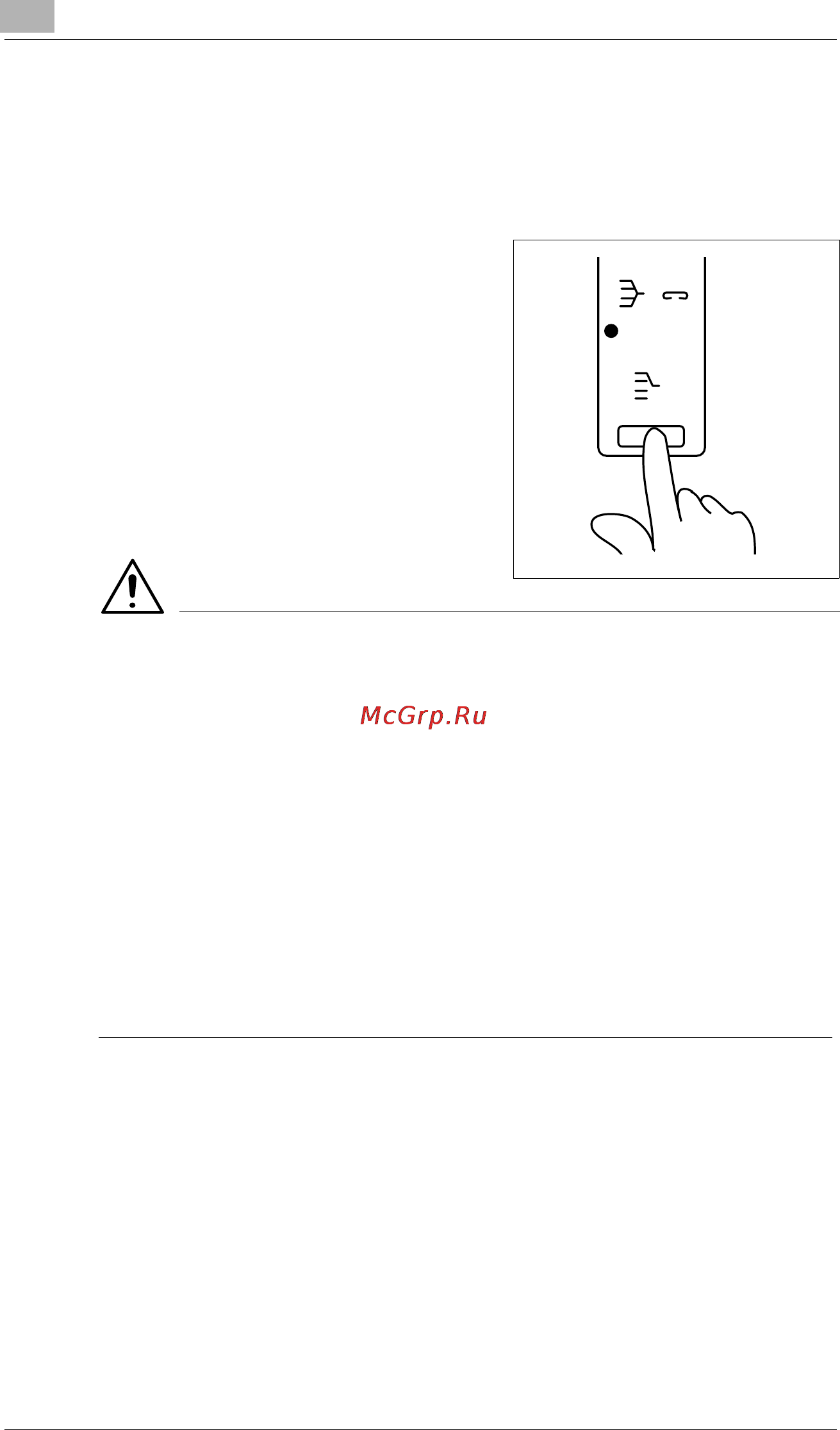

1 Press the Finishing Key to select

the desired mode.

 Each time the Key is pressed,

the newly selected finishing

mode indicator lights.

 If there are no lights, the Non-

Sort Mode is selected.

NOTES

Capacity of each Sorter Bin

Non-Sort Mode

è Sorter Bin Capacity

1st Bin Up to 50 sheets

2nd to 10th Bin Up to 25 sheets

Sort/Group/Sort-and-Staple Mode

è Sorter Bin Capacity

1st to 10th Bin Up to 25 sheets

Thick paper, translucent paper, and OHP transparencies cannot be

used for making copies in the Sort, Group, or Sort-and-Staple Mode.

ort

Staple

Group

Finishing
