When an Indicator Lights Up
5
EP2030 5-7

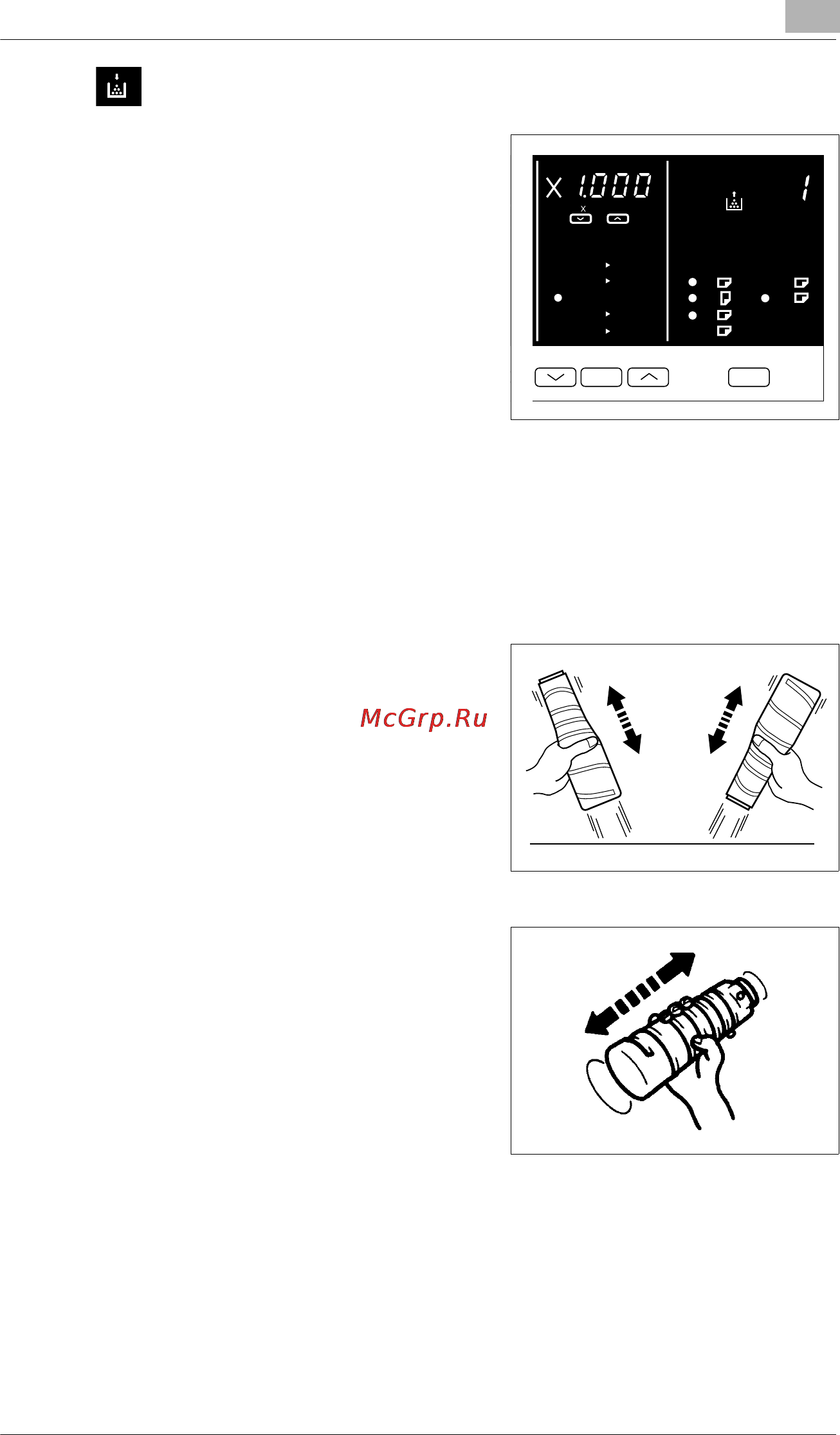

5.2 When the Add Toner Indicator Lights Up
The Add Toner Indicator lights up when
toner in the Toner Bottle is running out.
You can still make copies, but the
image density will become lighter and
lighter. It is recommended, therefore,
that you replace the Toner Bottle with a
new one as soon as possible.
Replacing the Toner Bottle
1 Open the Front Door.
Swing open the Toner Bottle Holder and pull out the old Toner Bottle.
2 Tap the new Toner Bottle on a hard
surface, such as a desk, several
times. Then, turm the Toner Bottle
over and tap it several times again
in the same manner.
3 Shake the new Toner Bottle well.
A3
A4
A4
B4
FLS.
Inch
Auto
a
rker
0.5~2.0
Auto
A4
Full Size
A3
Full Size Paper
B4 A3
B4 A4
A3 A4
A5
