When an Indicator Lights Up
5-8 EP2030

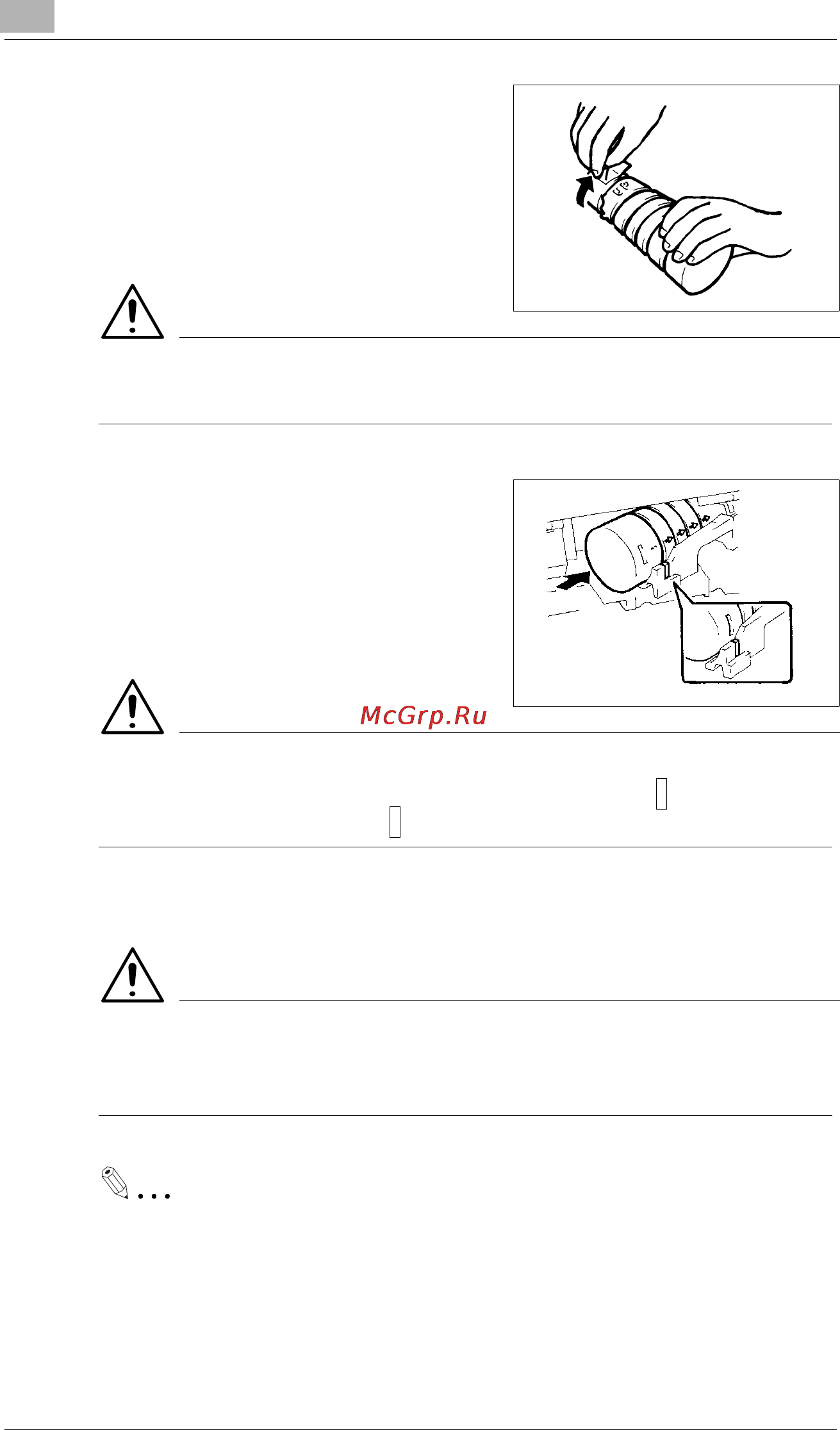

4 With the Seal on the Toner Bottle
facingup,slowlypeel offtheSealas
illustrated.
NOTE
è Be careful, some toner may puff out from the bottle.
5 Ensuring that the arrows (A)onthe
Toner Bottle are facing you, insert
the Bottle into position.
NOTE
è Insert the Bottle all the way into the copier until the marking on the
Bottle is aligned with the marking on the Toner Bottle Holder.
6 Swing the Toner Bottle Holder closed and close the Front Door.
NOTE
è Use ONLY the specified toner for this copier. Using any other toner
could result in image trouble.
Auxiliary Toner Replenisher Mode
Use the Auxiliary Toner Replenisher Mode if the image is light
immediately after the Toner Bottle has been replaced with a new one,
seepage4-3.
