Making Copies
3
EP2030 3-11
Using the Single Automatic Document Feeding Mode (SADF Mode)
This is the mode in which you insert your originals one by one into the
Automatic/Duplexing Document Feeder to make a copy or copies from it.
When you insert the original, the copier automatically starts the copy
cycle.
NOTES
Originals available for the SADF Mode:
è Type: Plain paper
Thickness: 35g/m
2
to 200g/m
2
(AFR-12), 35g/m
2
to 157g/m
2
(AF-5)
Size: A3toA5L
The following features cannot be selected in the SADF Mode:
è 2-sided original Ö 1-sided copy, 2-sided original Ö 2-sided copy
Dual Original Scanning Mode (2-in-1 Mode), Cover Mode

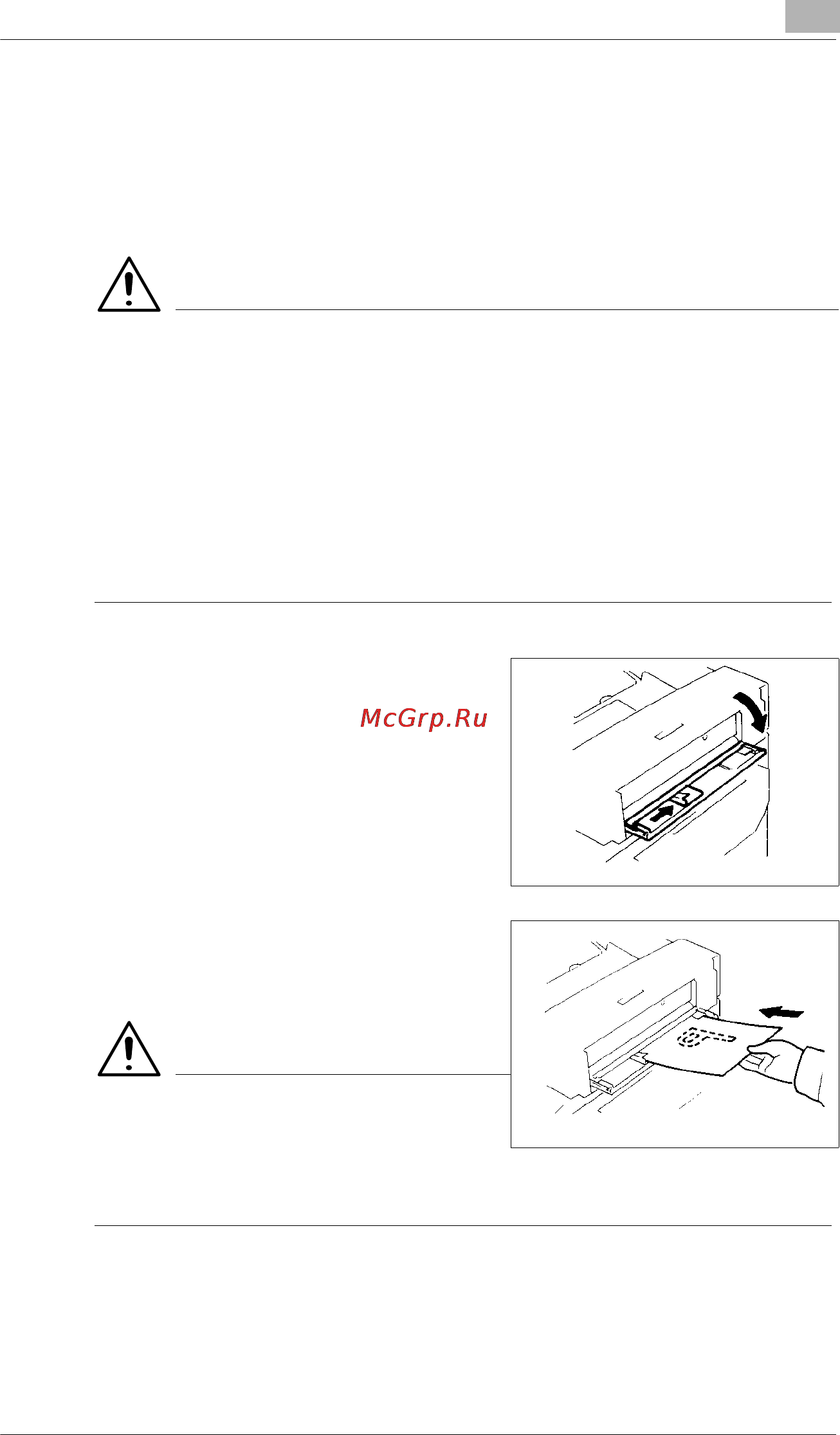

1 Open the Document FeedTray and
slide the Guide Plate to the size of
the original.
2 Make sure that the Start Key is lit
green and insert the original face
down into the Document Feed Tray.
NOTES
è Be sure to place one original at a
time.
è Be sure to correct any fold or curl in the original.
3 The original is automatically taken up and the copy cycle is started.
4 Making sure that the Start Key lights up green again, insert the next
original.
