Allgemeine Informationen über das Kopiersystem
2
EP2030 2-9

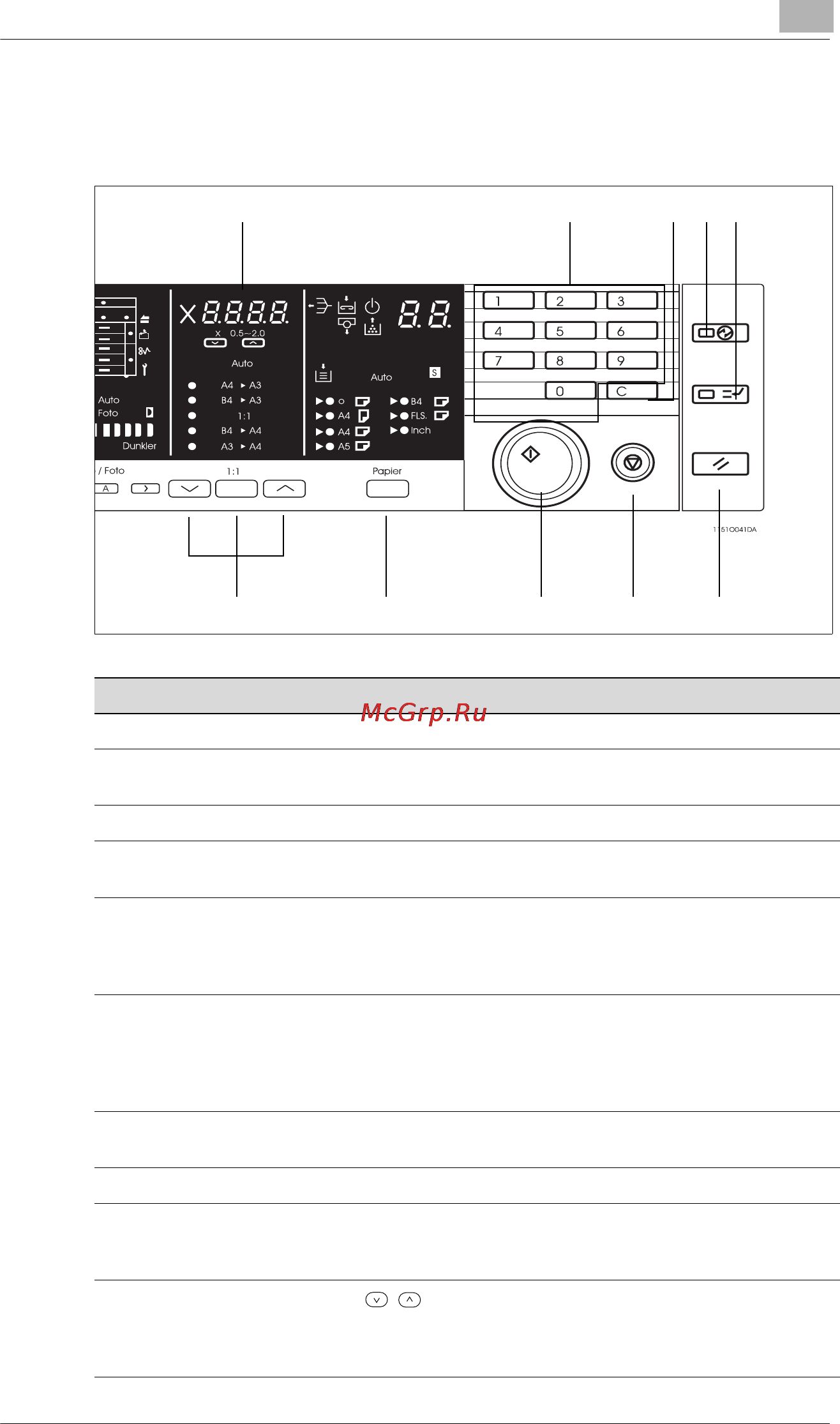

2.3 Tasten und Anzeigen im Bedienfeld
Bedienfeld
Pos. Bezeichnung Erklärung
1 Display siehe Seite 2-12.
2 Zifferntastatur Mit diesen Tasten können Sie die Kopienanzahl und andere
numerische Daten eingeben.
3 Löschtaste Drücken Sie, um die Kopienanzahl auf 1 zurückzusetzen.
4 Energiespartaste Drücken Sie diese, um die Energiesparfunktion zu aktivieren
(siehe Seite 2-17).
5 Unterbrechen-Taste Drücken Sie diese, um einen Kopiervorganges für einen an-
deren zu unterbrechen. Drücken Sie diese Taste erneut, um
zum vorhergehenden Kopiervorgang zurückzukehren
(siehe Seite 2-16).
6 Rücksetzungstaste Drücken Sie diese, um in die Grundstellung zu gelangen
(siehe Seite 2-15).
Eingaben, die vor dem Drücken der Unterbrechen-Taste
gemacht worden sind, und gespeicherte Eingaben wer-
den nicht gelöscht.
7 Stop-Taste Drücken Sie diese, um einen Mehrfachkopiervorgang zu
unterbrechen.
8 Start-Taste Drücken Sie diese, um einen Kopiervorgang zu starten.
9 Taste PAPIER Drücken Sie diese, um das gewünschte Papierformat oder
die automatische bzw. manuelle Papierwahl auszuwählen
(siehe Seite 3-16).
10 Reprofaktortasten : Drücken Sie diese, um einen festen Reprofaktor
auszuwählen (siehe Seite 3-19).
1:1: Drücken Sie diese, um eine Kopie im Originalformat
(100%) zu erstellen.
1
234
5
678910
