Konica Minolta EP2030 [140/151] Original glass

Miscellaneous

7-8 EP2030

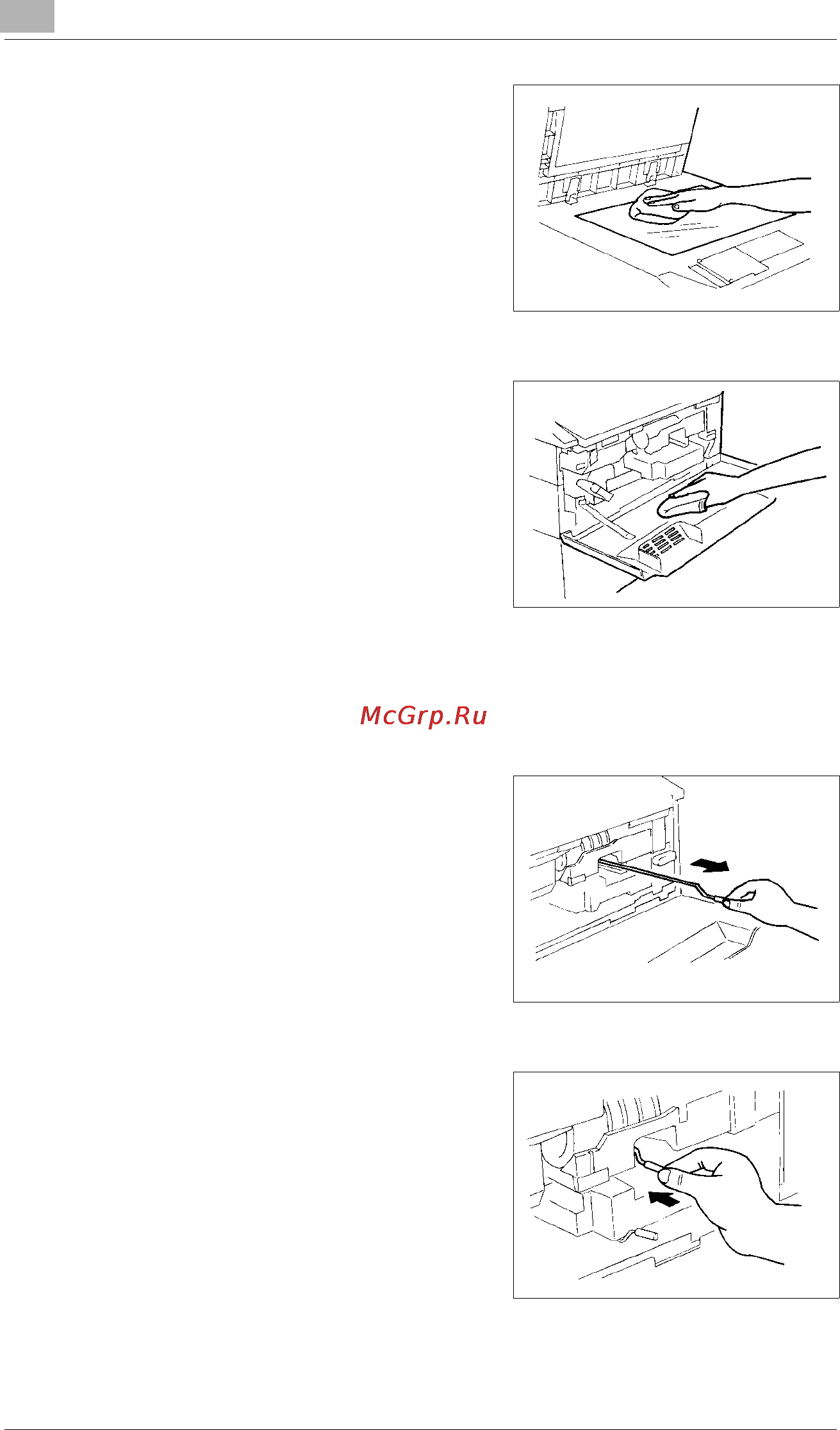

Original Glass

Wipe the surface of the Original Glass

clean with a soft, dry cloth.

Front Door

Wipe the inside of the Front Door clean

with a soft cloth.

Corona Units

1 Gently slide out the Upper Corona

Unit Cleaning Lever as far as it

goes.

2 Gently slide the Cleaning Lever

back into the original position.
