Allgemeine Informationen über das Kopiersystem
2
EP2030 2-3
2.2 Bezeichnung der Bauteile

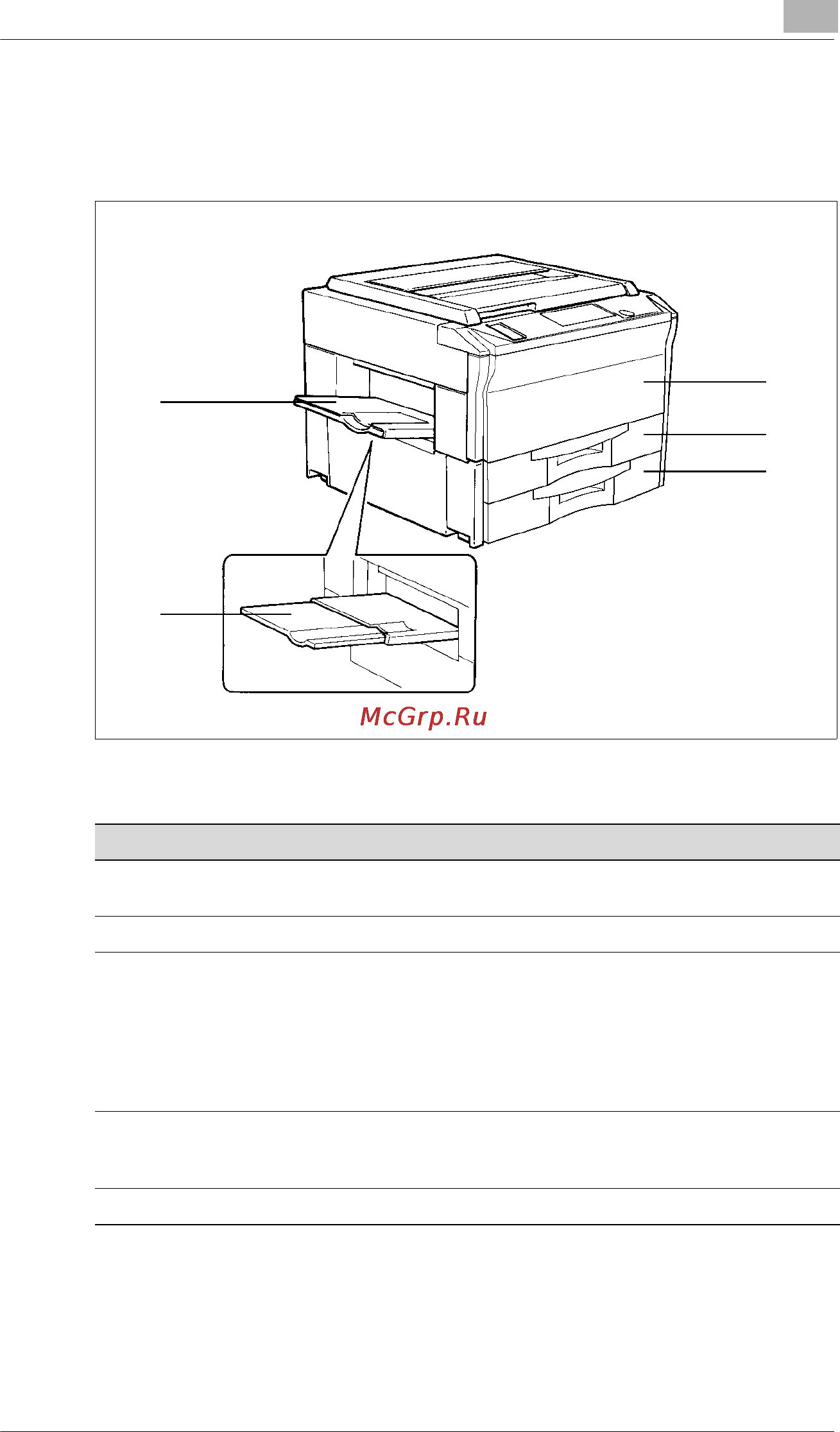

Außen am Kopierer
Pos. Bezeichnung Erklärung
1 Kopienablage-
erweiterung:
Werden Kopien auf großen Papierformaten (DIN A3)
erstellt, ziehen Sie diese heraus.
2 Kopienablage: Hier werden die erstellten Kopien abgelegt.
3 Frontklappe: Öffnen Sie diese nur, wenn:
die Tonerkartusche ausgetauscht werden muß
(siehe Seite 5-7)
gestautes Papier entfernt werden muß
(siehe Seite 5-15)
die Coronaeinheiten gereinigt werden müssen
(siehe Seite 7-8)
4 1. Papiermagazin: Faßt bis zu 250 Blatt Papier (siehe Seite 1).
Die Papierführungen sind verstellbar, so daß unter-
schiedliche Papierformate verwendet werden können.
5 2. Papiermagazin: Faßt bis zu 250 Blatt Papier (siehe Seite 5-3).
