2

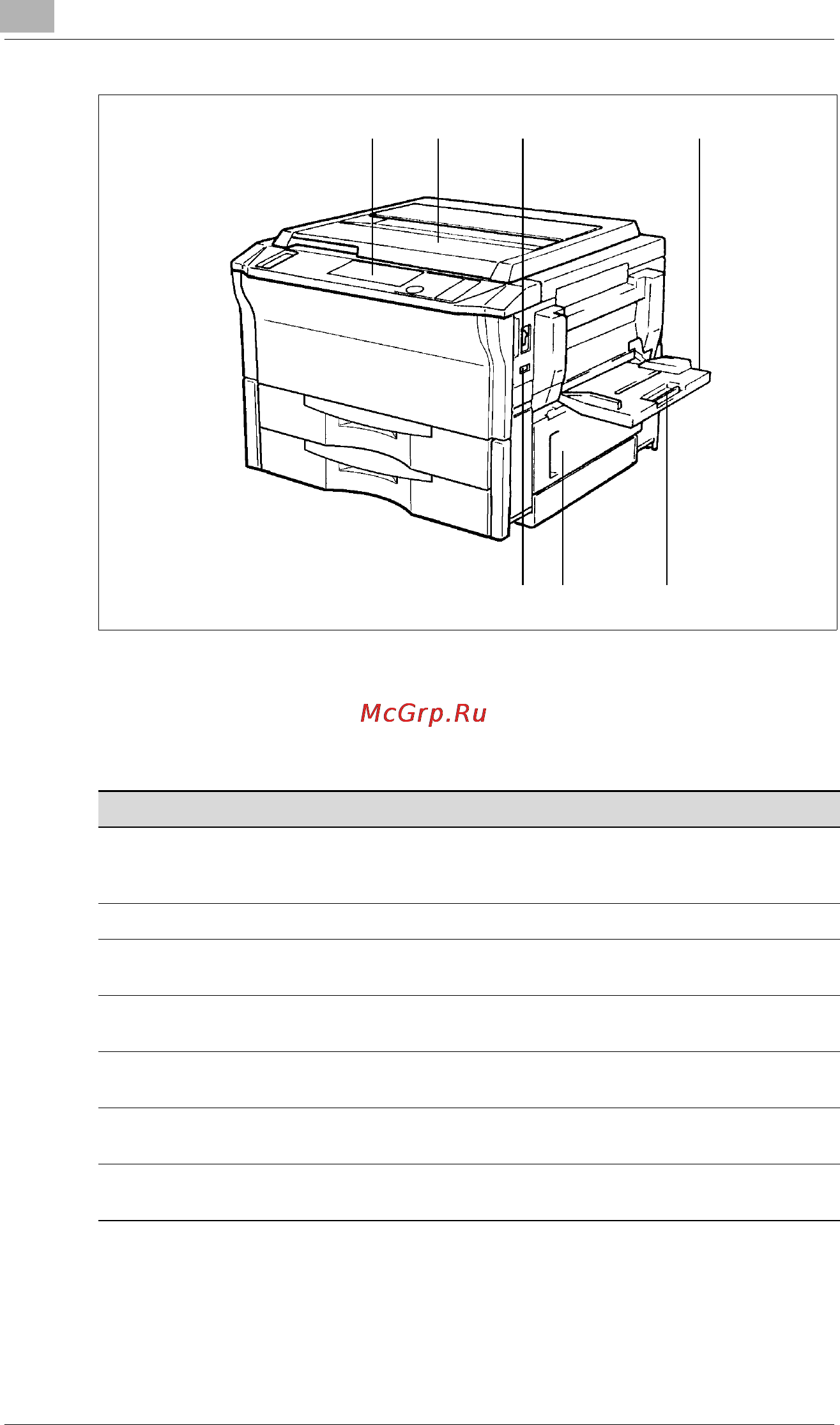

Allgemeine Informationen über das Kopiersystem
2-4 EP2030
Pos. Bezeichnung Erklärung
6 Bedienfeld: Enthält Tasten und Anzeigen für Programmeingaben
und zum Starten eines Kopiervorgangs
(siehe Seite 2-9).
7 Originalabdeckung: Deckt das Original auf dem Originalglas ab.
8 Netzschalter: Dient zum Ein- und Ausschalten des Kopierers
(siehe Seite 2-13).
9 Einzelblattanlage: Faßt bis zu 50 Blatt Kopiergut (Normalpapier) zum
Erstellen von Kopien (siehe Seite 3-13).
10 Verlängerung der
Einzelblattanlage:
Werden Kopien von großen Papierformaten erstellt,
ziehen Sie die Verlängerung heraus (siehe Seite 13).
11 Rechte Verkleidungs-
klappe:
Öffnen Sie diese, um einen Papierstau zu entfernen
(siehe Seite 5-15).
12 Gesamtkopienzähler: Zeigt den aktuellen Stand der bisher erstellten
Kopien an.
67 8 9
101112
