Making Copies
3
EP2030 3-17
Manual Selection
The copy paper size can be set manually according to your need.

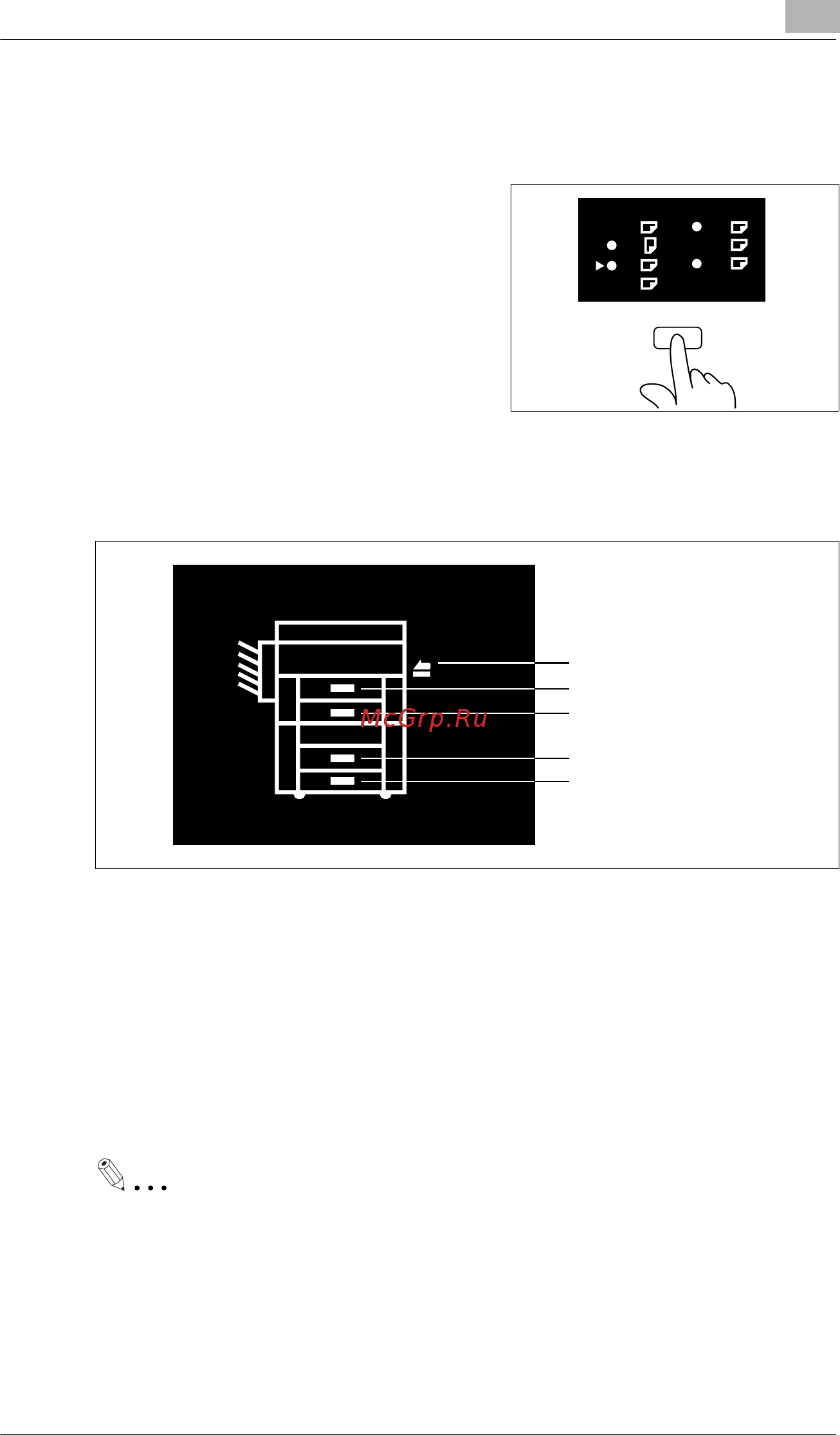

1 Press the PaperSelectKeyuntilthe
arrow indicates the copy paper size
of your choice.
Paper Source Indicator
è Each time the Paper Select Key is pressed, the Paper Source
Indicator cycles through the different source locations.
Auto Drawer Switching
If the Drawer currently selected for use runs out of paper and there is
another Drawer loaded with paper of the same size and in the same
direction,the copier automatically selects that second Drawer to continue
copying.
Useful Tip
This feature is a great advantage when you need to make a large
numberof copies on the same sizepaper.For example,youcanmake
up to 500 copies without interruption if the 1st and 2nd drawers are
loaded with paper of the same size and in the same direction.
A3
A4
A4
B4
B5
FLS.
Inch
Paper
A5
Multi Bypass Tray
1st Drawer
3rd Drawer (Option)
4th Drawer (Option)
2nd Drawer
