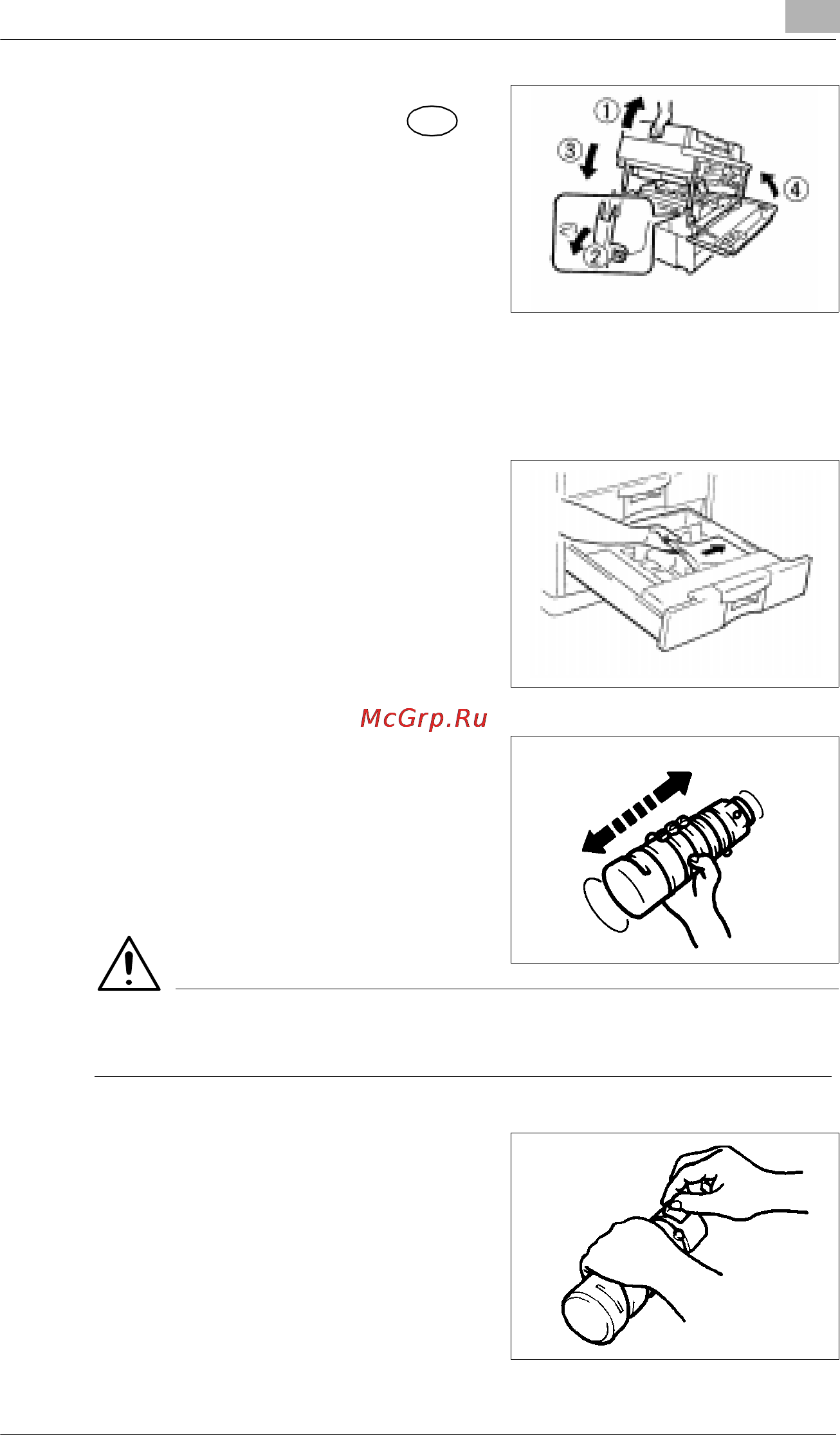

When an Indicator Lights Up

EP2030 5-35

9 Slightly lift up the Upper Half of the

copier and unlock Stopper .

Gently swing down and lock the

Upper Half of the copier. Then,

close the Front Door.

Charging the Copier with Starter and Toner

1 SwingouttheBottleHolder.

2 Holding the Starter Bottle so that its

tab is on the upper side, shake it

well.

NOTE

è Make sure that “MT Starter 104” is printed on the Starter Bottle.

3 Peel off the tape from the Starter

Bottle.
