When an Indicator Lights Up

5-34 EP2030

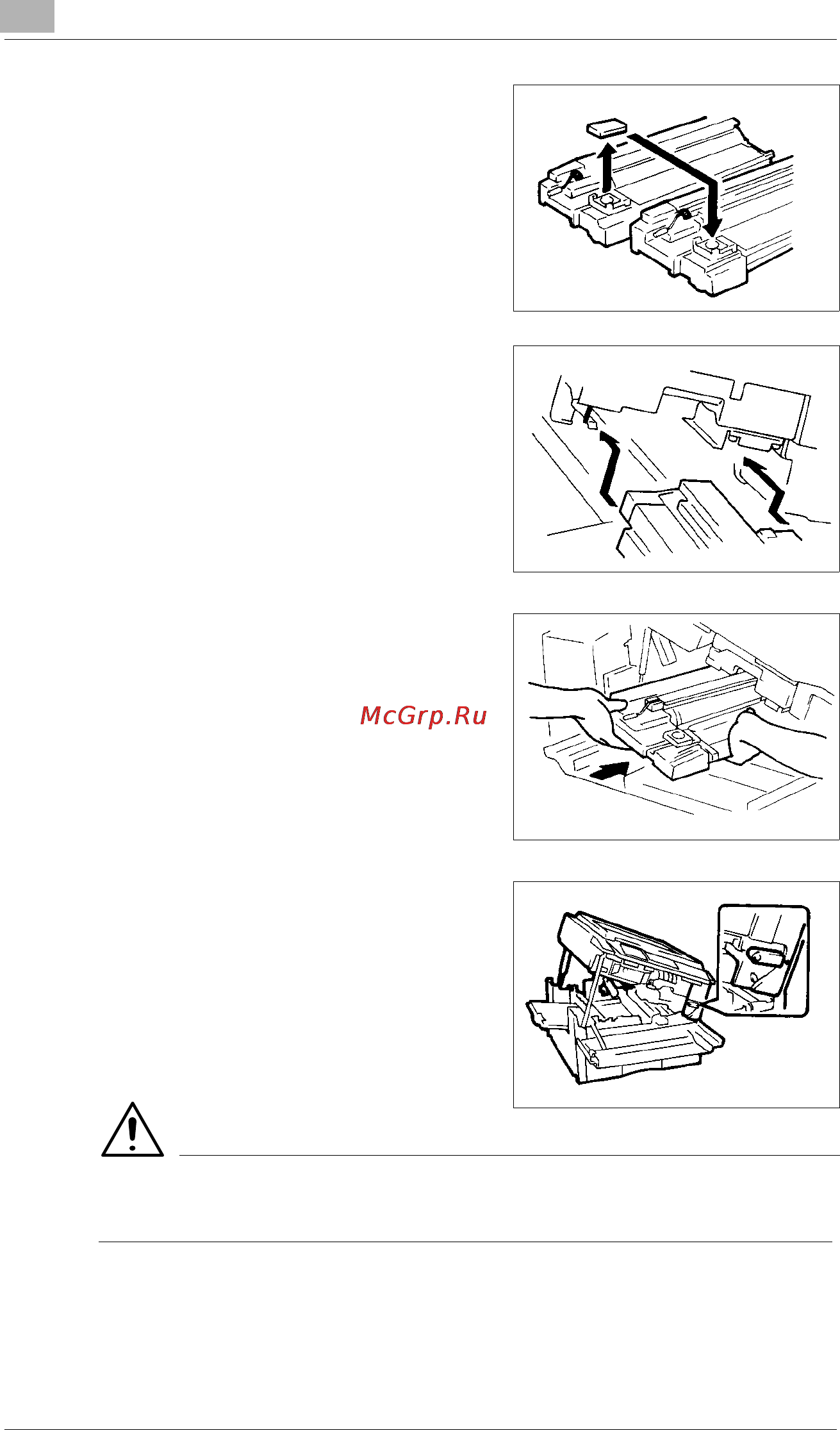

5 Remove the Cap from the I. U. and

re-fit it to the used I. U. as shown in

the illustration.

6 Align the I. U. with the Rails in the

copier.

7 Slide the I. U. all the way into the

copier.

8 Be sure to push the I. U. into the

locked position until a click is heard.

Then,checkthe positionofthe Lock

Release Lever, as shown in the

illustration.

NOTE

è An improperly installed I. U. could be a cause of copier malfunction.
