5
When an Indicator Lights Up
5-36 EP2030

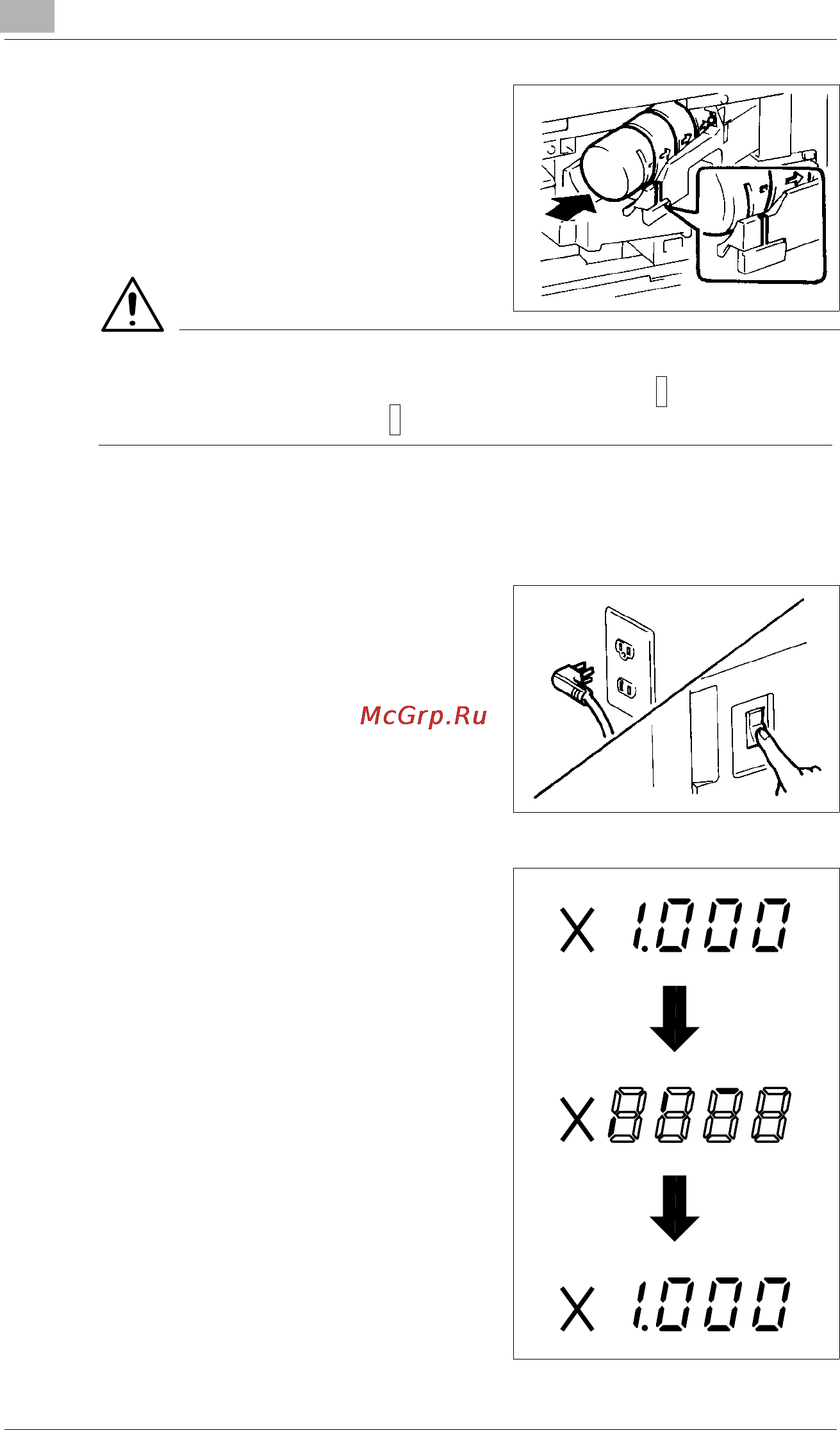

4 Align the A markings on the Starter
Bottle with the upper side of the
Bottle Holder and slide the Bottle
into position.
NOTE
è Insert the Bottle all the way into the copier until the marking on the
Bottle is aligned with the marking on the Bottle Holder.
5 Then, swing in the Bottle Holder until it locks into position. Close the
Front Door.
6 Plug the Power Cord into the wall
outlet and turn ON the Power
Switch. This will cause the wait
indicator to be shown on the control
panel.
7 The copier automatically starts the
charging cycle for approximately 5
minutes.
è During this cycle, do not open
the Front Door.
During this cycle, six segments of
theonesdigitLEDonthe
Magnification Ratio Indicator
forminga “0” lightupand go outone
after another, indicating that the
copier is being charged with starter.
When the copier has been
completelychargedwithStarter,the
indication on the Magnification
Ratio Indicator changes to “1.000”
and the cycle stops.
