Making Copies

EP2030 3-3

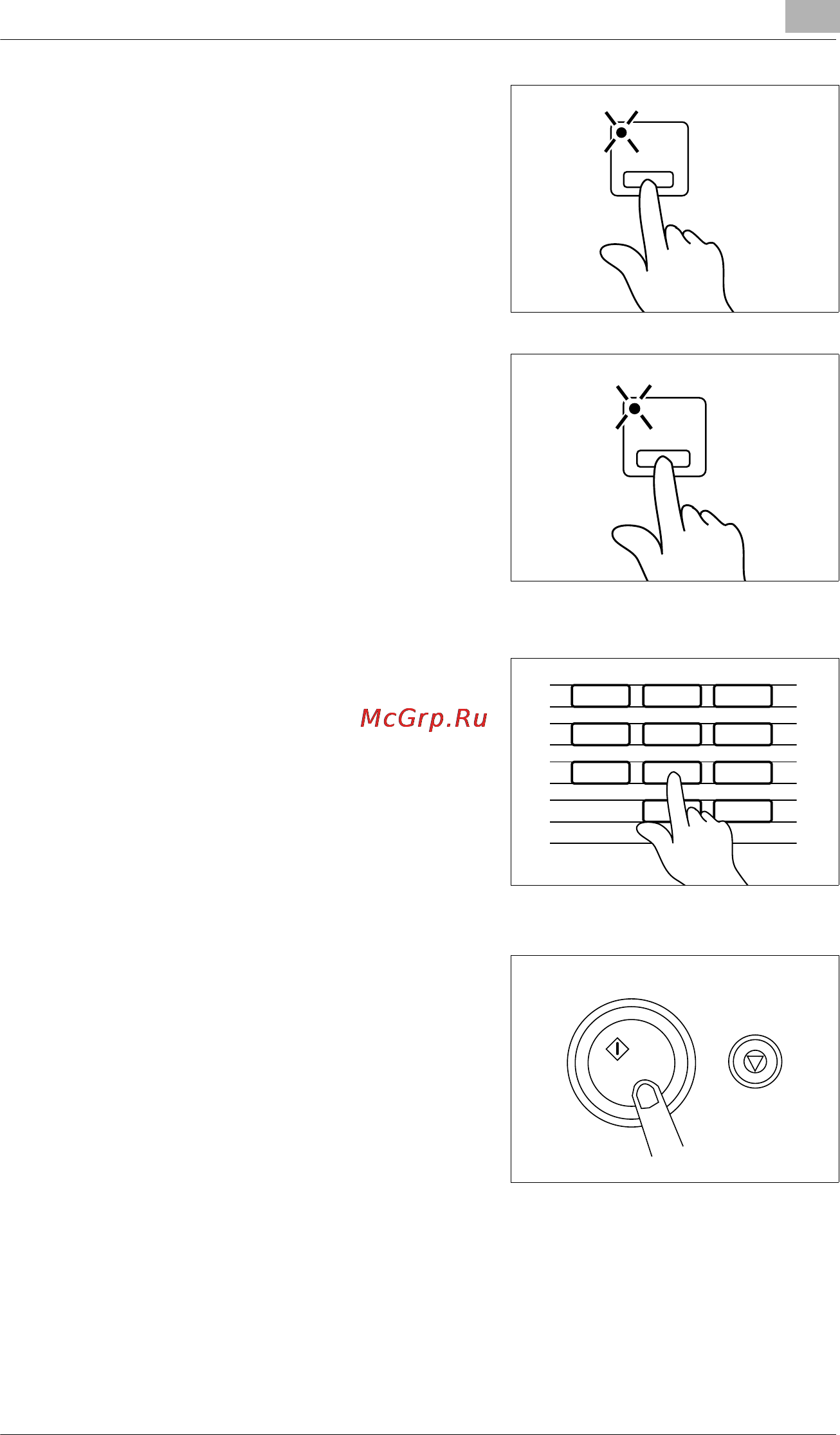

7 To make a file margin on the copy

è Press the File Margin Key to set

the copier into the File Margin

Mode, see page 3-35.

8 To make a cover copy

è Press the Cover Key to set the

copier into the Cover Mode,

seepage3-37.

9 Setting the number of copies.

è Set the desired number of

copiestobemadeusingtheKey

Pad.

è If you have entered an incorrect

number, press the Clear Key,

then enter the correct number.

10Starting the copy cycle.

è Press the Start Key.

è To stop the copy cycle, press

the Stop Key.

Margin

Cover

123

456

789
